ATTiny85 Development Board for Arduino

ATTiny85 Board for Arduino Projects

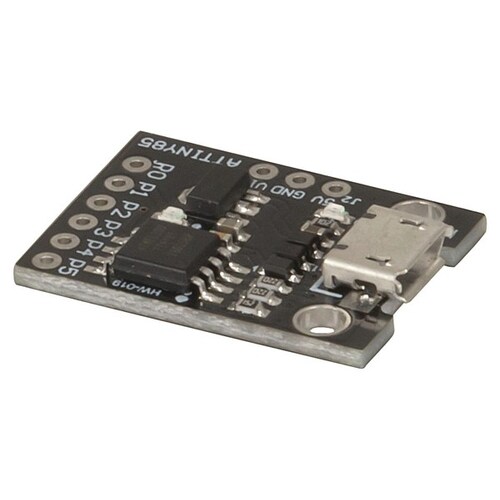

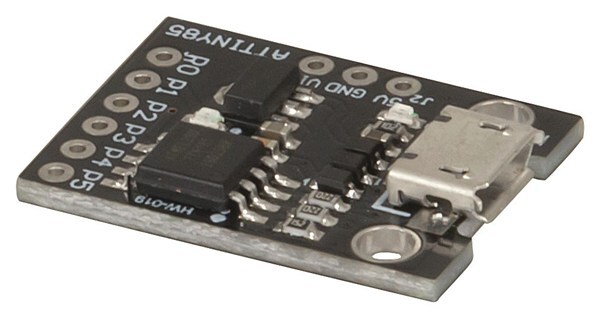

This tiny development board features an ATtiny85 8-bit microcontroller that you can program using the Arduino IDE to make projects that don’t need all the performance of larger development boards such as the Arduino Nano or UNO. It has an onboard micro USB socket for programming and power, and 6 x I/O connections. Power can also be provided directly via 5V, or by using the integrated 5V voltage regulator from a 7-35VDC supply (12V or less recommended).

Features:

• Integrated 5V regulator
• Low power
• 8k flash memory (about 6k after bootloader)

Specifications

Width : 24mm

Height : 5mm

Depth : 18mm

USB Voltage Input : 5V, 5V

USB Item Connection : Micro USB

Packaged Volume : 0.04l

Packaged Weight : 0.01kg

Packaged Length : 10.8cm

Packaged Width : 7cm

Packaged Height : 0.5cm

Microcontroller : ATtiny85 8-bit microcontroller

Program memory : 8KB

Board Inputs : 6

Board Outputs : 6

Required Supply Voltage : 7V, 35V
