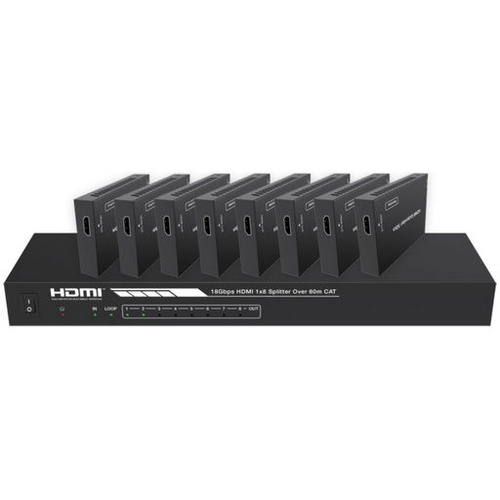

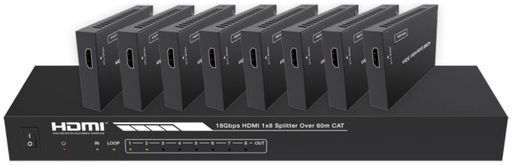

8 Way 4K HDMI Extender Over CAT6 with Audio Extractor

HDMI 2.0 Extender Over CAT6 with Audio Extractor

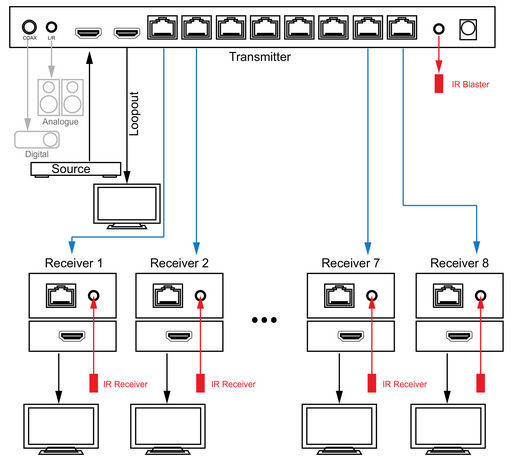

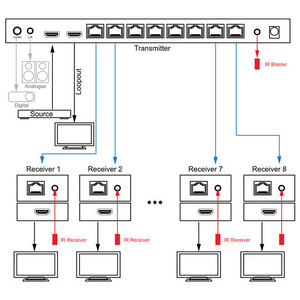

The 18Gbps HDMI 1x8 Splitter Extender kit includes one transmitter and eight receivers, enabling a single HDMI source to be distributed to eight displays with resolutions up to 4K@60Hz (4:4:4). HDMI signals can be extended up to 35 m at 4K@60Hz or 50 m at 4K@30Hz over a single CAT6 cable. The transmitter features a built-in HDMI loop output for local monitoring. The system also supports one-way IR pass-through, one-way PoC, audio extraction, and advanced EDID management for enhanced compatibility and installation flexibility.




• Includes one HDMI transmitter and 8 receivers.
• HDMI 2.0b and HDCP 2.2 compliant.
• HDMI local loop out on the transmitter.
• Support 18Gbps video bandwidth.
• Support HDR, HDR10+, HLG, Dolby Vision.
• Up to 7.1CH HD audio pass-through.
• Support digital and analog audio extraction.
• Transmission distance up to 35m (4K@60) over a single Cat6 cable.
• Supports one-way IR control pass-through.
• Support one-way PoC function (only from transmitter to receiver).
• Advanced EDID management through a dip switch.
• Includes power supply, IR blaster (1.5M) and 4x IR receiver (1.5M).
• Dimensions: 175x100x25mm (Tx), 88x61x18mm (Rx).
