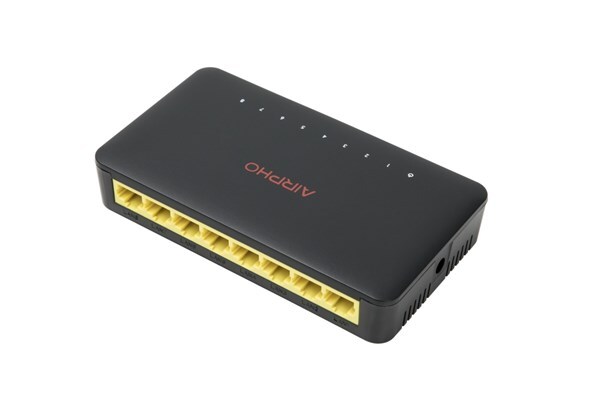

8 Port 10/100Mbps Ethernet Switch

8 Port Ethernet Switch

Provides 8 additional ports to an internet router, firewall, or a standalone network. All ports support 10/100Mbps and feature auto-MDI/MDIX, which means it will work fine with both straight-through and crossover network cables. Plug-and-play installation, and low power consumption from a compact unit.

Features:

- Auto-MDI/MDIX port

- MAC address auto-learning and auto-aging

- Half and Full Duplex


Specifications:

MAC Address Table: 1K entries per device

Protocol: CSMA/CD

Forwarding performance: 1.2Mpps

Backplane Bandwidth: 1.6Gbps

Transmission Method: Store-and-Forward

Specifications

LAN Standard : 100 Base T

LAN Port Type : RJ45

Number of LAN Ports : 8 ports

Width : 139mm

Height : 25mm

Depth : 76mm

Weight : 155g

PSU Powers : Main Product

DC Plugpack Voltage : 5V, 0V

DC Current Draw : 500mA, 0mA

Suitable PSU Included : true

Packaged Volume : 1.19l

Packaged Weight : 0.23kg

Packaged Length : 14.7cm

Packaged Width : 8.8cm

Packaged Height : 9.2cm

Type of Hardware : Switch

Speed of Transmission : 100Mb/s

Communication standards : IEEE 802.3, IEEE 802.3u, IEEE 802.3x
