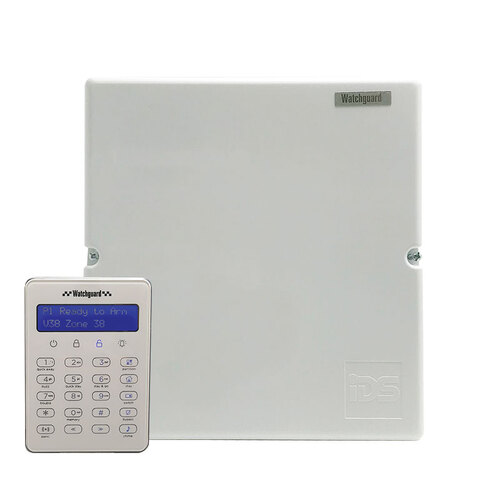

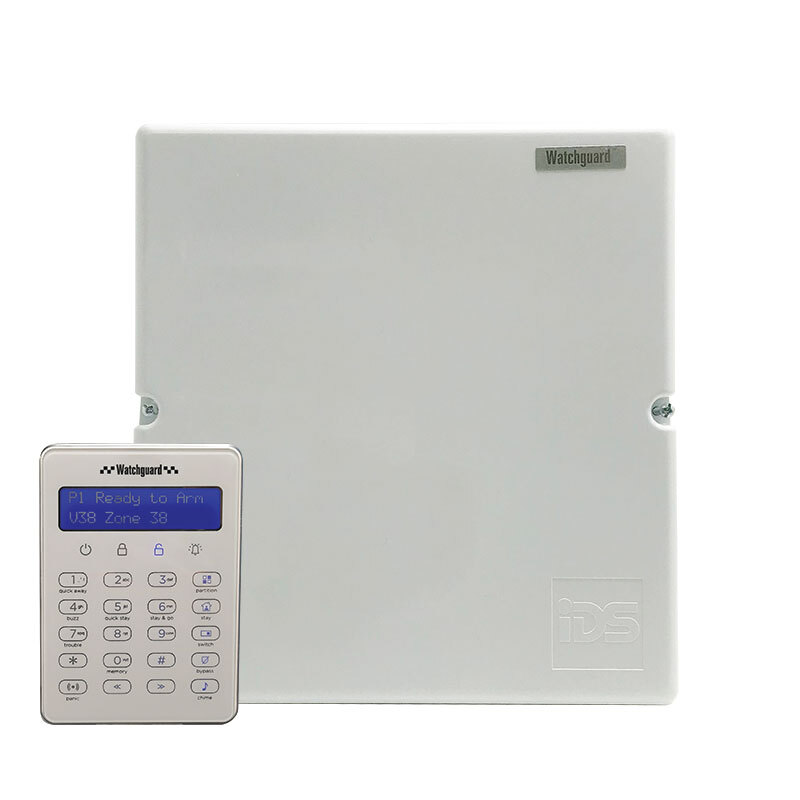

8/64 Zone Alarm Panel and Keypad WGAP864

Expandable Professional Grade Wired Alarm System

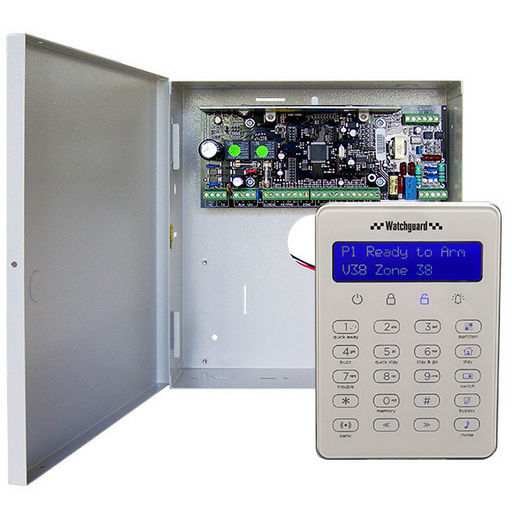

Wall case with main board. Includes keypad (Colour specified). Sensors and expansion accessories sold separate. Requires power supply (16Vac 1.5A) and optional backup battery.

The WGAP864 is a versatile, microprocessor-based, fully featured 8 Zone alarm panel, which is expandable to up to 64 zones. The alarm panel provides immediate notification of burglary, fire, medical & panic conditions. There is a dedicated panic zone, monitored siren output, auxiliary power outputs and five programmable outputs that may be programmed to perform various trigger/switching functions. Program via included keypad or use your PC via USB programming cable (sold separately). An expandable system to customise for your dedicated application with wired or wireless sensors, plus WiFi and remote access via the internet, all optional with the accessories available.


• 8 programmable, end of line supervised zone inputs & 8 alarm partitions
• 5 programmable outputs on alarm panel
• Programmable loop response time
• Auto arm/disarm capability per partition & by day
• Program to arm/disarm at pre-determined times
• Optional tamper reporting per zone using double end of line resistors
• EEPROM memory retains all data in the event of a total power failure
• 3 quick arm modes: Away/Stay with no Exit delay/Stay with exit delay
• 32 user codes expandable to 128
• Log capable of 500 events expandable to 1000
• False alarm reduction features
• Includes metal security case
• Battery backup circuit (Battery extra)









•
•
•
•
•
• Additional Accessories:
  Expand the original WGAP864 to wireless 16 zone by simply plugging the 16 Channel Wireless Receiver directly onto the main panel.
  2 Channel Remote Control Receiver for WGAP864
