6V/12V 5A PWM Waterproof Solar Charge Controller

6V/12V PWM solar charge controller

SKU: SP0152

RRP $69.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $33.20 ea
Buy 11 to 20: Pay $29.88 ea
Buy 21 to 100: Pay $26.89 ea

Calculate Shipping

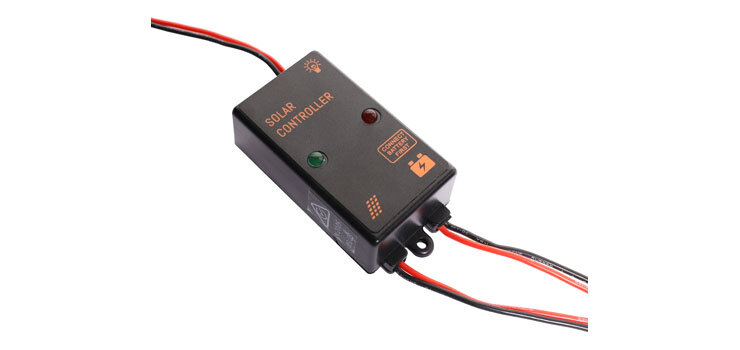

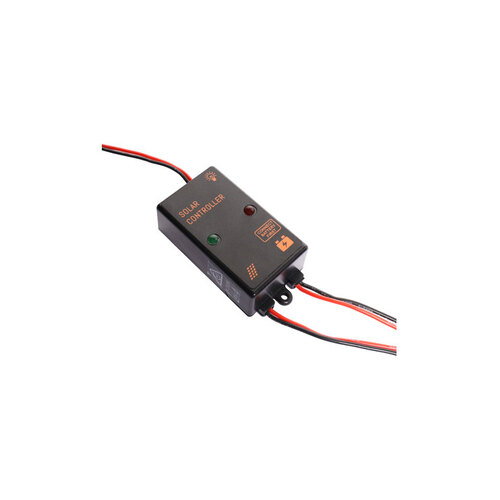

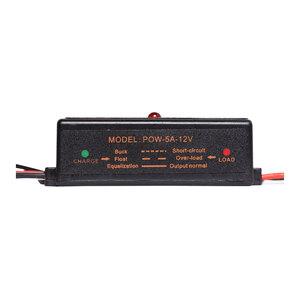

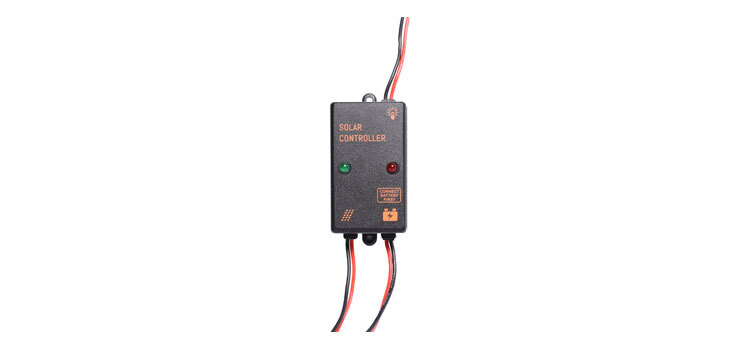

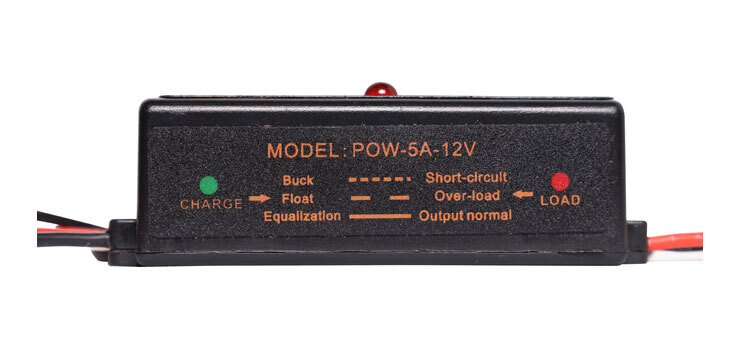

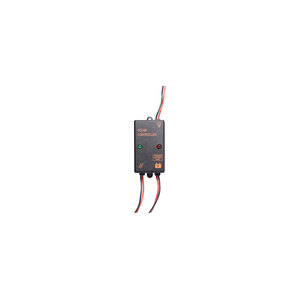

This compact PWM solar charge controller is ideal for 6V & 12V battery systems and provides a max charge current up to 5A (suits solar panels up to 60W). The entire PCB assembly is housed in an epoxy filled housing measuring just 80Wx37Dx22Hmm. The internal circuitry provides protection against several conditions which can potentially damage your battery or the controller itself. These include over charge, over discharge, over current, reverse polarity and short circuits (when used with a 5A protection fuse).


  • Waterproof IP67
  • Rated Voltage:DC 6V/12V
  • Max input VOC: 11V(6V) / 22V(12V)
  • Max Current: 5A
  • Voltage of solar panels: 30W (5A,6V)/60W (5A,12v)
  • Float: 13.8V
  • Charge reconnect: 6.5V (6V) / 13V (12V)
  • Discharge stop: 5.6V(6V) / 11.2V(12V)
  • Discharge reconnect: 6.3V(6V) / 12.6V(12V)
  • Working Temp:-10- +40°
  • Weight:80g
  • Dimensions: 8L x 3.7W x 2.2Hcm

    *Specifications are subject to change without notice.

SKU SP0152
Barcode # 9321758238752
Brand Aus Electronics Direct
Shipping Weight 0.3000kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.000500000m3
Unit Of Measure ea
Assembled Length 0.100m
Assembled Height 0.050m
Assembled Width 0.100m
