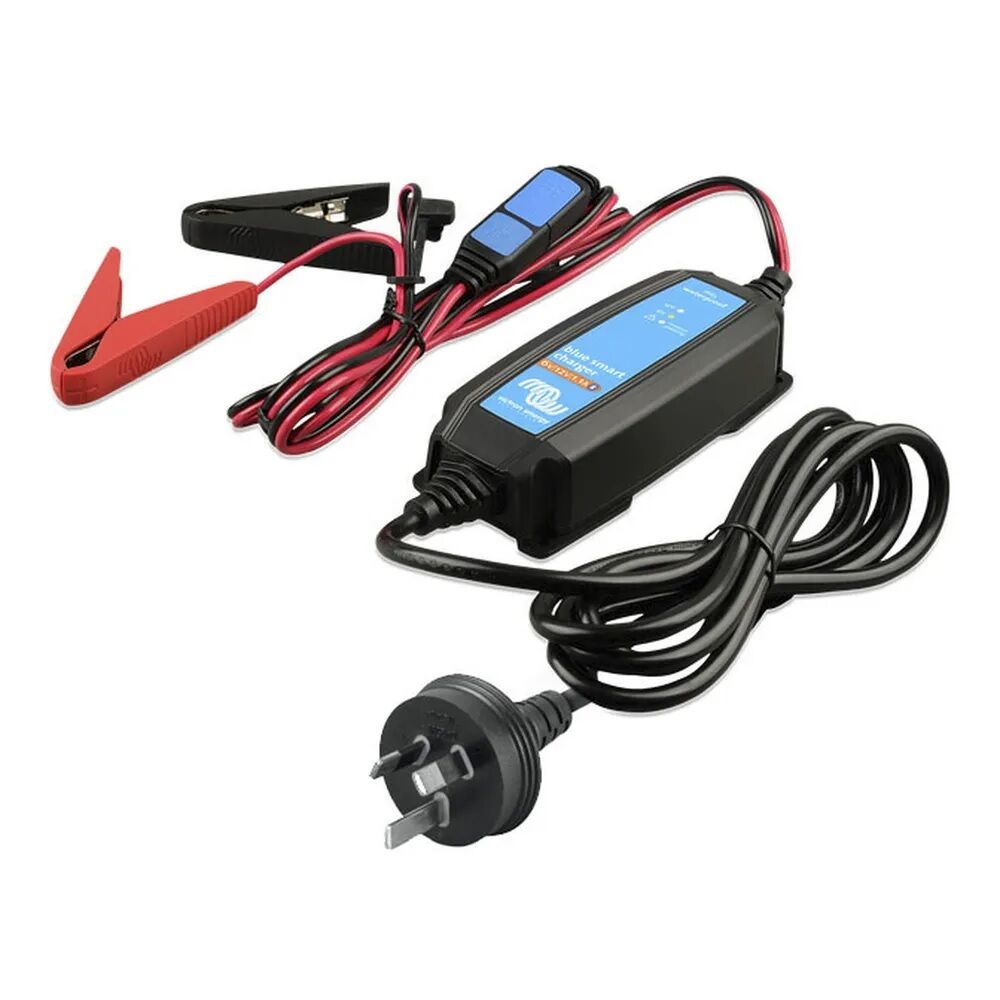

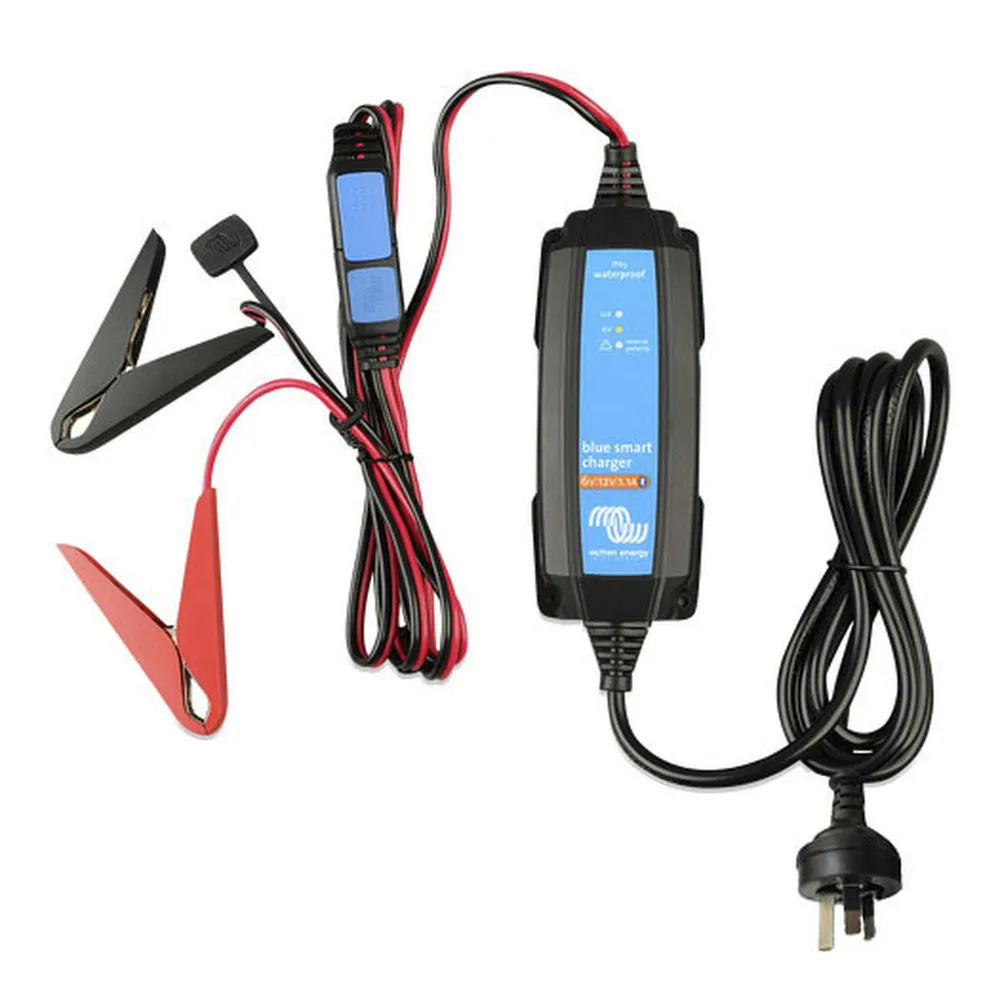

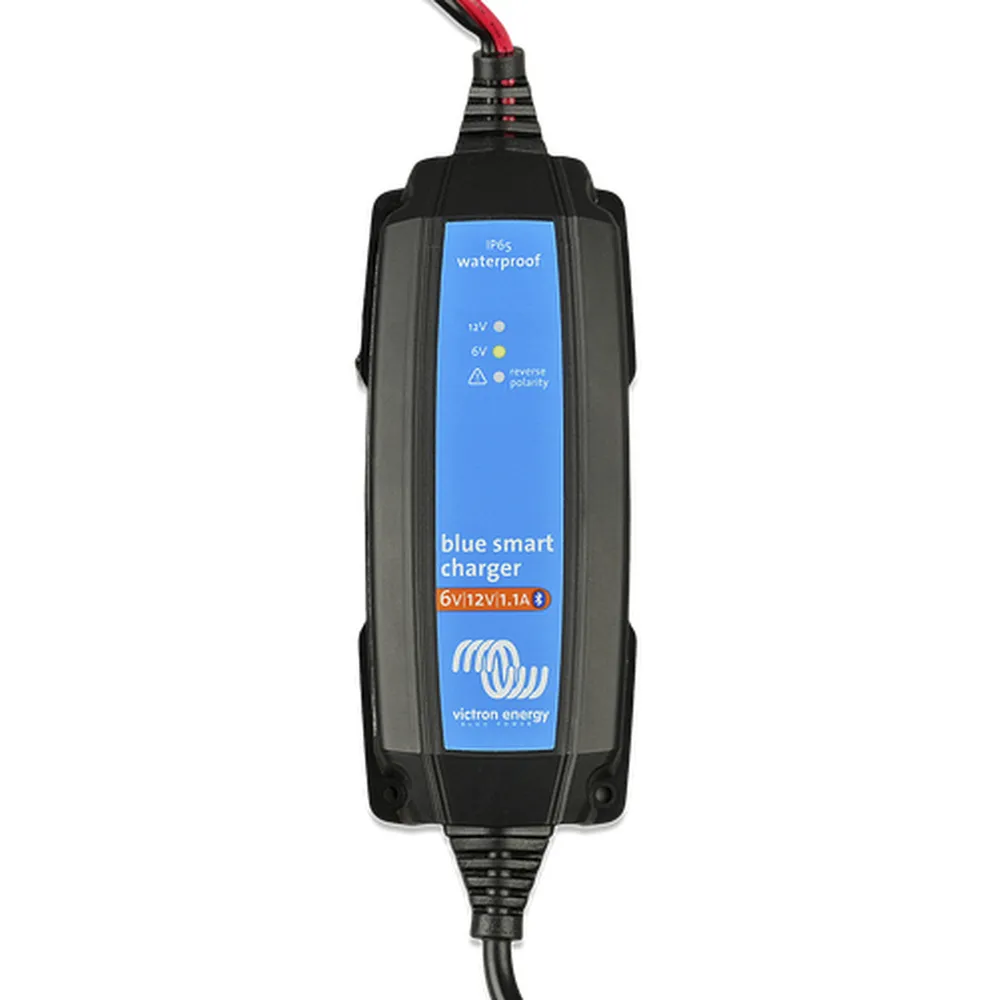

6/12VDC 1A IP65 Bluetooth® Intelligent Lead Acid and Lithium Battery Charger
Great Charger & Mainatiner for 6/12V Automotive battery
SKU: PS3558
6/12VDC 1A IP65 Bluetooth® Intelligent Lead Acid and Lithium Battery Charger
Great Charger & Mainatiner for 6/12V Automotive battery
Thanks to its seven-step charging algorithm, this professional smart charger maintains the health of your 12V lead-acid or Lithium batteries, and helps provide better performance and a longer battery life. A force-fed low current function can also recover some deeply-discharged ‘dead’ lead-acid batteries, which can save you the expense of buying a replacement. Built-in LEDs and one-button operation sets and shows the charging status and battery condition. Alternatively, the active charge status and operation can be set and checked in real-time via a Bluetooth® enabled Smartphone, tablet or laptop. A graphical view and historical usage statistics can be viewed for the past 40 charge cycles, and expert settings can be set for optimum charging. The charger’s IP65 splash and dustproof rating makes it ideal for use in workshops, and safety features protect against reverse polarity, short circuits, and over-temperature. Supplied with 1.5m long lead with protected battery clamps or M6 eye terminals for temporary or permanent applications. In addition, the charger can also double as a power supply to power 12V devices in the workshop with or without a battery connected. Mains powered.
Charging modes:
1. Test/Charge
2. Bulk
3. Absorption
4. Recondition
5. Float
6. Storage
7. Refresh
FEATURES
- Supports Lead-acid and LiFePO4 12V batteries
- IP65 rated
- Bluetooth® connectivity
- Android, iOS/Mac® compatible App
- High efficiency & Silent Operation
SPECIFICATIONS
Charge Voltage:
- Absorption: Normal: 7,2 V | 14,4 V High: 7,35 V | 14,7 V Li-ion: 7,1 V | 14,2 V
- Float: Normal: 6,9 V | 13,8 V High: 6,9 V | 13,8 V Li-ion: Disabled
- Storage: Normal: 6,6 V | 13,2 V High: 6,6 V | 13,2 V Li-ion: 6,75 V | 13,5 V
Battery Charger
Type of Batteries
AGM,Deep Cycle Gel Cell,Sealed Lead Acid (SLA)
Charger Output Voltage
7.2V,14.4V
Controller Type
Multi-Stage
Connection Type
M6/M8 Eyelet,Alligator Clips
Charger Output Current
1.1 A
Additional Functions
Short Circuit Protection,Overload Protection,Safety Timer Protection
Battery Capacity Range Up to
30.0 Ah
Cable Length
Output Cable Length: 1.5m,Mains Cable Length: 1.5m
Mains powered
Mains Max Current
0.6 A
Mains Voltage Range
220.0V,250.0V
Frequency
50.0Hz-50.0Hz
Ingress Protection Rating
Dust/Particle Ingress Protection
6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection
5 - Water jets
IP Rating
IP65
Product Dimensions
Length
182.0 mm
Width
81.0 mm
Height
45.0 mm
Weight
900.0 g
Packaged Dimensions
Packaged Dimensions
28.0cm(Length) x 19.0cm(Width) x 5.5cm(Height)
| SKU | PS3558 |
| Barcode # | |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.050m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.001875000m3 |
| Unit Of Measure | ea |
