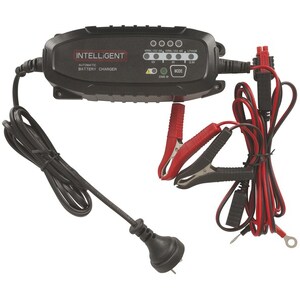

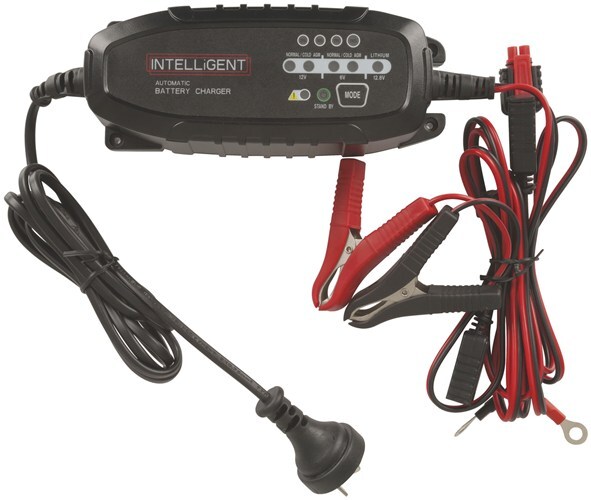

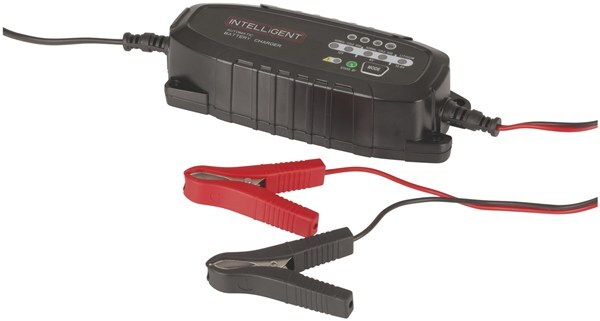

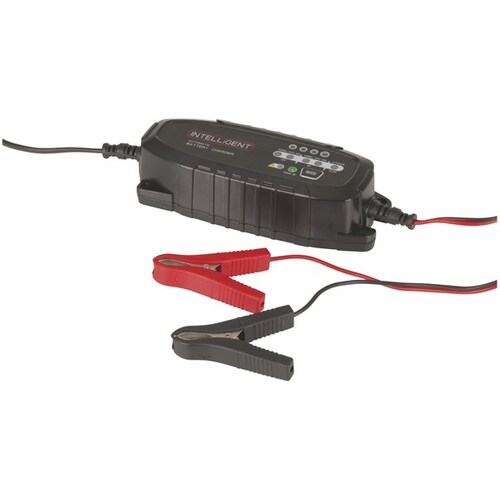

6/12VDC 1.5A 8-Step Intelligent Lead Acid & Lithium Battery Charger

Great Charger & Mainatiner for 6/12V Automotive battery

SKU: PS3552

RRP $99.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $47.45 ea
Buy 11 to 20: Pay $45.07 ea
Buy 21 to 100: Pay $40.57 ea

6/12VDC 1.5A 8-Step Intelligent Lead Acid & Lithium Battery Charger

Great Charger & Mainatiner for 6/12V Automotive battery

An intelligent battery charger to keep your batteries in peak working order. Suitable for 6V or 12V Lead Acid batteries between 4Ah - 50Ah, or 12.8V LiFeP04 from 3Ah to 25Ah. The eight charging modes keep batteries fully charged, and can also recover slightly sulfated batteries to increase battery life. Five RGB LEDs on the front panel indicate the state of charge and a push button enables you to select the appropriate charge mode. The housing can be permanently mounted using the integrated mounting holes and the IP65 weatherproof rating means it can handle a little rain. If you happen to live in areas with a cold climate, the charger can be set to provide a more effective charge in temperatures below 10°C. The charger is mains powered, terminated to battery clips on a 1.8m lead, and features short circuit, overload, incorrect polarity, reverse battery, and safety timer protection.

Battery Support:

• Sealed, Gel, AGM or Flooded Lead (6/12V, 4Ah - 50Ah)

• LiFePO4 (6.4V/12.8V, 3Ah - 25Ah) - not guaranteed to work with all brands of 6V LiFePO4 Batteries. Confirmed it is compatible with Jaycar SB2200 6.4V 4.5Ah Lithium Deep Cycle Battery.



- 6V/12V dual function charger

- Suitable for Lead Acid and LiFePO4 batteries

- 8 state intelligent charging modes

- Can recover slightly sulfated batteries

Charging Voltage:

  Lead Acid: 7.4V/14.7V DC

  Cold/AGM: 7.4V/14.7V DC

  LiFePO4: 7.25VDC/2cells, 14.5VDC/4 cells


IP Rating : IP65
Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection : 5 - Water jets
Length : 175mm
Width : 70mm
Height : 50mm
Weight : 640g
Mains Voltage Range : 240V
Frequency : 50Hz
Rated for AU Mains : true
Mains Max Current : 0.6A
Packaged Volume : 1.9l
Packaged Weight : 0.61kg
Packaged Length : 24.8cm
Packaged Width : 9.7cm
Packaged Height : 7.9cm
Type of Batteries : Lead AcidLithium Ferrous Phosphate (LiFePO4)
Charger Output Voltage : 7.4V, 14.7V
Charger Output Current : 1500mA
Reverse Polarity Protection : true
Additional Functions : Safety Timer, Short Circuit and Overload Protection
Dimensions details : Charge Cable
Length : 2m
Dimension details : Mains Cable
Length : 1.8m
SKU PS3552
Barcode # 9351634063697
Shipping Weight 0.4000kg
Shipping Width 0.250m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.001875000m3
Unit Of Measure ea
