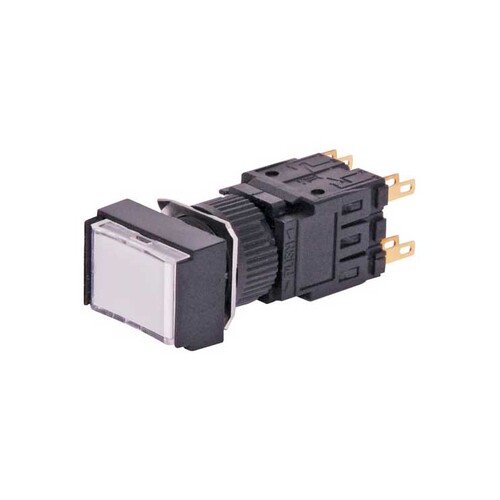

4PST Alternate White Illuminated Solder Tail Pushbutton Switch

Push Button Switches for your Electronic Projects!

Momentary type illuminated push-button switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cover. Globe not included.

Terminal connections disconnect from the panel switch to allow switch to be mounted in a single 16mm round hole (15.8mm flat sides).

SPECIFICATIONS:

• Switch Type: Momentary
• Body Material: High grade thermoplastic
• Operating Travel: 3.0mm
• Actuating Force: 150gm
• Mech. Lifetime: 1M operations min
• Electrical Life: 100,000 operations min
• Electrical Rating: 250V AC 4A
• Dielectric Strength: 1kV AC, 50Hz, 1 min
• Insulation Resistance: 100MΩ min @ 500V DC
• Panel Thickness: 7mm maximum
• Mounting Hole Diameter: 16mmØ
