4K HDMI 4 Input 4 Output Matrix Switcher Splitter with EDID

4 x 4 HDMI True Matrix with EDID and HDCP 2.2

SKU: AA6172


$149.00
RRP $299.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $134.10 ea
Buy 11 to 20: Pay $120.69 ea
Buy 21 to 100: Pay $108.62 ea




Calculate Shipping

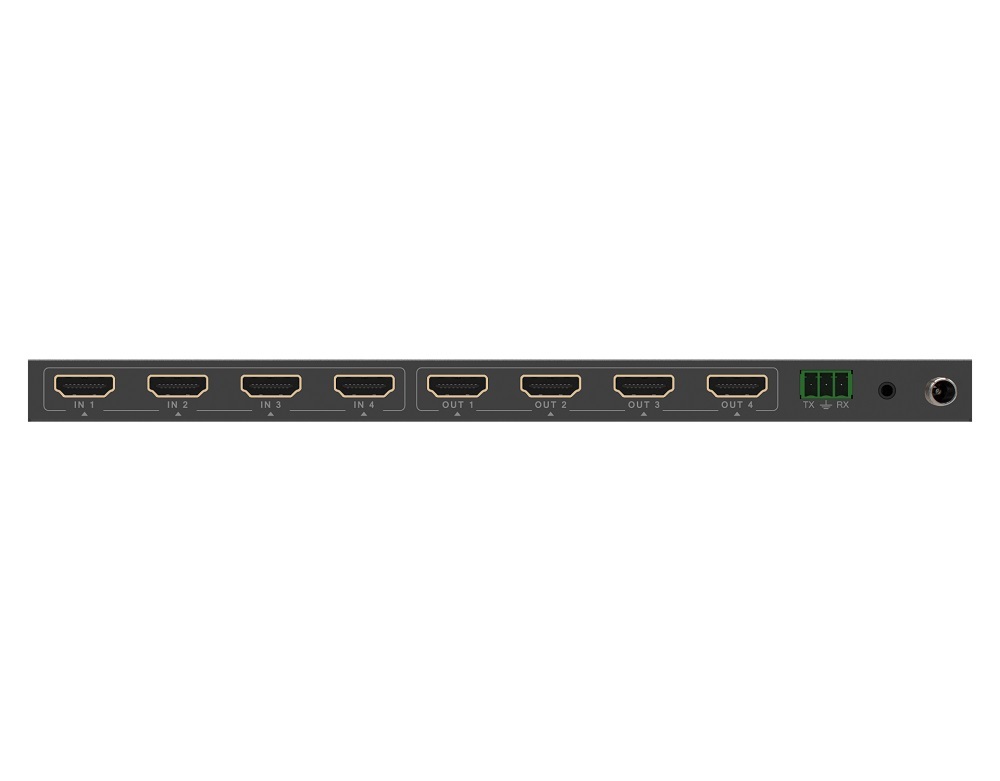

4K HDMI 4 Input 4 Output Matrix Switcher Splitter with EDID

4 x 4 HDMI True Matrix with EDID and HDCP 2.2

This true 4K HDMI Matrix Switcher is capable of switching between 4 HDMI inputs and displaying or splitting the signal to 4 LCD Displays or TV .

HDMI Switch supports the transmission of video resolution up to 4K×2K @ 60Hz and supports high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. HDMI sources are accessible at all times by selection via the supplied IR Remote Control, RS-232 or select buttons on the front panel or Ethernet protocol.

Features:

HDMI 1.4b, HDCP 2.2 and DVI 1.0 compliant
Supports 10.2Gbps bandwidth
Supports four routes HDMI input to four routes HDMI output
Supports resolution up to 4k2k@60Hz YCbCr 4:2:0
Supports up to 7.1 channel of High Definition audio (LPCM, Dolby TrueHD,
and DTS-HD Master Audio)
Supports 16 different EDID configurations via dialling the dip switch on-panel
Supports IR EXT port to extend the IR sensor range
Flexible control via on-panel buttons, IR remote control
Compact design for easy and flexible installation

Package Contents
① 1× HDMI 4×4 Matrix Switcher
② 1× 12V/2.5A DC Locking Power Adapter
③ 1× IR Remote Control
④ 1× 38KHz IR receive cable
⑤ 1× Phoenix Connector (3-pin, male)
⑥ 1× User Manual

CLICK HERE TO SEE OTHER HDMI MATRIX IN OUR RANGE

12 Month Warranty

SKU AA6172
Barcode # 9351634026685
Brand Aus Electronics Direct
Shipping Weight 1.1000kg
Shipping Width 0.170m
Shipping Height 0.070m
Shipping Length 0.250m
Shipping Cubic 0.002975000m3
Unit Of Measure ea

4K HDMI 4 Input 4 Output Matrix Switcher Splitter

By: on 20 October 2022
Very good product . it provide mulitple split for outout and input
