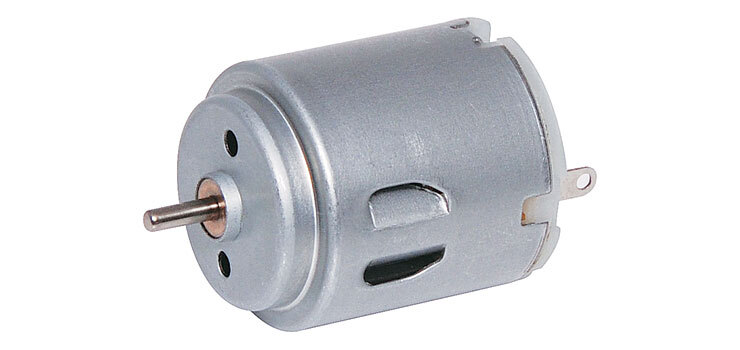

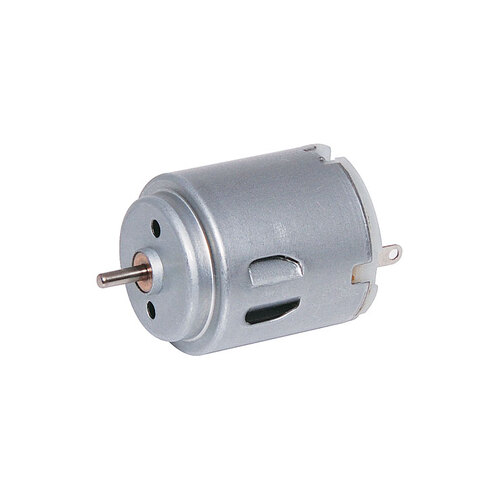

4.5V Low Torque F260 Hobby Motor

Hobby Motor for Toys, Robotics & Education

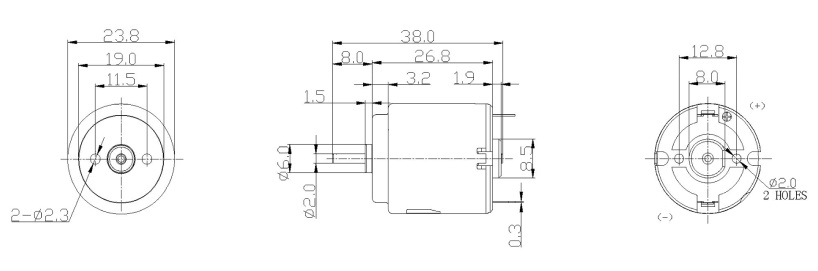

10,000RM rated hobby motor commonly found in robotics kits, toys and much more! 3-6VDC operation. 4.5V constant nominal operating voltage. 22.42gcm torque @ max efficiency. Shaft diameter 1.9mm.

Specifications

• Operating voltage: 3.0~6.0V DC
• Nominal: 4.5V DC
• No Load
• - Speed: 10000rpm
• - Current draw: 135mA
• Maximum Efficiency
• - Speed: 8400rpm
• - Current draw: 740mA
• - Torque: 2.16mN/m, 22g/cm
• Stall
• - Torque: 13.23mN/m, 135g/cm
• - Current: 3.9A

  *Specifications are subject to change without notice
