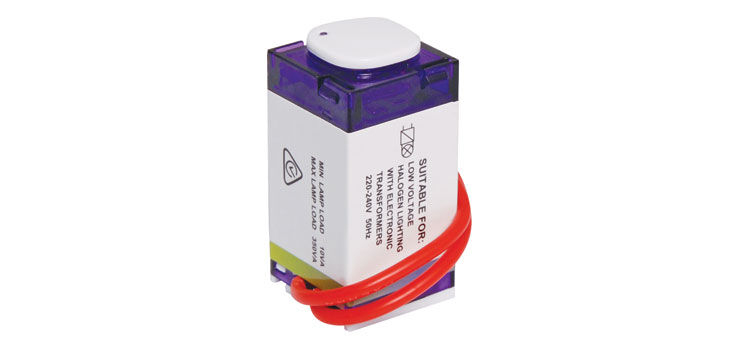

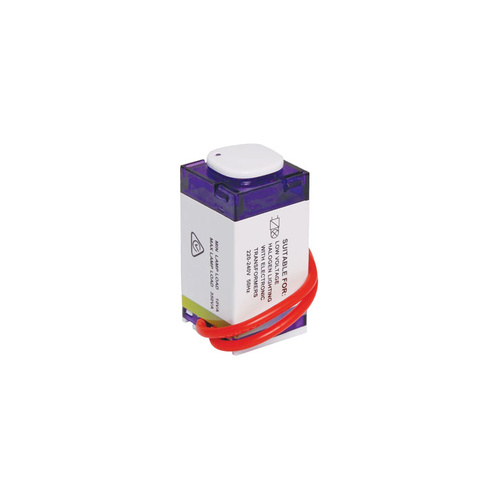

350VA Trailing Edge LED Push Button Dimmer Mechanism

HPM® & CLIPSAL® WALL PLATE COMPATIBLE DIMMER MODULE

These dimmer mechanisms suit standard Clipsal mechanism wallplate recesses and offer LED compatible light dimming with soft start. Operates with electronic type transformers. Suitable for new or retro-fit installations.

Features

• Smooth control of dimmable LED loads, no configuration required
• Short circuit, thermal overload and over-current protection
• Two wire phase-control design
• Complies with Australian EMC standards
• User adjustable min/max brightness
• Soft start for increased lamp and driver life
• Suits standard Clipsal mech recesses

Specifications

• Nominal operating voltage: 220-240V AC
• Nominal operating frequency: 50Hz
• Maximum load: 350VA @ 1 gang (derate for multi-gang applications)
• Minimum load: 10VA
• Dimming technique: Trailing edge phase control
• Mounting centres: 84mm Australian plate
• Safety compliance: AS/NZS 3100, AS/NZS 3133, IEC 60669-2-1.
• Suitable for indoor use only.

  *Specifications are subject to change without notice.

When connecting to mains power this must be installed by a licensed electrician.
To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.
