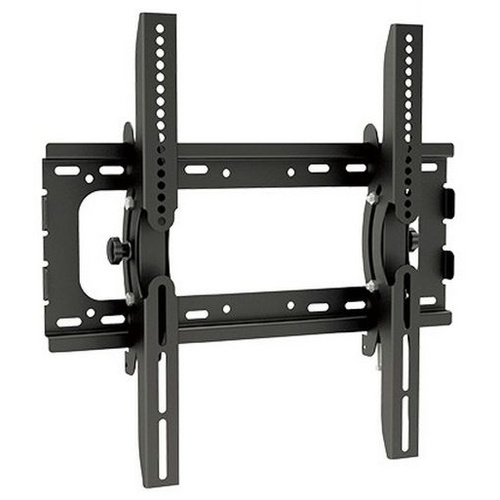

32" - 55" Tilting Wall Bracket LCD VESA 75kg

TV Monitor Tilting Wall Bracket

SUITS CURVED & FLAT SCREEN UP TO 55”

Easy to use and install, the popular model PLB-6N is designed to fit any 32''-55" curved & flat panel TVs up to 75kg/165lbs. This unit mounts in tilting position and tilts up to a 15° to position the screen for an optimal viewing experience. Open architecture provides superior ventilation and easy access for wiring. Compatible with VESA hole up to 400x400.




• Easy-grip knobs enable tilting up and down for 15°
• Strength has been tested for a minimum of three times its stated load capacity

Material: Steel
Available Color: Black

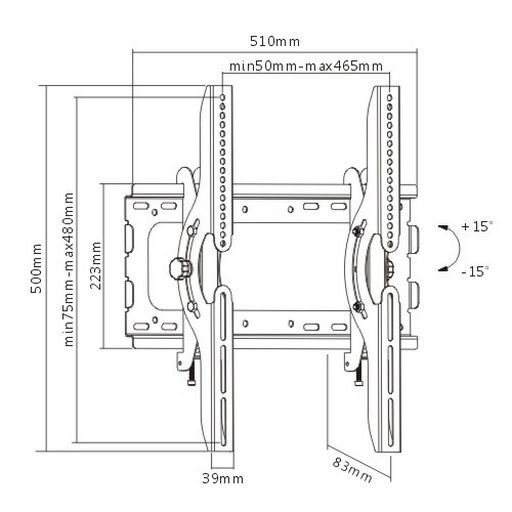

Product Size: 83X510x500mm
Recommended Screen Size: 32"-55"
Installation: Solid wall, Double Stud
Rated Weight Capacity: 75kg/165lbs
Strength tested: 3 times approve
Max.Hole Pattern: 465x480mm
VESA Standard: 200x200、300x300、400x200、400x400
Tilt: -15° ~+15°
Profile: 83 mm
Curved TV Available: Yes
