3.2 inch Touchscreen LCD Screen Shield for Arduino Mega

With SD Card socket and Backlight

SKU: TA0263


$37.95
RRP $79.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $36.05 ea
Buy 11 to 20: Pay $34.29 ea
Buy 21 to 100: Pay $32.54 ea




Calculate Shipping

3.2 inch Touchscreen LCD Screen Shield for Arduino Mega

With SD Card socket and Backlight

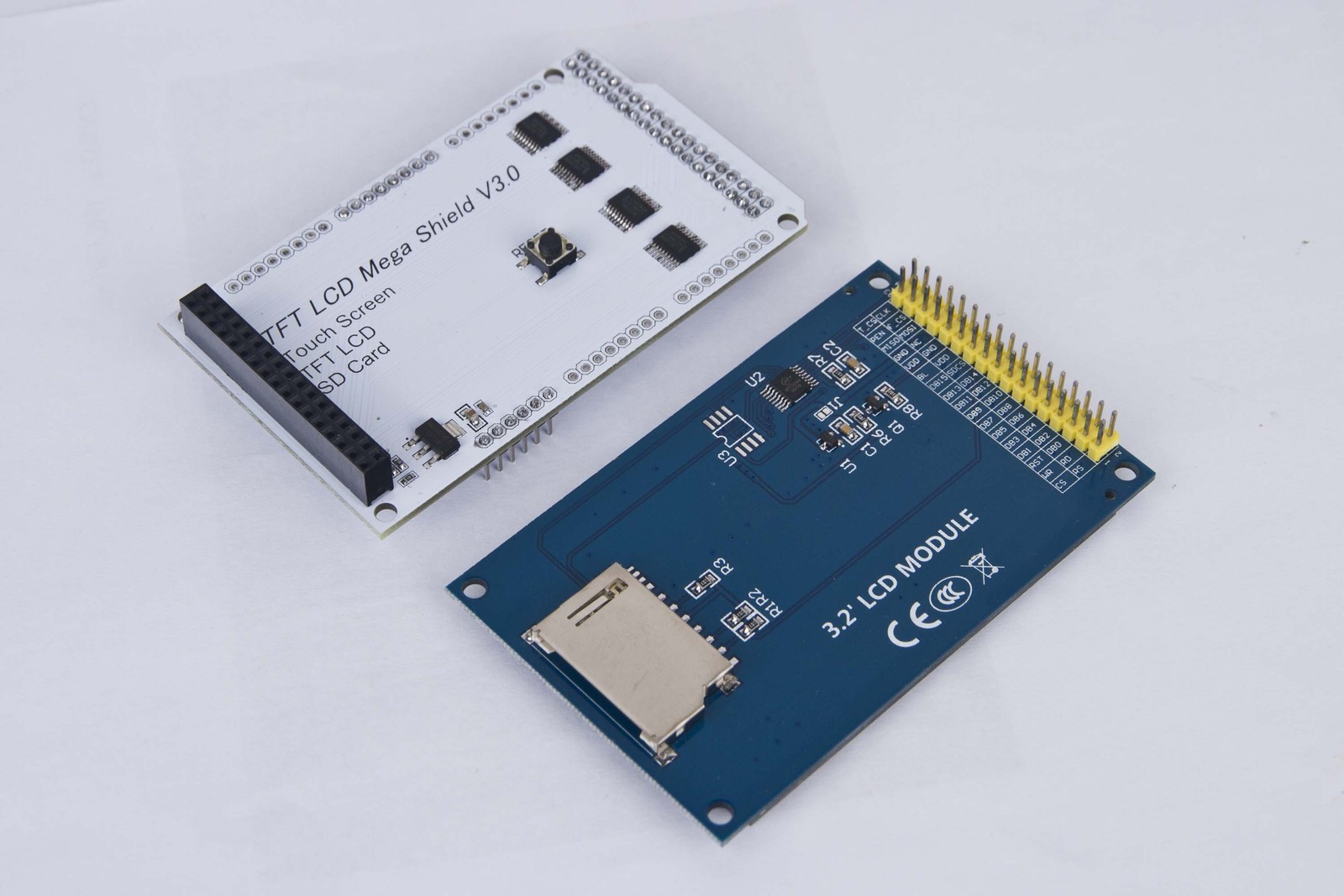

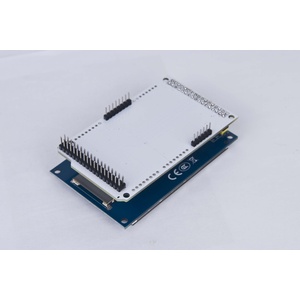

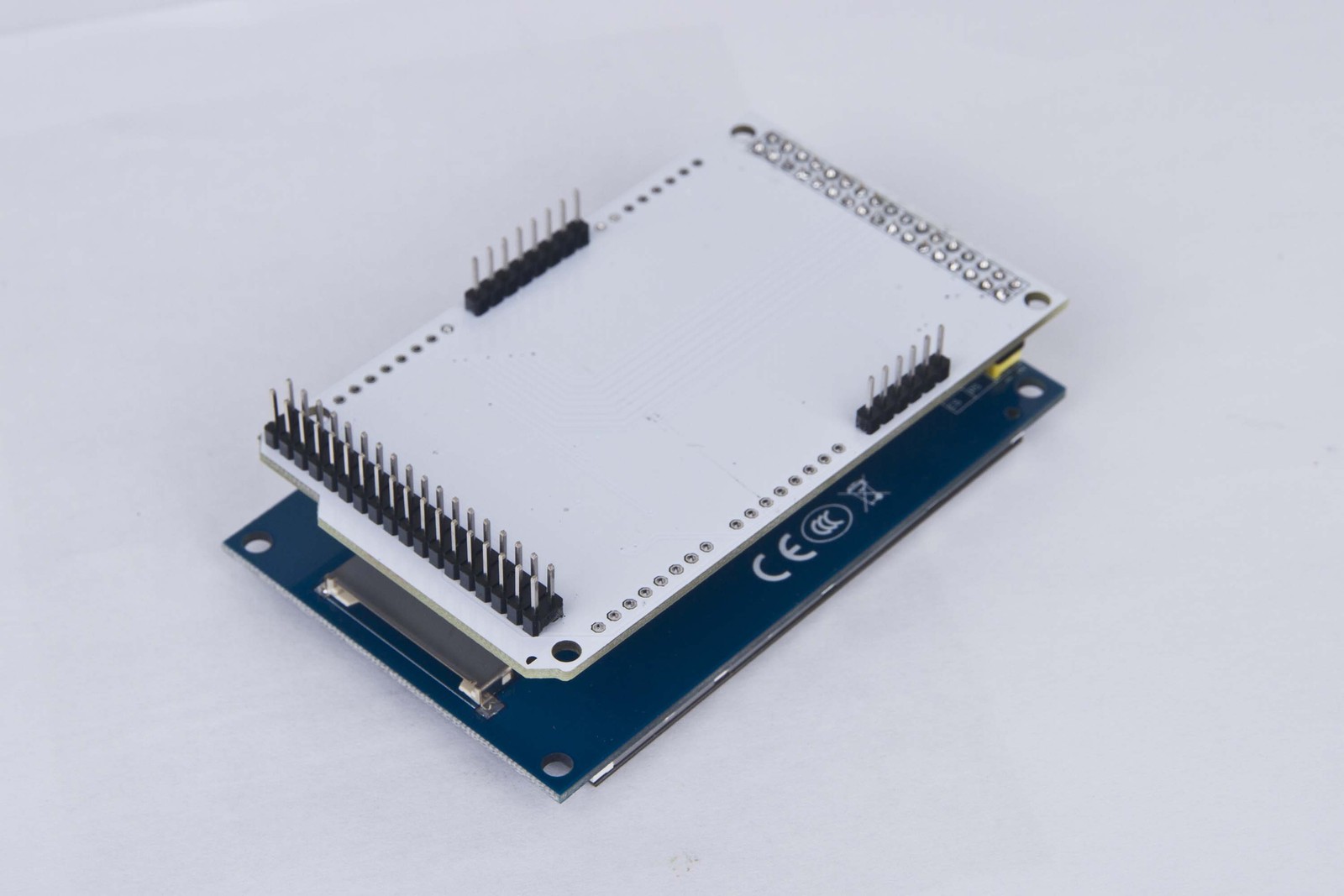

This touchscreen module is 3.2" TFT LCD in size with 262K color 240x 320 resolutions. The controller of this LCD module is ILI9341, it supports 16-wires DataBus interface and includes the 5V-3.3V power conversion circuit and Level conversion circuit, This Module can be directly inserted into the Arduino Mega2560 Board ,it also includes the SD card socket and SPI FLASH circuit.



Feature:



  • Support Arduino Mega2560 Directly inserted
  • Touchscreen
  • Chip: ILI9341
  • Full-angle IPS TFT panel
  • OnBorad level conversion chip for 5V/3.3V MCU
  • Compatible with 3.3/5V operation voltage level
  • Compatible with Arduino-Series development Board.
  • Compatible with UTFT / UTFT_Buttons /Utouch Library for arduino.
  • 12-examples with Arduino ,3-examples with STM32
  • SD Card Socket
  • SPI FLASH circuit



Click Here to Download the library and examples:

‚Äč

3 Month Warranty

SKU TA0263
Barcode # 9351634008643
Brand iDuino
Shipping Weight 0.1000kg
Shipping Width 0.100m
Shipping Height 0.040m
Shipping Length 0.130m
Shipping Cubic 0.000520000m3
Unit Of Measure ea

Clear screen.

By: on 5 July 2019
The available documentation and examples make it easy to get to grips with this LCD screen. In a couple of hours I had a nice set up with a temperature sensor (DS18B20) . Colours are bright and it works well with the Arduino Mega.
(5)

Great screen

By: on 20 May 2018
Great screen, files get you up and running really quick, the build quality is awesome. Very happy
(5)

Great Price, Easy setup

By: on 26 October 2017
Google "Github Adafruit ILI9341" - download zip and install through Library's manager in Arduino IDE, Great quality shield. Font support is awesome with this library/Chip-Set , great value. As Usual sent same day and received the next through Po Box - Rual North Queensland
(4)
