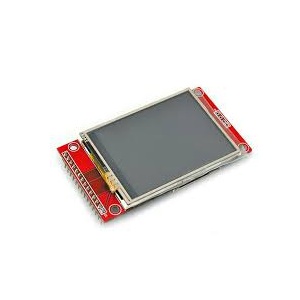

3.2 inch Touchscreen LCD Screen Module

With SD Card socket and Backlight

SKU: TA0264


$27.44
RRP $54.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $31.30 ea
Buy 11 to 20: Pay $29.73 ea
Buy 21 to 100: Pay $28.24 ea




Calculate Shipping

3.2 inch Touchscreen LCD Screen Module

With SD Card socket and Backlight

This touchscreen module is 3.2" TFT LCD in size with 262K color 240x 320 resolutions. The controller of this LCD module is ILI9488, it supports DataBus interface and also includes the SD card socket and SPI FLASH circuit.



Feature:



  • 3.5-inch color screen,support 65K color display,display rich colors
  • 480X320 resolution, optional touch function
  • Using the SPI serial bus, it only takes a few IOs to illuminate the display
  • Easy to expand the experiment with SD card slot
  • Provide a rich sample program
  • Military-grade process standards, long-term stable work
  • Provide underlying driver technical support
Display Color RGB 65K color
SKU have touch screen: MSP3520
have no touch screen: MSP3521
Screen Size 3.5(inch)
Type TFT
Driver IC ILI9488
Resolution 480*320 (Pixel)
Module Interface 4-wire SPI interface
Active Area (AA area) 48.96x73.44(mm)
Module PCB Size 56.34x98(mm)
Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃
VCC power voltage 3.3V~5V
Logic IO port voltage 3.3V(TTL)
Power Consumption TBD
Rough Weight(Package containing) No touch: 45 (g) / With touch: 57 (g)



Number Pin Label Description
1 VCC 5V/3.3V power input
2 GND Ground
3 CS LCD chip select signal, low level enable
4 RESET LCD reset signal, low level reset
5 DC/RS high level: register, low level: data
6 SDI(MOSI) SPI bus write data signal
7 SCK SPI bus clock signal
8 LED if not controlled, connect 3.3V always bright
9 SDO(MISO) SPI bus read data signal, if you do not need to the read function, you can not connect it

10 T_CLK Touch SPI bus clock signal
11 T_CS Touch screen chip select signal, low level enable
12 T_DIN Touch SPI bus input
13 T_DO Touch SPI bus output
14 T_IRQ Touch screen interrupt signal, low level when touch is detected



Click Here to Download the library and examples:

3 Month Warranty

SKU TA0264
Barcode # 9351634023905
Brand iDuino
Shipping Weight 0.1000kg
Shipping Width 0.100m
Shipping Height 0.040m
Shipping Length 0.130m
Shipping Cubic 0.000520000m3
Unit Of Measure ea
