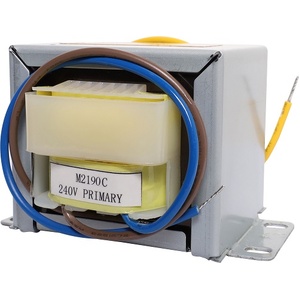

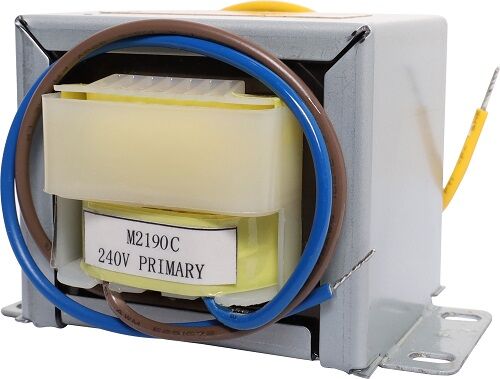

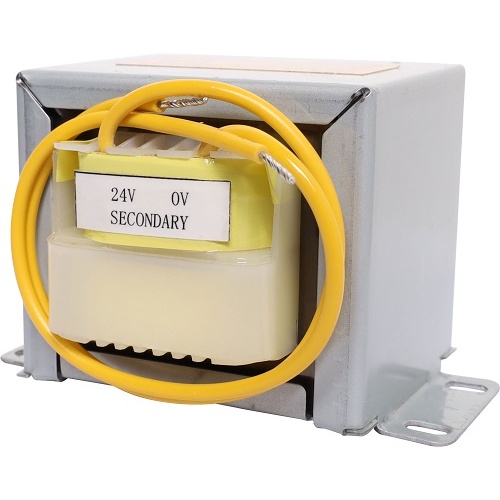

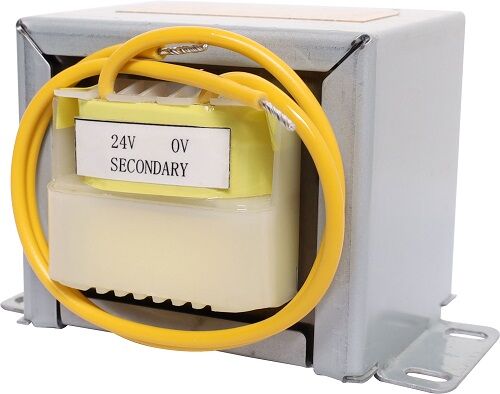

24V / 240V 5A EI Core Transformer

EI Core 240V AC Mains Transformer

EI-Core 240V AC mains transformer with 5A single tap secondary configuration. 24V secondary voltage available at 5A current output. Primary and secondaries fitted with 200mm flyleads. Fully electrical authority approved for AS/NZS 61558.2.6.

Note: Must be used with a standard 500mA external fuse. All currents listed are AC.

• Primary voltage: 240V AC
• Total VA rating: 120VA
• Insulation: Class E (120°C)
• Magnetising current: <85mA
• Temperature rise: <65°C
• Regulation: ≈10%
• Recommended primary AC fuse: 500mA
• Weight: ≈1.4kg
• Primary connection: 200mm fly leads
• Secondary connection: 200mm fly leads
