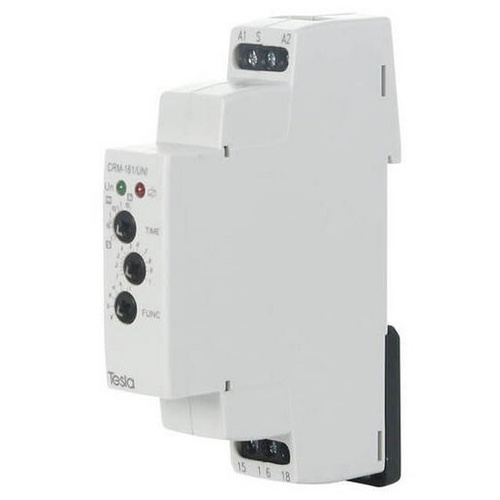

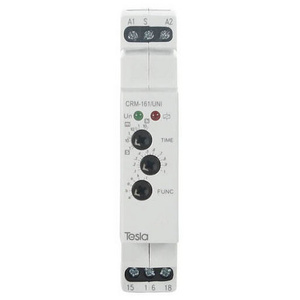

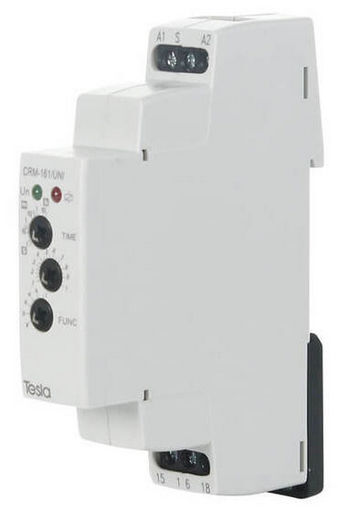

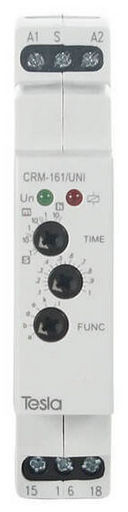

24-240V AC and 24V DC Multifunction Time Relay

Multifunction Time Relay

The CRM-161-UNI is a versatile and compact time relay designed for precise control in automation, regulation, and household installations. With universal voltage support and multiple timing functions, it is a reliable solution for a wide range of applications.

Features:

• Multi-function time relay for universal use in automation, control and regulation or in house installations.
• Compatible with both AC and DC power sources, ensuring adaptability in diverse installations.
• Offers up to 6 timing functions, with the following time scales: (0.1s - 1s), (1s-10s), (0.1 min-1min), (1min-10min), (0.1hr-1hr) and (1hr-10hr).
• DIN-Rail mountable.
• 1x changeover SPDT 8A.
• Multifunction red LED provides immediate feedback on the operating status.

Technical parameters

• Output: 1x CO, 8 A
• Housing: 1-MODULE
• Supply voltage (frequency): AC 24-240 V and DC 24 V (AC 50/60Hz)
• Time range: 0.1 s - 10 hrs (6 ranges)
• Number of functions: 6
• Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
