20A PWM Solar Charge Controller 12/24V with USB

20A 12V DC PWM Solar Charge Controller Regulator w/ USB

SKU: SP0722

RRP $189.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $90.20 ea
Buy 11 to 20: Pay $81.18 ea
Buy 21 to 100: Pay $73.06 ea

Calculate Shipping

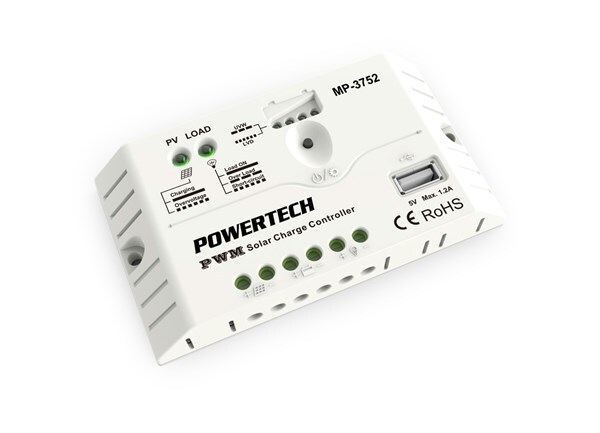

20A PWM Solar Charge Controller 12/24V with USB

20A 12V DC PWM Solar Charge Controller Regulator w/ USB

Intelligent yet lightweight, this solar controller uses Pulse Width Modulation (PWM) to control battery charging. With total autonomy, its set-and-forget operation means you can get maximum charge into your batteries from your solar installation without having to worry about those things. Suitable for solar panels up to 320W, it provides all the important safety features such as overload, short-circuit, over-discharge, and reverse-polarity protection. A handy feature is also the USB port located on the front panel, to provide up to 1.2A charging. Very handy during power outages to keep your phone charged without any additional equipment. Charge modes include bulk, equalise, and float charging, and the unit automatically switches to the best charging mode. Suitable for sealed led acid, as well as Gel/flooded type cells.

Note: Solar panel nominal voltage must match battery voltage - eg. 12V solar panel on a 12V battery system.

- Automatic charge mode selection
- Suitable for 12V and 24V battery banks
- USB charging port on front panel
- Charging Modes: Bulk, Equalise, Float
- Supports: Sealed, Gel and Flooded
- USB Output: 5V @ 1.2A
- Terminals to suit cable up to 6mm2.



Packaged Volume : 0.8l
Packaged Weight : 0.21kg
Packaged Length : 16.1cm
Packaged Width : 10.1cm
Packaged Height : 4.9cm
Length : 148mm
Width : 86mm
Height : 35mm
Weight : 160g
Operating Temperature : -35°C, 55°C
Dust/Particle Ingress Protection : 2 - Objects > 12.5mm, Fingers or small objects
Liquid/Moisture Ingress Protection : 0 - Not protected
IP Rating : IP20
DC Voltage : 12V, 24V
DC current rating : 20A
Total Current Rating : 1.2A
Number of Ports : 1pc
Input Type : Screw Terminal
Output Type : Screw Terminal
Max Solar Panel Array : 240W, 480W
Max PV Open Circuit Voltage : 50V
Max Charging Current : 20A
Max Load Current : 20A
Charge Controller Technology : Pulse Width Modulated (PWM)
SKU SP0722
Barcode #
Brand Aus Electronics Direct
Shipping Weight 0.3000kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.000500000m3
Unit Of Measure ea
Assembled Length 0.100m
Assembled Height 0.050m
Assembled Width 0.100m
