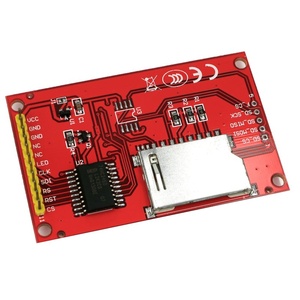

2.2 inch Serial Port TFT SPI LCD Screen for Arduino

With SD Card socket and Backlight

SKU: TA0259


$14.95
RRP $29.95
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $14.20 ea
Buy 11 to 20: Pay $13.49 ea
Buy 21 to 100: Pay $12.82 ea




Calculate Shipping

2.2 inch Serial Port TFT SPI LCD Screen for Arduino

With SD Card socket and Backlight

Features:

  • Compatible with 3.3/5V operation voltage level
  • OnBoard level conversion chip for 5/3.3v MCU
  • With SD card socket
  • With Backlight control circuit
  • SPI serial bus only need 4 IO at least
  • Size: 2.2 inch
  • Control IC: ILI9225
  • Display resolution: 176*220

Specification:

  • Display size: 2.2 inch
  • On-board SD card
  • With regulator IC support 5V / 3.3V
  • Resolution: 240 x 320(RGB)
  • Interface: 4-Wire SPI(supports hardware SPI)
  • Color depth: 262K / 65K
  • Active area: 33.84 x 45.12mm
  • Size: 40.10 x 55.20 x 2.35mm(W x H x D)

Package includes:

  • 1 x 2.2inch SPI TFT LCD module



Install Library Files (click below to download)

LIbrary files for TA0259

3 Month Warranty

SKU TA0259
Barcode # 9351634006991
Brand iDuino
Shipping Weight 0.0400kg
Shipping Width 0.140m
Shipping Height 0.020m
Shipping Length 0.090m
Shipping Cubic 0.000252000m3
Unit Of Measure ea

A bit of advice

By: on 10 May 2020
This is quite good. I had to go to https://www.youtube.com/watch?v=P6k3NWajjAk, and download library referenced in description, to get it working. Note, it seems to work ok with 5v logic. Also, in example sketch used on above video, you need to set the LED to A0. That is change "#define TFT_LED 0" to "#define TFT_LED A0". Enjoy!
(4)
