2 x Reversing Camera w/ 7" Heavy Duty Monitor Trailer Kit

Dual Reversing Camera and Monitor Trailer kit

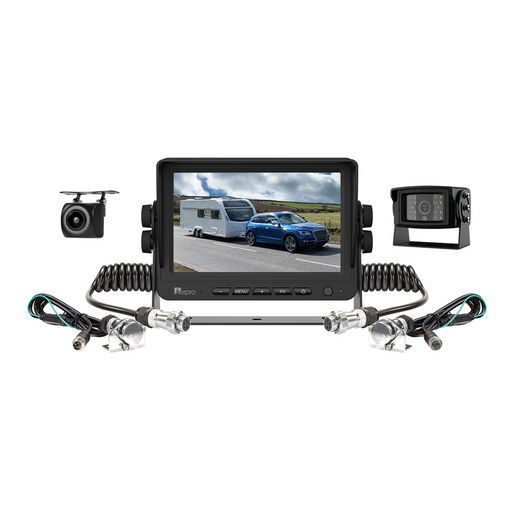

Experience enhanced carvan towing safety and surveillance with the Aerpro 7" AHD Caravan Monitor Camera Kit. This comprehensive kit combines state-of-the-art technology from the Aerpro Advanced Safety Vision Systems range, featuring the 7" AHD Monitor,  AHD 1080P Heavy Duty Surface Mount Camera, AVC0 AHD 1080P Butterfly Camera, Heavy Duty Trailer connection kit, 7M Dual Camera Extension Cable and a 10M Camera Extension Cable.

The 7" AHD Monitor delivers exceptional clarity and detail with advanced AHD (Analogue High Definition) technology, ensuring optimal visibility in any lighting condition. Equipped with dual camera inputs and individual triggers, the allows seamless switching between cameras for enhanced manoeuvrability and safety. Its versatile compatibility with SD, HD, and AHD cameras, coupled with automatic PAL/NTSC video system switching, ensures easy integration into various vehicle setups.

Paired with the AVM7 Monitor is the AHD 1080P Heavy Duty Surface Mount Camera. Featuring AHD 1080P resolution, a wide-angle lens with a 110° field of view, IP69K rating for superior water and dust protection and conformal coating for added durability, the AVC3 excels in challenging environments. It supports night vision with 18x IR LEDs and captures audio directly through its integrated microphone, enhancing situational awareness during operations. Included in the kit is the AHD 1080p small format Butterfly camera, measuring 22mm in diameter and 25mm in depth, making it an ideal discreet option for vehicle mounting. With a wide 158-degree angle and an IP69K rating, the AVC0 ensures comprehensive coverage and durability.

The kit includes the Heavy Duty Trailer 3-piece connnection kit which has heavy duty sockets for the vehicle and trailer that features metal mounting brackets and weatherproof covers to protect the sockets from dust and water when not in use. The extension cable enables you to route a single cable along your vehicle, supporting two AHD video feeds. It then splits back into two video feeds at both ends of the cable, offering convenient installation for dual-camera setups. Also included is a 10M Camera Extension Cable, providing a secure 4-pin wired connection over a 10-metre length.

Backed by our industry-leading 5-year warranty, the Aerpro 7" AHD Caravan Kit combines cutting-edge technology with reliability and durability.

Elevate your vehicle''s safety and surveillance capabilities with the Aerpro Advanced Safety Vision System - your trusted partner on the road.




• Complete Monitoring Solution: Includes the  7" AHD Monitor, AHD 1080P Heavy Duty Surface Mount Camera, AHD 1080P Butterfly Camera, Heavy Duty Trailer kit and three 10 Metre Heavy Duty Camera Extension Cables for seamless installation in a wide range of vehicles
• Advanced AHD Technology: Experience exceptional clarity and detail with the monitor and 1080P camera powered by AHD (Analogue High Definition) technology.
• Enhanced Visibility: Luminance of 450cd/m2 ensures optimal screen brightness in any lighting condition, providing clear visuals on the monitor.
• Dual Camera Inputs: Benefit from flexibility with the monitor''s two camera inputs, allowing the addition of a second camera for enhanced monitoring (sold separately)
• Single View Mode: Effortlessly switch between camera views on the monitor, optimising visibility and situational awareness
• Image Flip: Choose between normal or reverse camera view settings to suit specific application needs
• Parking Guidelines: Enable or disable parking guidelines (CAM 2 input only) for precision manoeuvring
• Integrated Speaker & Microphone: Capture camera audio feedback directly through the monitor''s on-board speaker, enhancing situational awareness
• Flexible Installation: Utilise the included AVEC10 10 Metre Camera Extension Cables to extend camera reach and optimise installation flexibility
• Quick Connect Cables: The Trailer Connection Kit allows for quick connect and disconnect soluton for reverse cameras on caravans
• Secure 4 Pin Wired Connection: Utilises a reliable 4 pin camera connector for stable, secure and weatherproof connection
• Suitable for Various Vehicles: Compatible with cars, trucks, vans, buses, motorhomes, agricultural vehicles, heavy machinery and more
• Industry-Leading 5-Year Warranty: Backed by a 5-year warranty, ensuring long-lasting performance and peace of mind

Display: 7" LCD Display
Resolution
- Monitor: 1024x600
- Camera: 1080P
Lens Angle (Surface Mount): 110 Degrees
Lens Angle (Butterfly): 105 Degrees
Wired or Wireless: Wired
Video Inputs: 2
Video Triggers: 2
Monitor View: Normal / Reverse
Guidelines: Selectable On/Off (CAM 2 Only)
Display Modes: Single Only
Luminance: 450cd/M2
Light Sensitivity: 0.01 LUX (IR On)
Camera IP Rating: IP69K (Conformal Coated)
Camera Microphone: Yes
Power Supply: 9-36V (Hardwired)
Dimensions (WxHxD):
- Monitor: 197 x 136 x 62.3mm
- Heavy Duty Camera: 89 x 69 x 68mm
- Butterfly Camera: 40 x 31 x 37mm (Includes Bracket)
- Butterfly Camera: 22 x 22 x 25mm (Excludes Bracket)
Inclusions:
- 7" AHD Monitor
- 1 x 1080P AHD Butterfly Camera
- 1 x 1080P AHD Camera
- 1 x Monitor mount
- 1 x Sunvisor
- 1 x 1.5m Monitor cable
- 1 x 7m Dual Camera cable
- 1 x 10m Camera cable
- 1 x Trailer Connection kit
Notes: The Trailer Connection Kit has 2-metres of cabling on the car side, 2-metres on the caravan side and the curly cable can extend to a maximum of 2-metres.
