2 Channel UHF Wireless Microphone System with Handheld & Beltpack Mic

UHF Microphone System with 2  Wireless Mics

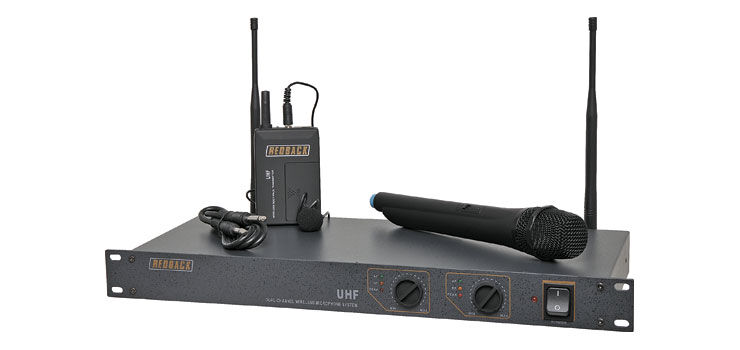

2 channel fixed frequency UHF wireless microphone systems, including handheld microphone and belt pack microphone. Ideal for systems requiring the freedom of two independent wireless microphones at an economical price. The sturdy 19” rack mount cabinet is fitted with two fixed frequency wireless receivers. The miniaturised SMD construction and unique shielding technique, plus individual squelch control, ensures excellent performance and minimal external interference. Each receiver features an independent front panel level control, AF, RF and peak indicators. Outputs are provided for each channel via 3 pin XLR, plus a mixed output via 6.35mm jack. The aerials are removable for remote mounting if required. Includes receiver, one handheld microphone and a lavalier belt pack (lapel mic included). A range of 50m or more is obtainable in ideal conditions. The perfect system for wedding ceremonies, DJs, sporting clubs, schools, restaurants and function centres.

Note: Includes 4 x AA batteries (2 per transmitter)

Note: The box contains a 6.35 to 6.35mm microphone cable for the mixed output but you will need to purchase 2 x XLR leads if you are using the individual balanced outputs

Note: The belt pack supplied with this model is only compatible with the included tie clip microphone. Due to pin out differences, this belt pack is not compatible with other microphones.

Box Contents

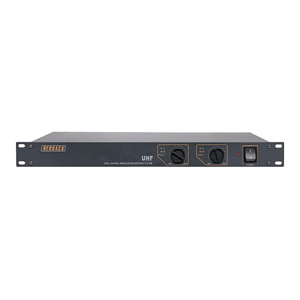

1x 2 Channel Receiver

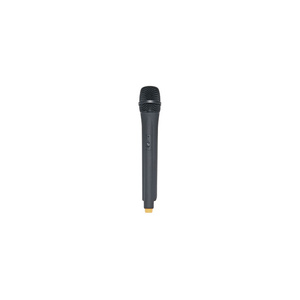

1x Handheld Microphone

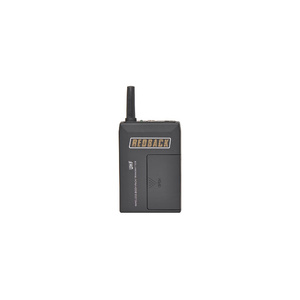

1X Lavalier Belt Pack
1x Lapel Mic
2 x Aerials
1x 6.35 to 6.35mm Microphone Cable
1x Plug Pack
1x Instruction Manual
4 x AA batteries


Features

• Operating frequencies 520 / 524.30MHz
• 19” 1RU rack mount case
• Steel enclosure construction
• Removable aerials

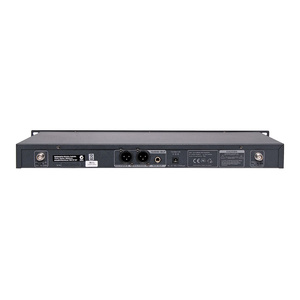

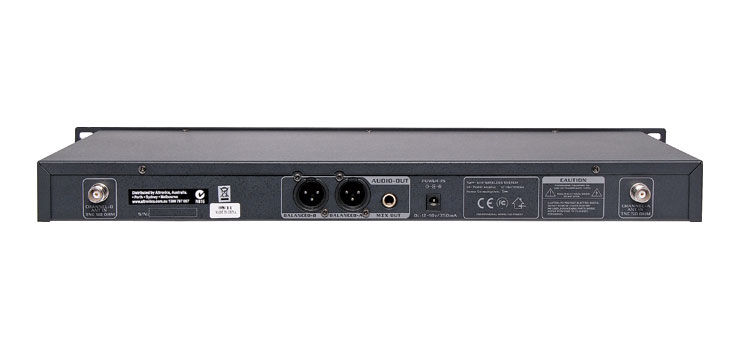

• Individual 3 pin XLR outputs
• Mixed 6.35mm jack output (1m cable included)

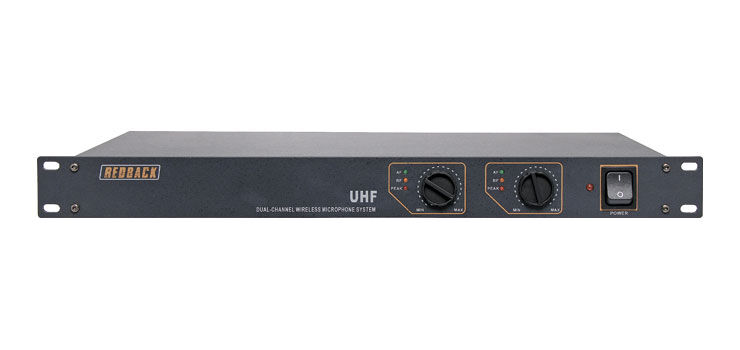

• Front panel level controls
• Tone squelch circuit for noise reduction
• RF, AF & peak signal LEDs
• Range up to 50m in ideal conditions

Specifications

• Receiver
• Carrier frequency: 520MHz & 524.30MHz UHF band
• Frequency stability: ±0.005%
• Oscillator: PLL Synthesised
• Receiving sensitivity: 10µV over 80dB S/N ratio
• Image and spurious rejection: 80dB minimum
• Selectivity: >50dB
• Modulation mode: FM
• IF Frequency: 1st: 243.95MHz, 2nd: 10.7MHz
• Tone signal: 32.768kHz
• Signal to noise ratio: >94dB, at 20kHz deviation and
• 60dBµV antenna input
• Audio frequency response: 80Hz to 16kHz
• Total harmonic distortion: less than 1.0% (at 1kHz)
• Audio outputs: Balanced and unbalanced outputs for single channel
• Switching diversity (Mic = 20dB / Line = 0dB)
• Power supply: 12V DC
•
• Mechanical
• Dimensions: 480W x 170D x 45H mm
•
• Transmitter
• Carrier frequency range: 566 - 575MHz UHF band
• Frequency stability: ±0.005%
• Microphone capsule
• Handheld: Dynamic unit
• Beltpack: Lavalier condenser
• Battery: 3V DC (2 x 1.5V AA batteries) or 2.4V DC (2 x 1.2V AA rechargeable)

  *Specifications are subject to change without notice.
