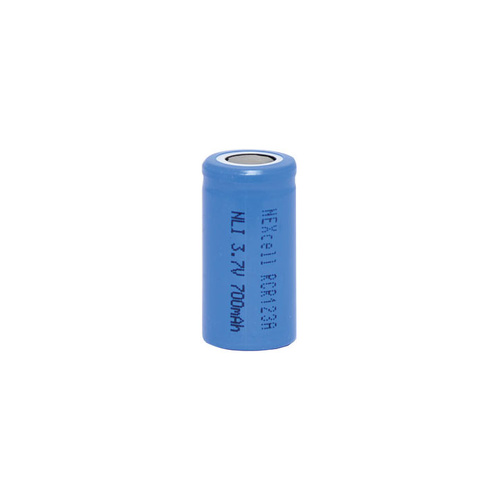

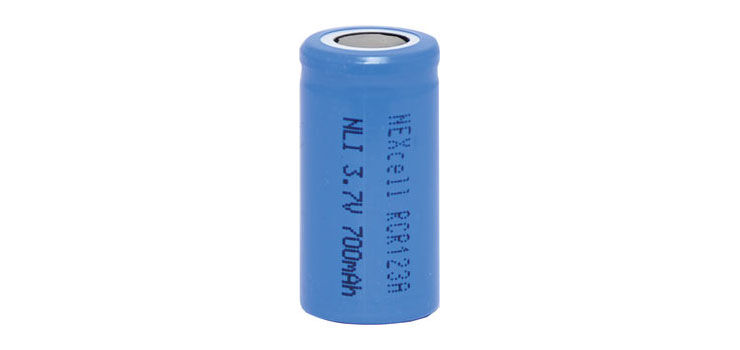

16340 RCR123A 3.7V 700mAh Li-Ion Rechargeable Battery

Safe and Reliable Rechargeable Battery Solution

These high performance RCR123A (16340) lithium ion 3.7V batteries offer high performance and long life from a compact package.

Lithium-ion batteries offer excellent properties for use in consumer devices, including excellent energy density and low maintenance. Lithium-ion do not suffer from memory effect and possess no regular cycling that batteries often require to extend their service life.

Common Applications Include:
Laptop computers
LED flash lights
Electric vehicles
Power tools

Specifications

• Typical Capacity: 720mAh @ 0.2C discharge
• Minimum Capacity: 700mAh @ 0.2C discharge
• Nominal voltage: 3.7V
• Standard Charge: CC/CV, 0.2C5A, 4.20V
• Standard Discharge: CC, 0.2C5A, 3.00V
• End-of-Charge Voltage: 4.20V
• End-of-Charge Current: 0.02C5A (At CV Mode)
• Charging Time: 8 hours (standard charging)
• Quick Charge Current: 700mA (1.0C5 rate) 1C
• Quick Discharge Current: 1400mA (2.0C5 rate) 2C
• Max Discharge Current: 2100mA (3.0C5 rate) 3C
• Initial Impedance: 75mΩ max.
• Weight: 17g
• Charging Operating Temperature: 0°C to 45°C
• Discharging Operating Temperature: -20°C to 60°C
• Storage Temperature: -5°C to 35°C
• Storage Humidity: Less than 75% RH
• Standard Environmental Conditions: 25°C @ 45-75% RH, 86-106KPA.

  *Specifications are subject to change without notice.

Note: This battery has a flat positive terminal (not raised)

SEE BELOW FOR SUITABLE 3.7V LI-ION BATTERY CHARGER
