15V - 30V DC 50A Variable Switch Mode Power Supply

Power Supply for high current applications

SKU: PS2452


$369.00
RRP $499.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $350.55 ea
Buy 11 to 20: Pay $333.02 ea
Buy 21 to 100: Pay $316.37 ea




Calculate Shipping

15V - 30V DC 50A Variable Switch Mode Power Supply

Power Supply for high current applications

The eFUEL 50A DC power supply is a variable DC Output; from 15V to 30V DC capable of supplying up to 50 Amps continuous. Simply dial in the required voltage which is displayed on the easy to read LCD display, then connect your device via the high current binding posts avialable.

Supplied with a 1.8m IEC Cable for plugging directly into 240V AC Mains socket.

Features:

Active PFC
PFC, short for power factor correction, consists of active FPC and negative FPC. Active FPC, which is integrated into SkyRC 1200W/30A regulated power supply, can provide higher power utilization.
Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency. It’s capable of correction on AC input voltage and universal on a global basis.

Specifications:

Voltage: 100-240V AC
Input AC Frequency: 50-60Hz
Output Voltage: 15-30V DC @ 0.5V
Output Current: 50A @ 1A
Current Overload Protection: = 51A 500MS
Input Fuse: 20A Fuse
LCD Display: Voltage Precision @0.3V
Current Precision @0.5A
Output Voltage Ripple: < 300mV
Power Efficiency: 89%
Power Factor: > 0.98
Over Temperature Protection: <65?

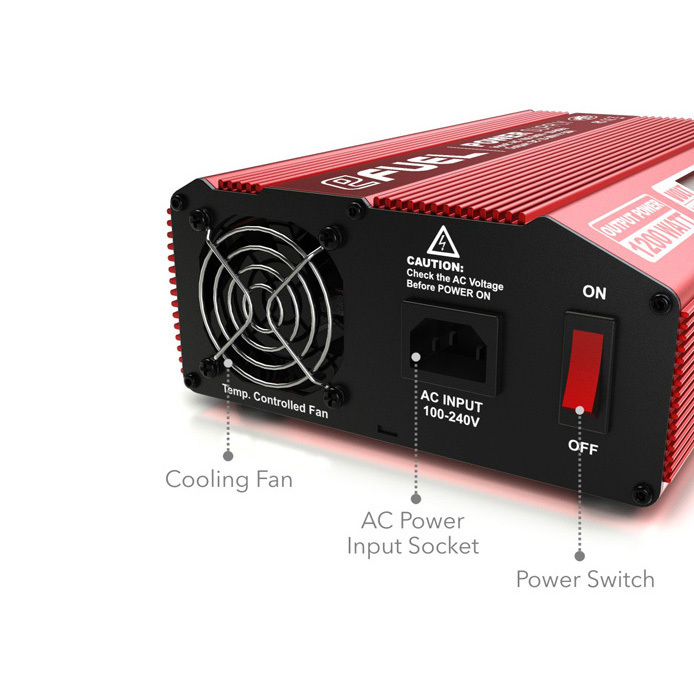

Cooling Method: Cooling Fan
Operating Temperature: 0-40
Operating Humidity: 0-90%
Dimensions (L*W*H): 305x170x85mm
Net weight: 3.08kg

3 Month Warranty

SKU PS2452
Barcode # 9351634020348
Brand eFuel
Shipping Weight 0.1300kg
Shipping Width 0.150m
Shipping Height 0.050m
Shipping Length 0.180m
Shipping Cubic 0.001350000m3
Unit Of Measure ea
