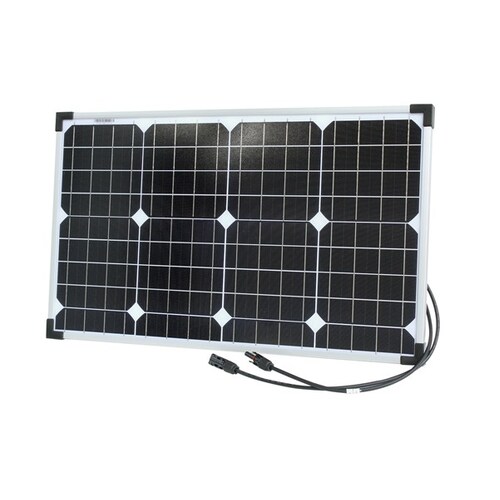

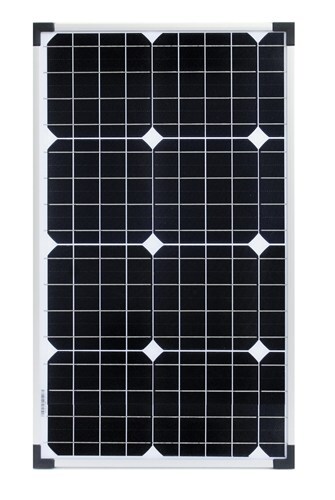

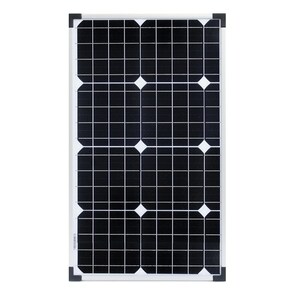

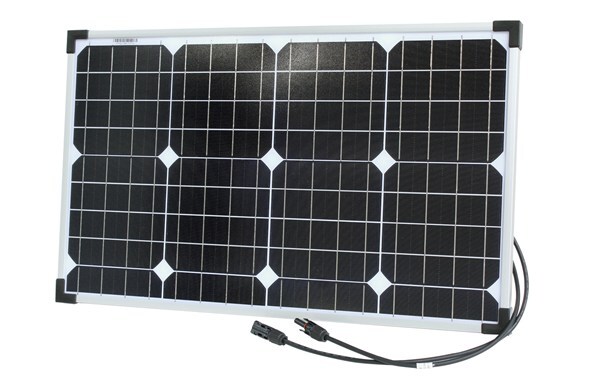

12V 40W Monocrystalline Solar Panel with MC4 Leads

12V 40W Monocrystalline Solar Panel w/ 25 Year Warranty

SKU: SP0120

RRP $259.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $116.10 ea
Buy 11 to 20: Pay $104.49 ea
Buy 21 to 100: Pay $94.04 ea

Calculate Shipping

12V 40W Monocrystalline Solar Panel with MC4 Leads

12V 40W Monocrystalline Solar Panel w/ 25 Year Warranty

These high performance monocrystalline solar panels are much smaller, thinner, higher in efficiency and more affordable than our previous models. The manufacturing process for this range uses 36 pieces of 156x156mm A-grade solar cells cut into defined sizes with 4 grid lines, which provides excellent performance under low light environments. Each panel is designed to withstand harsh environmental conditions with a durable anodised aluminium frame and 3.2mm low iron tempered glass. The glass is anti-reflective and has a hydrophobic effect to resist dirt and dust, improving light absorption thereby preventing any needless power loss.

The junction box and bypass diodes stops the panel from overheating and suffering from the “hot spot effect”.

The entire range is easier to install with minimal ongoing maintenance and compatible with industry standard inverters and mounting systems.

25 year limited warranty

Monocrystalline solar panels are covered by a 25 year limited warranty. This warranty covers the panels for defects in construction and manufacturing for a period of 5 years, and warrants that the electrical output will remain above 80% of its original rated output for a period of 25 years.

• Maximum power (Pmax): 40W

• System Output Voltage: 12V

• Open circuit voltage (Voc): 21.5V

• Short circuit current (Isc): 2.5A

• Voltage at max power (Vmp): 17.2V

• Current at max power (Imp): 2.33A

• Termination: PV Plug

• Cable length: 900mm

• Dimensions: 664×408×25mm


Packaged Volume : 11.42l
Packaged Weight : 3.5kg
Packaged Length : 68cm
Packaged Width : 42cm
Packaged Height : 4cm
Length : 664mm
Width : 408mm
Height : 25mm
Cable length : 0.9m
DC Voltage : 12V
Continuous Power : 40W
Solar panel type : Monocrystalline
Mounting Method : Standard Universal
Mounting Material : aluminium
Cover Material : tempered glass
Open Circuit Voltage : 21.5V
Short Circuit Current : 2.5A
Voltage at Power Max : 17.2V
Current at Power Max : 2.33A
Power Connector : 4mm PV Connector (MC4 Style)
Bypass Diode Included : true


SKU SP0120
Barcode # 9351634069668
Brand Aus Electronics Direct
Shipping Weight 0.6400kg
Shipping Width 0.250m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.010000000m3
Unit Of Measure ea
