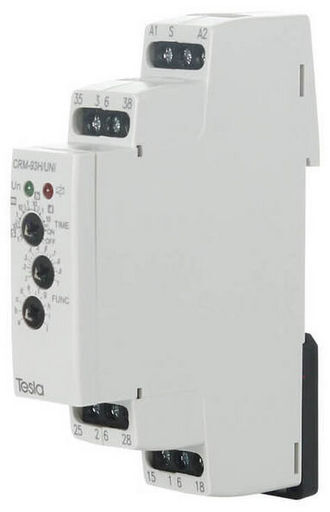

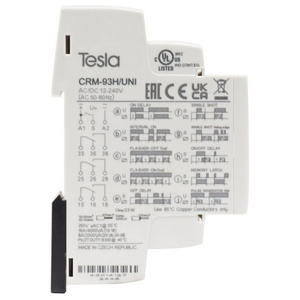

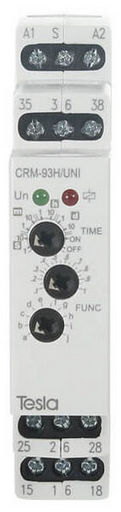

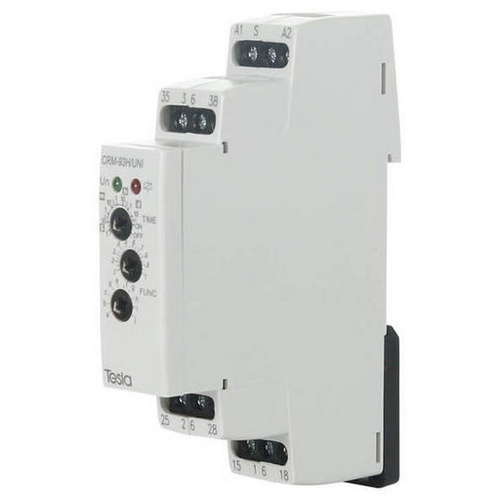

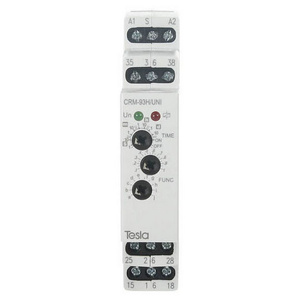

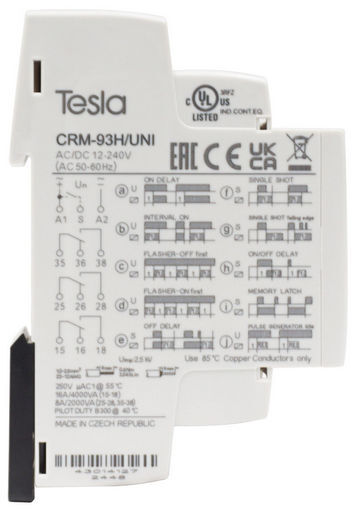

12-240V AC Multifunction Time Relay

Multifunction Time Relay

The compact, high-performance multifunction time relay is designed for versatile automation and control applications. Featuring a universal power supply that accommodates both AC and DC inputs across a wide range of 12–240 V, this time relay is engineered to provide flexibility and reliability in various electrical systems. Its comprehensive timing functions, adjustable from 0.1 seconds to 10 days, ensure precise control and operation.




• Multi-function time relay for universal use in automation, control and regulation or in house installations.
• Compatible with both AC and DC power sources, ensuring adaptability in diverse installations.
• Offers up to 10 timing functions, with the following time scales: (0.1s - 1s), (1s-10s), (0.1 min-1min), (1min-10min), (0.1hr-1hr), (1hr-10hr), (0.1day-1day), (1day-10days), only ON and only OFF.
• DIN-Rail mountable.
• 1x changeover SPDT 16A, 2x changeover DPDT 8A.
• Multifunction red LED flashes or shines depending on the operating status.
