100A Split Core Non-Invasive Current Sensor Transformer

Great for Power Energy Meter Projects

SKU: TA0336


$14.95
RRP $29.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $14.20 ea
Buy 11 to 20: Pay $13.49 ea
Buy 21 to 100: Pay $12.82 ea




Calculate Shipping

100A Split Core Non-Invasive Current Sensor Transformer

Great for Power Energy Meter Projects

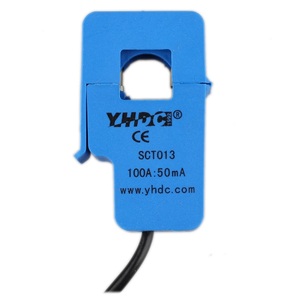

The SCT-013-000 is a 100A ferrite type non-invasive current sensing transformer that easily clamps over wires and cables. Perfect for measuring current on energy meter projects; monitoring and protecting AC motors, lighting equipment, ac compressors, etc. Terminated 3.5mm stereo plug on a 1m cable length.

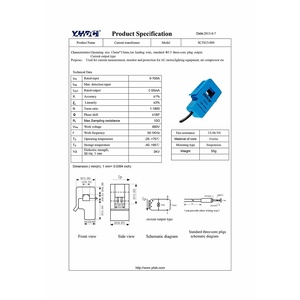

Specifications:

Wire Clamp Diameter: 13mm

Core Material: Ferrite

Working Temperature: -25 to 70 degrees Celcius



SKU TA0336
Barcode # 9351634010776
Brand Raspberry Pi
Shipping Weight 0.3000kg
Shipping Width 0.200m
Shipping Height 0.040m
Shipping Length 0.200m
Shipping Cubic 0.001600000m3
Unit Of Measure ea

100A current transformer

By: on 5 April 2020
This seems to work as I expected. I want to use this device to control loads in my house so that I don't exceed the power being generated by my 6.6kW solar panels. I want to synchronously rectify the current waveform in relation to the voltage waveform so that I can work out the direction of power flow (from the grid to my house or vice versa). I've yet to test the current transformer to see what, if any, phase difference there is between the actual and indicated current (because this will affect my calculation of the direction of power flow).
(4)
