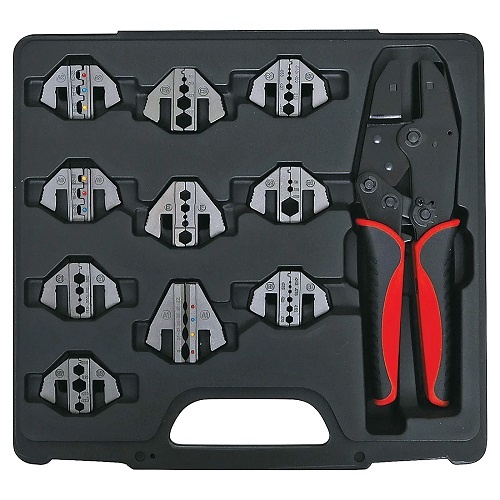

10 Interchangeable Jaw Magnetic Ratchet Universal Crimp Tool Kit

Quick Crimp Interchangeable Jaw Crimp Tool Kit

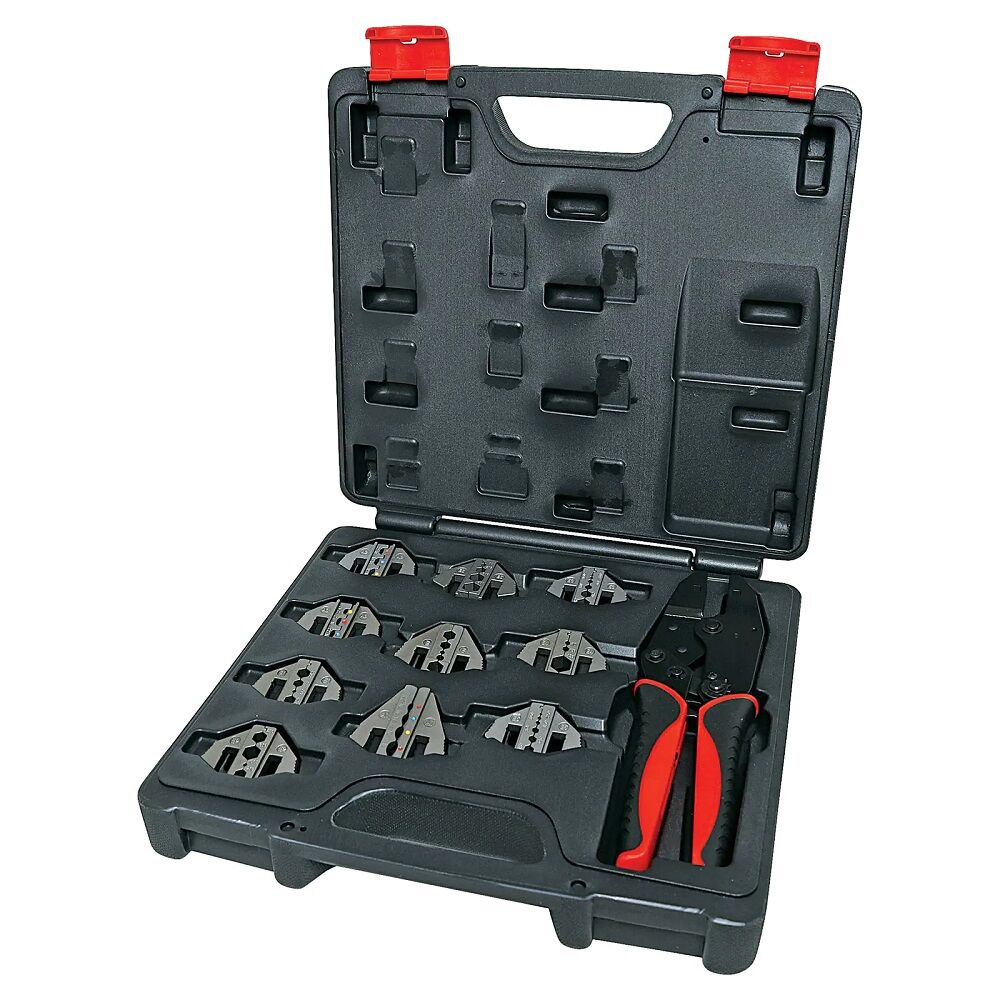

A unique ratchet crimping kit supplied with 10 sets of crimping jaws for suit kwik crimps, insulated terminals, buttsplices and coaxial RF plugs. Each jaw pair slides into the crimper and is held in place by magnets - no fiddly screws or tricky alignment required. All supplied in a handy carry case.


Contents:

1 x Quick Change Ratchet Crimper

1 x E Jaw for RG type Coaxial Cable Connector(BNC)

1 x E1 Jaw for RG type Coaxial Cable Connector(BNC)

1 x E2 Jaw for RG type Coaxial Cable Connector(BNC)

1 x E3 Jaw for RG type Coaxial Cable Connector(BNC)

1 x E4 Jaw for RG type Coaxial Cable Connector(BNC)

1 x E5 Jaw for RG type Coaxial Cable Connector(BNC)

1 x E6 Jaw for RG type Coaxial Cable Connector(BNC)

1 x A1 Jaw for Heat Shrink Butt Connector (0.5-10mm²)

1 x A2 Jaw for Fully Insulated Quick Disconnect (0.5-6mm²)

1 x A3 Jaw for Miniature Insulated Terminal (0.1-1.5mm²)

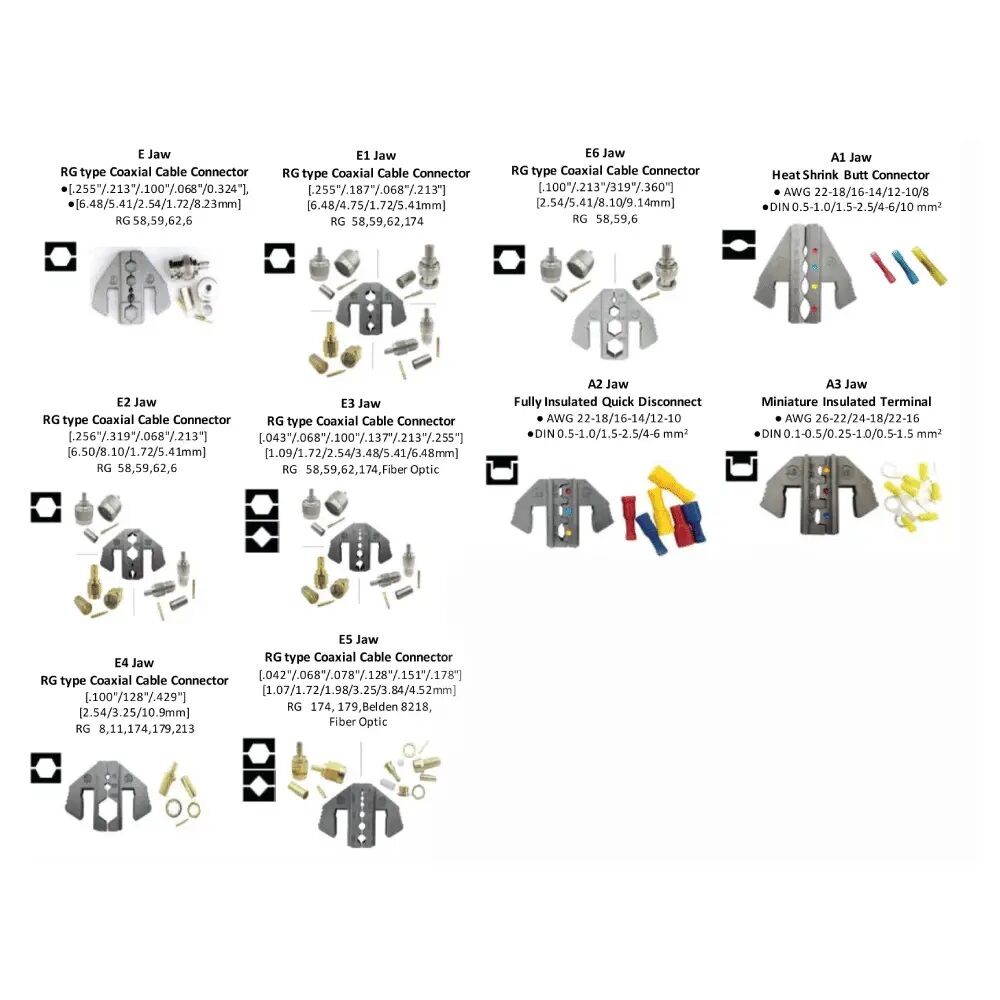

See below for a detailed breakdown on the jaws.



Specifications:



Jaw:

Material: AISI-4140

Procedure: Precision and Wax-Lost Casting

Treatment: Finished with Heat Treatment

Surface Treatment: Zinc Phosphate



Quick Change Ratchet Crimper:

Body: Carbon Steel

Handle: PP+TPR(PAHs Approved)



General:

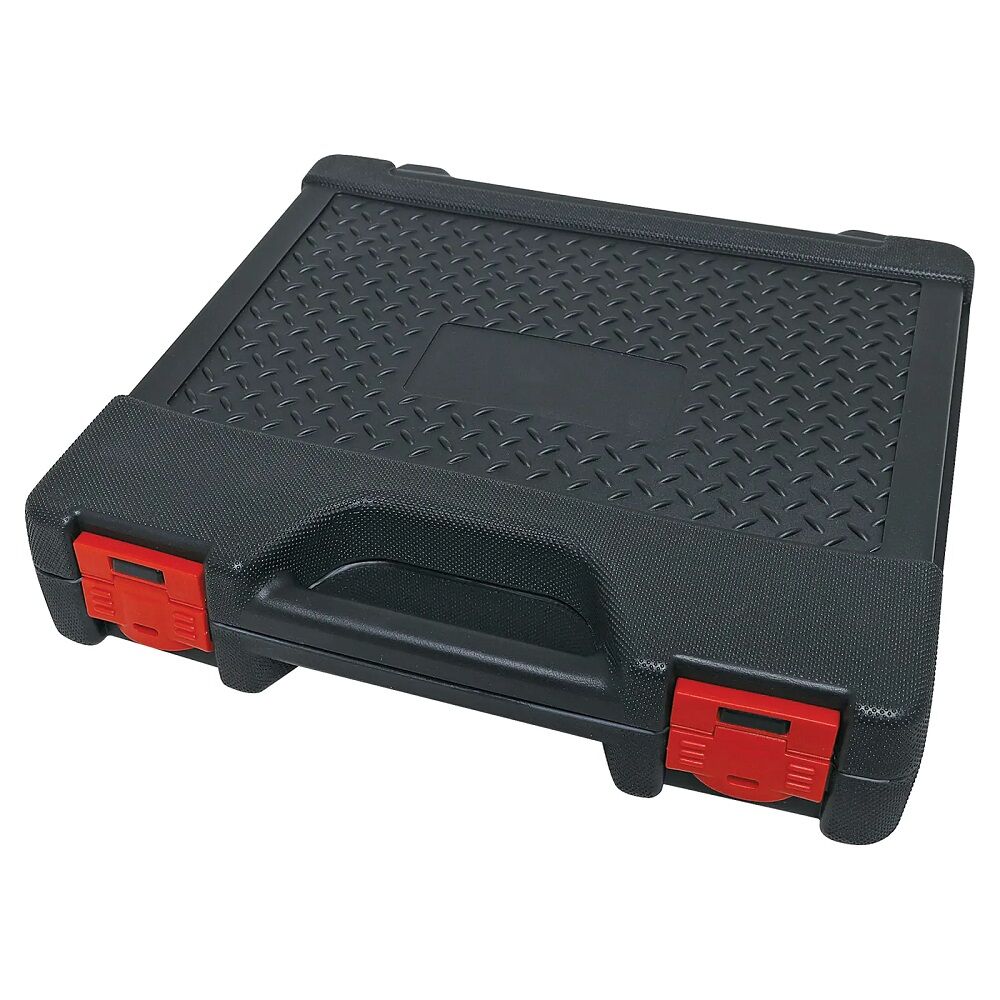

Case Size: 29.7 x 29.2 x 6 cm
