0.75m CAT6A Shielded SSTP / SFTP Patch Cables - Blue

Shielded Cable CAT6A Patch Cables - 0.75m

SKU: AC6203


$9.95
RRP $19.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $9.45 ea
Buy 11 to 20: Pay $8.98 ea
Buy 21 to 100: Pay $8.08 ea
Buy 101 to 500: Pay $7.27 ea




Calculate Shipping

0.75m CAT6A Shielded SSTP / SFTP Patch Cables - Blue

Shielded Cable CAT6A Patch Cables - 0.75m

10GBase-T SHIELDED SSTP, SFTP, STP, STP PiMF



CAT6A ( CAT6 Augmented ) cable supports the higher frequencies required for 10G Ethernet and fully backwards compatible with CAT6 and CAT5e. All of our CAT6A cables are double shielded and fully screened to ensure immunity from Alien Crosstalk, EMI and other external interference and are specified up to frequencies of 500Mhz.
SSTP (Screened Shielded Twisted Pair) or SFTP (Screened Foiled Twisted Pair) cabling offer shielding between the pair sets and an overall sheath shield within the 100 Ohm twisted pair cable.


  • Meets all augmented CAT6A TIA-568-C.2 requirements
  • Ideal Cable for 10 Gigabit Application
  • High Performance Data Communication Cable
  • Guaranteed Performance up to 500Mhz
  • 1kV AC for 60secs dielectric strength
  • Max. 50N pulling tension
  • Minimum 8x cable diameter bending radius
  • Temperature range: 0-50°C (Installation), -10-60°C (Operation)
  • 100Ohms mean characteristic impedance
  • 68% nominal velocity propagation
  • Fully screened for alien crosstalk immunity
  • Fully shielded construction virtually eliminates ANEXT
  • Fire Resistant/Flame Retardant PVC Jacket
  • 50u gold-plated and shielded CAT6A connectors

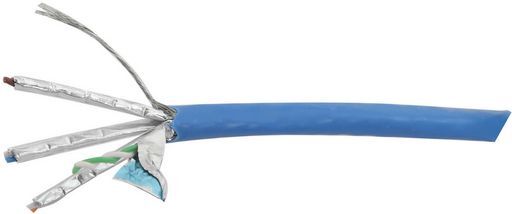

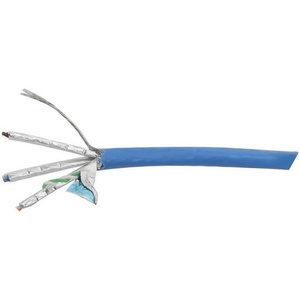

  • Cable features four individually aluminium/Mylar wrapped twisted pairs, and an overall tinned copper braided shield, foamed PE insulation, and an FR PVC jacket
  • 26AWG stranded copper conductors
  • Specially designed RJ45 shielded plug with 50u gold-plated contact
  • Snagless designed boot provides tab protection

Australian Approval
ANSI/TIA 568C.2 Approval
UL Approval UL444
ISO/IEC60332-1 Approval
ISO/IEC60332-3 part 24 Approval
ISO/IEC 11801 Approval
EN50288-4-2, EN50173 Approval

SKU AC6203
Barcode #
Brand Aus Electronics Direct
Shipping Weight 0.2000kg
Shipping Width 0.250m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.001875000m3
Unit Of Measure ea
