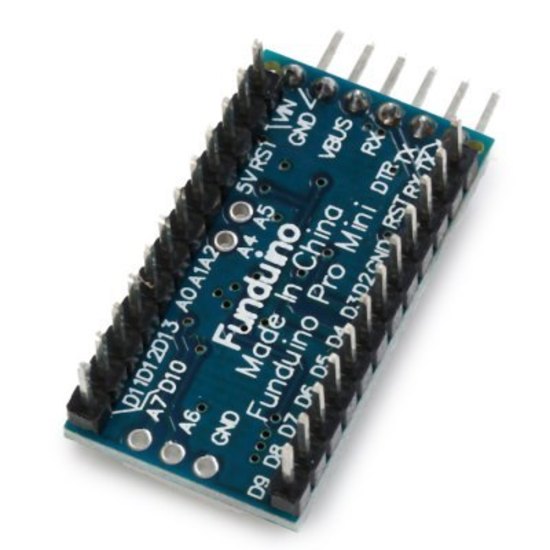

Pro Mini ATMEGA328P Development Board for Arduino Projects
Low profile, small compact and cost effective!
SKU: TA0007
$14.95
RRP $29.95
In Stock
Pro Mini ATMEGA328P Development Board for Arduino Projects
Low profile, small, compact and cost effective micro-controller board.
This Pro Mini microcontroller board for ARduino is based on the ATmega328P 5V 16M. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, an on-board resonator, a reset button, and pin headers are already pre-soldered in place.
Features:
- ATmega328 running at 16MHz with external resonator (0.5% tolerance)
- USB connection off board
- Supports auto-reset
- Max 150mA output
- Over current protected
- Reverse polarity protected
- DC input 5V up to 12V
- On board Power and Status LEDs
- Size：（Long）33mm *（wide1）18 mm *（high）6mm
- Brand: iDuino
3 Month Warranty
| SKU | TA0007 |
| Barcode # | 9351634002535 |
| Brand | iduino |
| Shipping Weight | 0.0500kg |
| Shipping Width | 0.130m |
| Shipping Height | 0.040m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.000520000m3 |
| Unit Of Measure | ea |
Instructions
By: Richard van Raay on 28 August 2021Connect RX to RX, TX to TX. Select Arduino Duemilanove or Diecimila. Press and hold reset button while Compiling Sketch but release when sketch starts to upload.
(4)
Arduino ProMini
By: Stephen White on 18 August 2021I can't resist using these little beauties. On my model railway, I used these for a complete DCC controller/programmer system ($50AU), controlling all signals, working on points with servos. Also looking at RF24 radio comms. You can do a lot with these modules. The smaller memory space still allows for more projects than you would think.
(5)
Arduino promini
By: Stephen White on 5 April 2020A fantastic package for electronics. Easily programmed via its USB I/F adapter. Fits nicely onto Veroboard (female pins required). Perfect for smallish applications where 8 I/P's and 10 O/P's are available. I often mount 2 x proMinis onto a Bd to provide double the I/P's and O/P's. My main use is for my model train layout, but I have also built other devices for general purpose use (tools etc).
(5)
Pro mini Arduino board
By: Josh on 9 May 2019Turned up way sooner than expected and works as it should. Very happy
(5)
Arduino MiniPro to USB 6 pin connector
By: Stephen White on 30 November 2018Architecture is perfect. Device labelling isn't clear. Connections are difficult to ascertain. A wiring diagram is required (still not working).
(3)
