Red LED Digital Volt Meter

Red LED Displays DC Voltage

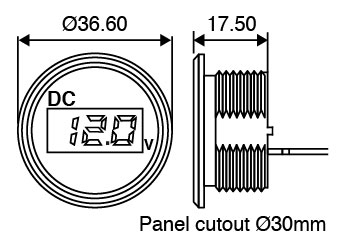

A simple voltage read out for auxiliary batteries in vehicles and caravans. 30Ømm mounting hole. Fitted with 120mm flyleads.

See accessories information below for suitable mounting options or can be directly mounted into any surface with a 30mm hole.


Features

• Compact size
• Digital LED display (3 digits)
• Self-powered from the measuring DC voltage (2.5-30V DC)
• Floating decimal point for better resolution below 10V
• Completely sealed design (IP67)
• Reversed polarity input protection

Specifications

• Voltage Range: DC 2.50~30V
• Current Consumption: <30mA
• Sampling Rate: 5 readings/s
• Resolution: 0.01V (input <10V) / 0.1V (input >10V)
• Connection: 120mm flyleads

  *Specifications are subject to change without notice.
