Wireless HDMI 1080p AV Sender with Wideband IR Extender

Compact Wireless High Definition AV Sender

SKU: AA6046

RRP $499.00
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $217.55 ea
Buy 11 to 20: Pay $206.67 ea
Buy 21 to 100: Pay $196.33 ea

Calculate Shipping

Wireless HDMI 1080p AV Sender with Wideband Infra-red Extender

Transmits uncompressed 1080p HDMI Signals up to 60m in range

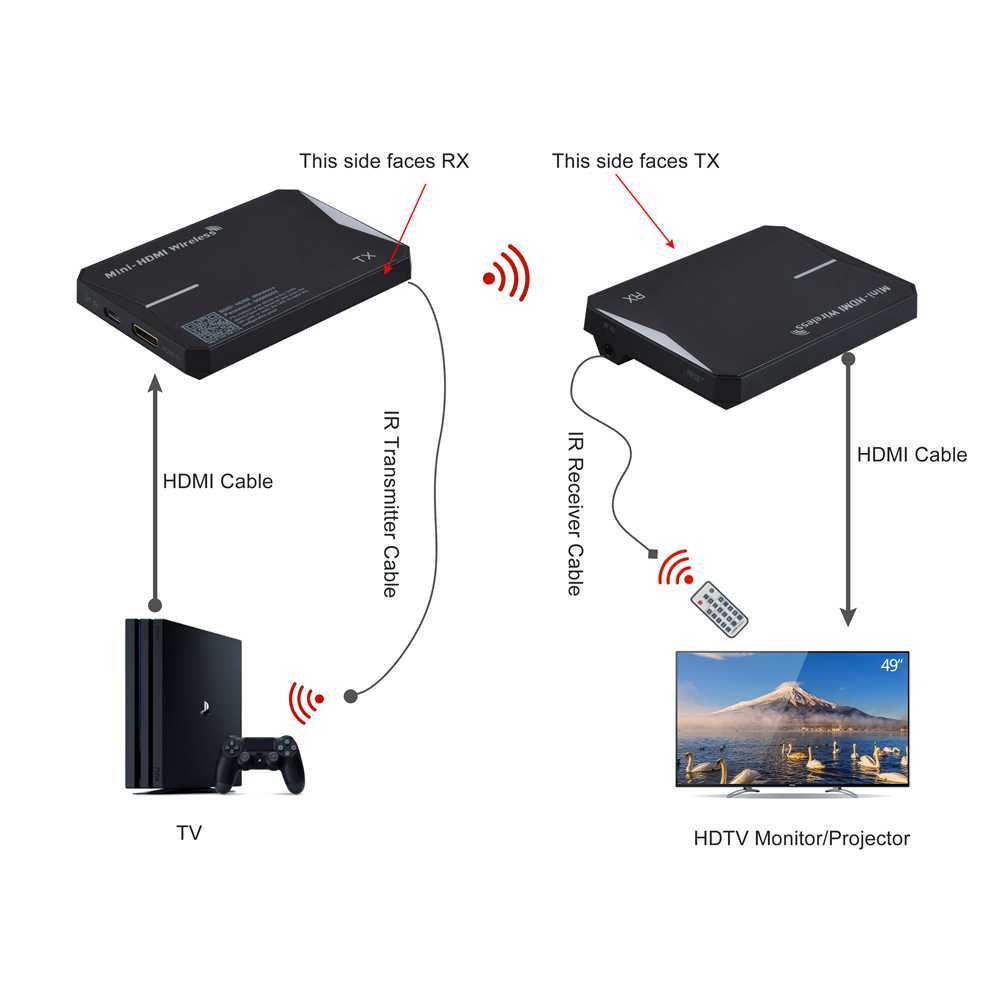

HDMI Wireless 1080p High Definition Transmitter and Receiver. This wireless AV HDMI Sender sends uncompressed high definition video and audio to any HDTV display up to 60 meters (line of sight). It supports resolutions up to 1080p. Full HD, 3DTV, CEC, and 7.1 channels of High Bit Rate (HBR) loss-less digital audio such as Dolby True HD, DTS-HD Master Audio. The Wireless 60G HD is specifically designed to transmit within a room without any wiring. Very simple and easy to set up. Plug and play.


Model name : Mini HDMI Wireless Extender

HDMI resolution : 480P/720P/1080P@50Hz/60Hz

Latency : 180ms

HDMI Audio format : LPCM2.0/48KHz/16Bit

HDMI Max bandwidth : 225MHz

HDMI Max baud rate : 6.75Gbps

Output cable length : 1080P/AWG 26 ≤12m

Antenna type : Built-in 3dBi gain antenna

Wireless standard : IEEE 802.11a/n/ac

Wireless Band : 2.4GHz / 5GHz ISM Band

Max Data rates : up to 150Mbps

Transmit Output Power : 14±2dBm(IPEX)

Transmission distance : up to 60m (in open space)

IR Carrier frequency : 20-60KHz

Power adapter specification : AC 100~240V / USB 5V/1A

Max working current : TX≤750mA / RX≤550mA

Working temperature range : -5 ~ +40℃

Working humidity range : 5 to 85%RH(No Condensation)

Storage temperature : -15 to 55℃

Storage humidity : 5 ~95%RH(No Condensation)

Size : 85*62.5*15 (mm)

Weight : TX 57g/RX 56g


Manual x1
Power Adaptor x2
USB cablex2
HDMI-Mini HDMI cable x2
IR Transmitter cable x1
IR Receiver cable x1



12 Month Warranty

SKU AA6046
Barcode # 9351634000357
Brand Playvision
Shipping Weight 0.5300kg
Shipping Width 0.180m
Shipping Height 0.090m
Shipping Length 0.250m
Shipping Cubic 0.004050000m3
Unit Of Measure ea

Wireless HDMI 1080p AV Sender with Wideband IR Ext

By: on 4 December 2019
this product is excellent and performs above expectation . Its only limitation in my view is the power plug and socket on the unit. They are fragile and the plug tends to dislodge .

HDMI 1080 wireless extender

By: on 11 February 2018
I found this product quick and easy to use. The packaging was low quality. The bases are a little awkward, as when HDMI and the usb cables are attatched, the the bases are barely adequate.

still waiting

By: on 7 September 2017
2 weeks and haven't received it yet...

No more messy cables

By: on 14 May 2017
Excellent product to avoid messy hdmi cables everywhere. Works perfectly
