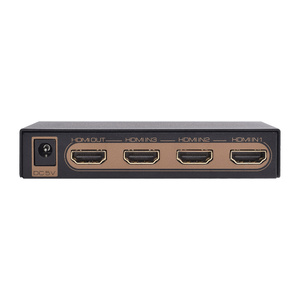

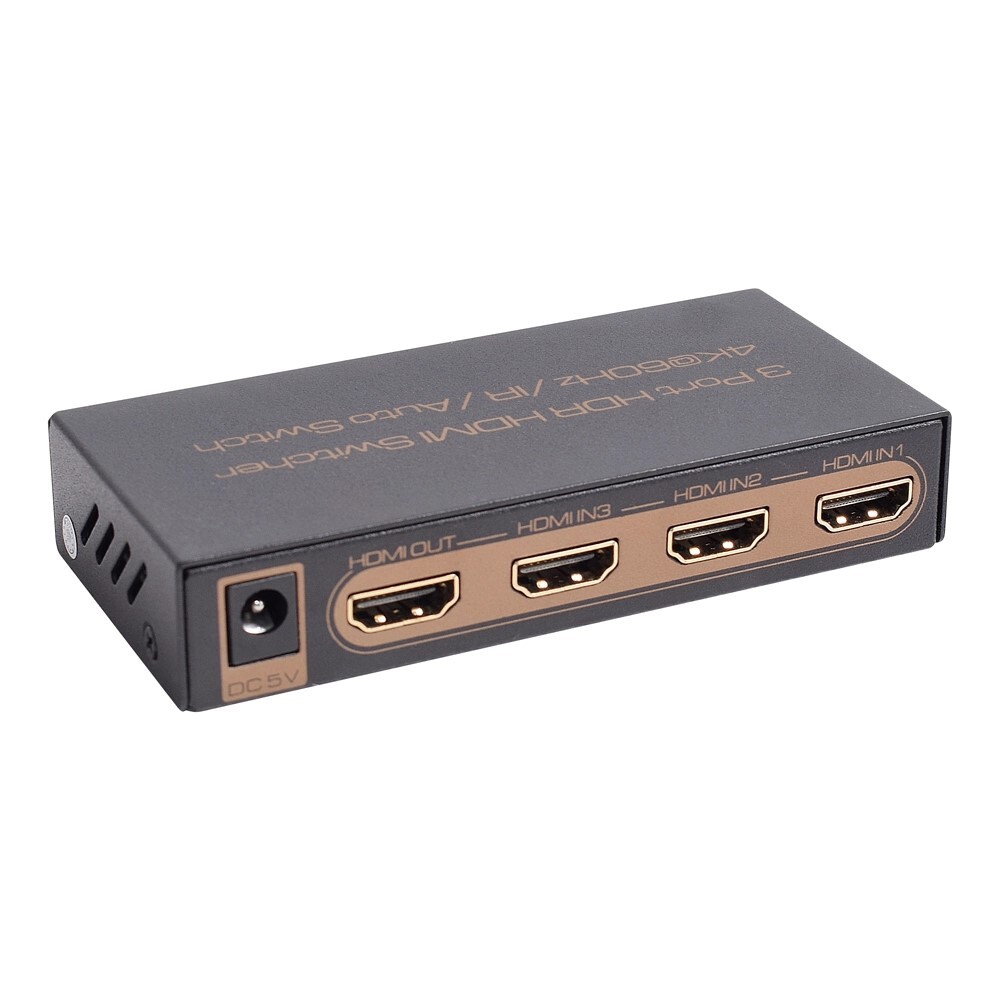

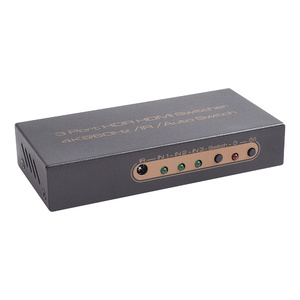

3 Port HDMI 2.0 18GBPS Switcher

3 Port HDMI 2.0 Switcher - Supports HDCP 2.2 and HDR

This is a high performance 3 HDMI AV Input Selector to 1 HDMI output switch box. The system supports all 3D TV formats in addition to all HDTV formats up to 4K @ 60Hz. Furthermore, the remote control gives complete control over the selection of sources and makes the device incredibly user friendly.

3 Way HDMI Switch Box that works with Foxtel IQ4 and Dolby Vision.

Package:

• UHD 3x1 HDMI Switcher(1Pcs)

• 5V/1A DC power adaptor(1Pcs)

• Remote Control(1Pcs)

• 38KHz IR Receiver Cable(1Pcs)

• User manual(1pcs)

Feature:

• Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;

• Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2k@60Hz with 12bit YCBCR 4:2:0;

• Support 3D frame sequential video format up to 1080p@60;

• Support high resolution VESA mode video format up to QSXGA@60Hz;

• Supports Dolby Atmos, LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio

• Supports smart auto switch function;

• Supports IR and Panel button control;

Specification:

• Video Bandwidth: 18Gbps

• Input Ports: 3 x HDMI (Female type)

• Output Ports: 1 x HDMI (Female type)

• Output Resolution: 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz with 12bit YCBCR 4:2:0,VGA~UXGA

• ESD Protection: Human Body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)

• Power Supply: 5 V/1A DC

• Dimensions: 64 mm (W)×155mm(D)×17 mm(H)

• Weight: 180g

• Chassis Material: Metal

• Silkscreen Color: Black

• Operating Temperature: 0 °C~40 °C/ 32 °F~104 °F

• Storage Temperature: −20 °C ~ 60 °C/−4 °F ~140 °F

• Relative Humidity: 20~90 % RH (non-condensing)

User Manual (click below to download):
