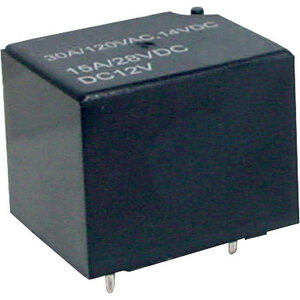

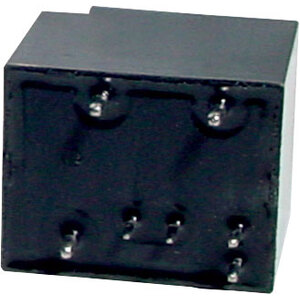

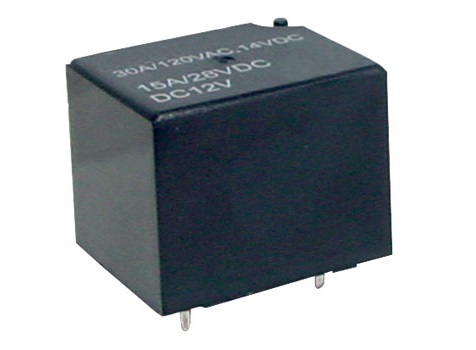

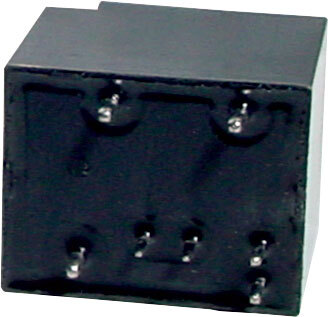

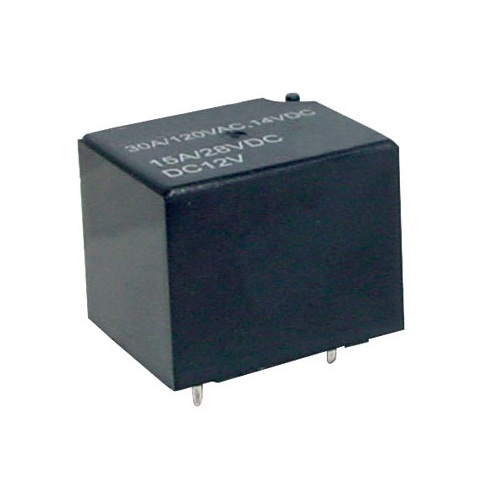

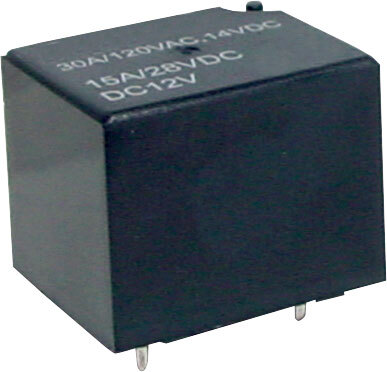

30A 12VDC SPDT PCB Mount Relay

12V Relay

SKU: ER0026

Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $5.70
Buy 11 to 20: Pay $5.41
Buy 21 to 100: Pay $5.14

Calculate Shipping

30A 12VDC SPDT PCB Mount Relay

12V Relay

  • Max switching voltage: 380V AC, 75V DC
  • Max switching current: 30A
  • Max VA (Watts): 2400VA (360W)
  • Contact material: Silver Nickel
  • Coil resistance (12V): 90Ω
  • Max coil power: 1.6W
  • Insulation resistance: >100MΩ @ 500V DC
  • Dielectric strength (for 1 min):
  • 1000V AC between open contacts
  • 5000V AC between coil & contact
  • Electrical life: 100,000 operations
  • Mechanical life: 10 million operations
  • Dimensions: ˜25W x 20L x 20H mm
  • Fully sealed construction (immersion cleanable).

    *Specifications are subject to change without notice.

SKU ER0026
Barcode # 9351634054213
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
