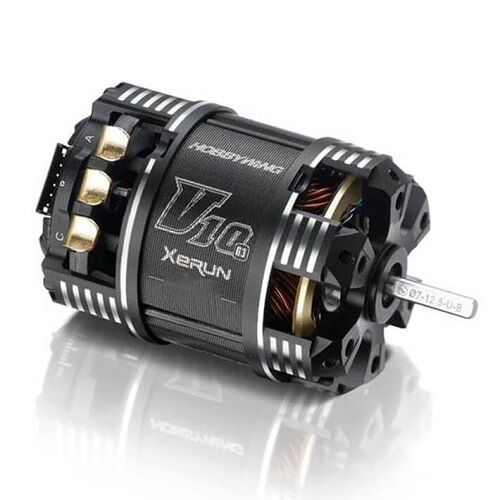

Xerun G3 V10 8.5T Brushless Motor

Precision Engineering for Elite RC Racing

The Hobbywing XeRun V10 G3 is purpose-built for top-tier competitive racing. Designed to outperform its predecessor, the G2 series, the V10 G3 delivers significant gains in RPM, torque, KV, and thermal efficiency, making it a game-changer for serious racers in both Stock and Modified classes.

---

Performance Upgrades Compared to V10 G2

• KV increased by 16%

• Torque improved by 4%

• RPM significantly enhanced, delivering better throttle response and higher top speeds

• Reduced weight for better handling and efficiency:

  • Stock version: 132g (↓21%)

  • Modified version: 161g (↓11%)

---

Precision Control & Fine-Tuned Timing

• High-Precision Hall Sensor System
  Provides clean and accurate rotor position detection, ensuring linear and stable throttle control.

• Balanced Rotor Design
  Optimized for high-RPM stability and smooth performance across all speed ranges.

• Adjustable Mechanical Timing

  • Stock motors (10.5T–25.5T): 30° to 60°

  • Modified motors (3.5T–8.5T): 20° to 50°
    Clearly marked rear-end timing indicators ensure easy, precise, and repeatable tuning.

---

Advanced Cooling & Maintenance-Friendly Design

• High-Flow Can Structure
  The redesigned can and large opening structure maximize airflow around the stator core, improving cooling efficiency and motor stability.

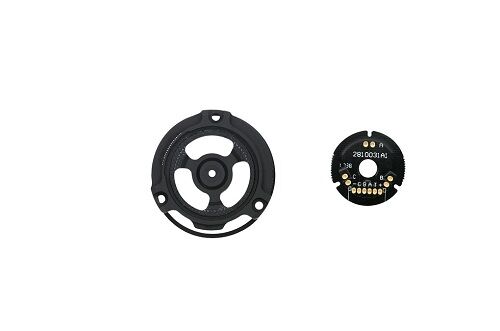

• Precision Machined End Plates

  • Stock motors (10.5T–21.5T): Feature additional machining for optimal heat dissipation.

  • Modified motors (5.5T–8.5T): Engineered to block dirt and debris while allowing airflow.

• Modular, Rebuildable Design
  Easy to disassemble for routine maintenance or component replacement—ideal for racers who demand longevity from their gear.

---

Durability Under Extreme Conditions

• High-Performance Stator Core

• 200°C Heat-Resistant Wire and Rotor

• High-Precision, High-Strength Bearings

• Gold-Plated Copper Solder Tabs
  These premium-grade components ensure outstanding performance, long service life, and thermal resilience, even in the most demanding race environments.

---

Timing Adjustment Guide

The XeRun V10 G3 offers wide mechanical timing adjustability to help racers fine-tune motor behavior based on their application and track conditions.

• Default Timing Settings:

  • Stock: 40°

  • Modified: 30°

Note: Increasing timing boosts RPM but also raises motor temperature and reduces efficiency. Always ensure your ESC is properly tuned and your gear ratio is appropriate before increasing timing.

Post-Tuning Temperature Monitoring:

• Use a temperature gun, Hobbywing LCD programmer, or the Hobbywing WiFi Link App to monitor motor temps.

• If overheating occurs, allow the motor to cool, then reduce timing or adjust the Final Drive Ratio (FDR).

---

Race-Approved & Certified

The XeRun V10 G3 is fully compliant with major international racing standards:

• IFMAR

• ROAR

• EFRA

• BRCA
  Also certified under RoHS, CE, and FCC regulations.

---

Key Features at a Glance

• 16% Increase in KV, 4% Boost in Torque

• Lightweight Design: As low as 132g

• Fully Rebuildable & Maintenance-Friendly

• Wide Timing Adjustment Range (20°–60°)

• High-Precision Hall Sensor & Balanced Rotor

• High-Temperature-Resistant Components (Rated to 200°C)

• Optimized for Cooling & Debris Resistance

• Compliant with Global Racing Rules

---

Take Your Racing to the Next Level

Whether you're building for Stock class dominance or chasing podiums in Modified, the Hobbywing XeRun V10 G3 delivers championship-level performance, engineering excellence, and reliability you can trust.



Specifications

Scale: 1/10^th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2

Relevant Parameters
KV Rating: 3970
LiPo Cells: 2S LIPO
No-load Current(A): 2.8
Max. Power Output(W): 298
Amp at the Max. Power Out: 84

Size & Weight
O.D (mm): 35.9(1.41in)
Length (mm): 51.2(2.01in)
Shaft Diameter (mm): 3.17(0.125in)
Shaft Length (mm): 13.3(0.52in)
Weight: 163(5.75oz)
Front Bearing: D9*D4*t4
Rear Bearing: D8*D3*t4

Other Parameters
Stock Rotor: 5-12.5
Timing: 20-50 Degrees(Adjustable)
Applications: 1/10^th Drift, 2WD Off-road Racing
