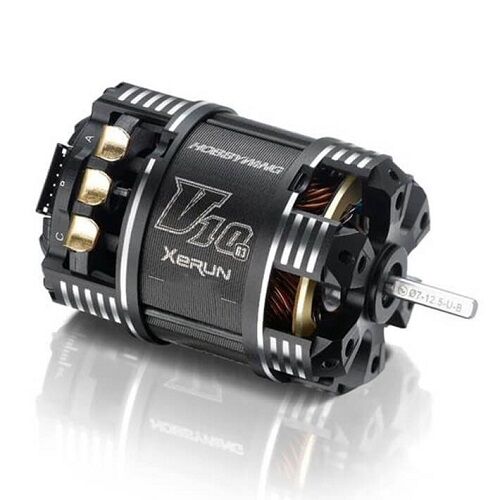

Xerun G3 V10 7T Brushless Motor

Engineered for World-Class Racing Performance

The HobbyWing XeRun V10 G3 motor is meticulously designed for high-level competitive racing, offering enhanced power, greater efficiency, and improved durability. Compared to the previous generation (V10 G2), the G3 delivers significant upgrades to meet the demands of today’s racers.

---

Performance Improvements

• RPM: Significantly increased for faster response

• KV Rating: Increased by 16%

• Torque: Increased by 4%

• Weight Reduction:

  • Stock Motor: 132g (21% lighter than G2)

  • Modified Motor: 161g (11% lighter than G2)

---

Precision Timing Adjustment

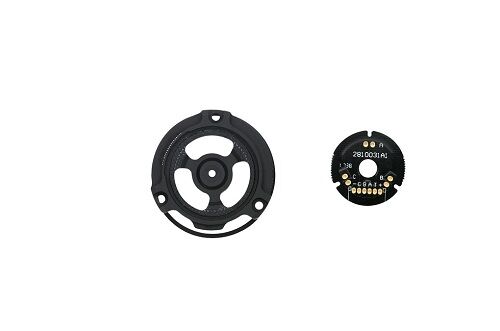

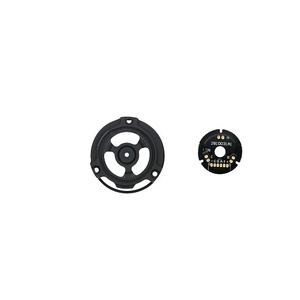

• Integrated high-precision Hall sensor

• Balanced rotor for ultra-smooth and linear throttle response

• Adjustable mechanical timing for fine-tuning performance:

  • Stock Motors (10.5T–25.5T): 30°–60° (default: 40°)

  • Modified Motors (3.5T–8.5T): 20°–50° (default: 30°)

• Clearly marked timing indicators ensure consistent, stable settings

---

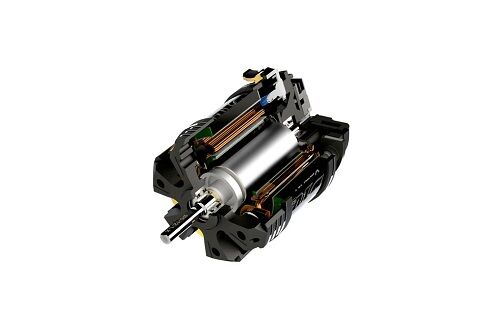

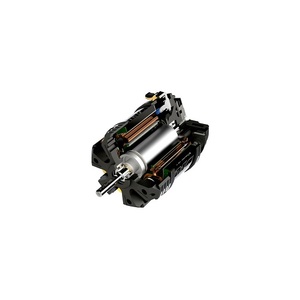

Advanced Can Design for Cooling and Maintenance

• Innovative vented motor can increases airflow around the stator core

• End plates are specially machined to improve cooling:

  • 10.5T–21.5T motors: More material removed to reduce heat

  • 5.5T–8.5T motors: Machined for dust protection while still enabling airflow

• Rebuildable design: Easy to dismantle for cleaning or replacing worn components

---

Built to Last

• High-performance stator core

• Heat-resistant wiring rated to 200°C

• Precision-balanced rotor also rated to 200°C

• High-strength, low-friction bearings

• Heavy-duty copper solder tabs for reliable power delivery

---

Motor Timing and Temperature Guidelines

• Increasing motor timing boosts RPM, but also raises motor temps and lowers efficiency

• Always verify ESC programming and gear ratios before increasing timing

• Use appropriate monitoring tools to check motor temperature:

  • Infrared thermometer

  • HobbyWing LCD Program Box

  • WiFi Module + HobbyWing WiFi Link App

• If temperatures are excessive:

  1. Let the motor cool

  2. Lower timing or increase Final Drive Ratio (FDR)

  3. Re-test after a full pack

---

Certifications & Compliance

• Fully compliant with international racing regulations:

  • IFMAR, ROAR, EFRA, BRCA

• Certified by RoHS, CE, FCC

---

Key Features Summary

• High-precision Hall sensor

• Adjustable timing (20°–60°, depending on model)

• Rebuildable for long-term use

• Enhanced airflow for better cooling

• Lightweight, race-ready design

• Heat-resistant rotor and wire (200°C rated)

• Copper tabs for high-current applications

• Suitable for all major racing formats



Specifications

Scale: 1/10^th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2

Relevant Parameters
KV Rating: 4800
LiPo Cells: 2S LIPO
No-load Current(A): 3.5
Max. Power Output(W): 364
Amp at the Max. Power Out: 106

Size & Weight
O.D (mm): 35.9(1.41in)
Length (mm): 51.2(2.01in)
Shaft Diameter (mm): 3.17(0.125in)
Shaft Length (mm): 13.3(0.52in)
Weight: 161 (5.68oz)
Front Bearing: D9*D4*t4
Rear Bearing: D8*D3*t4

Other Parameters
Stock Rotor: 5-12.5
Timing: 20-50 Degrees(Adjustable)
Applications: 1/10^th Drift, 2WD Off-road Racing
