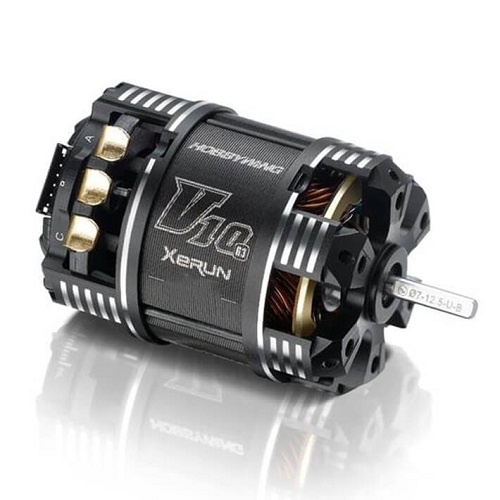

Xerun G3 V10 5T Brushless Motor

Precision Engineering for Top-Tier Racing

The HobbyWing XeRun V10 G3 motor is engineered specifically for elite-level competition, offering exceptional power, precision, and efficiency. Built on the legacy of the G2 series, the G3 Stock and Modified motors deliver significant performance enhancements for serious racers.

---

Enhanced Performance

• RPM Boost: Substantially higher than the previous G2 series

• KV Increase: Up by 16%

• Torque Gain: Improved by 4%

• Weight Reduction:

  • Stock Motor: Now only 132g (21% lighter)

  • Modified Motor: Weighs just 161g (11% lighter)

---

Advanced Timing Adjustability

Fine-tune your motor’s output with adjustable mechanical timing:

• Stock Motors (10.5T–25.5T): 30° to 60°

• Modified Motors (3.5T–8.5T): 20° to 50°

• Default Timing:

  • Stock: 40°

  • Modified: 30°

Clear timing marks on the rear endplate ensure stability and ease of tuning.

---

Superior Cooling & Serviceability

• Optimized Can Design:
  Improves airflow around the stator for efficient cooling.

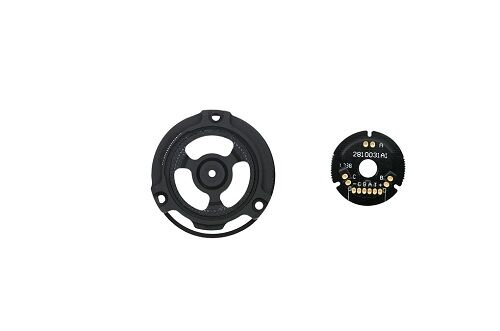

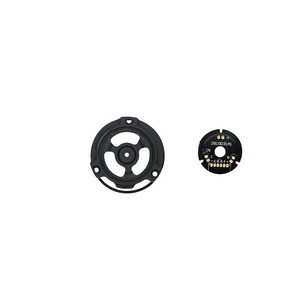

• Machined Endplates:

  • 10.5T–21.5T motors: Extra material removed for better heat dissipation

  • 5.5T–8.5T motors: Dirt-blocking design without sacrificing airflow

• Modular Structure:
  Easy disassembly for cleaning, maintenance, or part replacement.

---

Built to Withstand Extreme Conditions

• 200°C Heat-Resistant Rotor & Wire

• High-Performance Stator Core

• High-Precision & High-Strength Bearings

• Gold-Plated Copper Solder Tabs for minimal resistance

These premium components ensure outstanding durability and consistent high performance, even under demanding race conditions.

---

Timing Adjustment Tips

Increasing timing can boost RPM, but also increases motor heat and reduces efficiency. Before making timing changes:

• Ensure your ESC is properly programmed

• Match your setup with the correct gear ratio (FDR)

• Monitor motor temps using:

  • Infrared thermometer

  • HobbyWing LCD Programmer

  • HobbyWing WiFi Link App

If temperatures become too high:

• Stop usage immediately

• Allow the motor to cool

• Adjust timing or increase gear ratio before continuing

---

Race-Approved

Fully compliant with international and regional competition standards:

• IFMAR, ROAR, EFRA, BRCA

• Certified by RoHS, CE, FCC

---

Key Features at a Glance

• High Precision Hall Sensor

• Adjustable Mechanical Timing

• Rebuildable, Modular Design

• Enhanced Airflow and Cooling Efficiency

• Heat-Resistant Components (Rated 200°C)

• Lightweight & Durable

• Officially Compliant with Major Racing Bodies

---

Ready to Race. Built to Win.

Whether you’re pushing for podiums in Stock or Modified racing, the XeRun V10 G3 is your next competitive edge. With upgraded KV, reduced weight, and unmatched reliability, it’s the perfect choice for racers who demand the best.



Specifications

Scale: 1/10^th,1/12^th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2

Relevant Parameters
KV Rating: 6500
LiPo Cells: 2S LIPO
No-load Current(A): 5.5
Max. Power Output(W): 443
Amp at the Max. Power Out: 118

Size & Weight
O.D (mm): 35.9(1.41in)
Length (mm): 51.2(2.01in)
Shaft Diameter (mm): 3.17(0.125in)
Shaft Length (mm): 13.3(0.52in)
Weight: 159(5.60oz)
Front Bearing: D9*D4*t4
Rear Bearing: D8*D3*t4

Other Parameters
Stock Rotor: 5-12.3
Timing: 320-50 Degrees(Adjustable)
Applications: Modified Class of 1/10^th & 1/12^th On-road Racing
