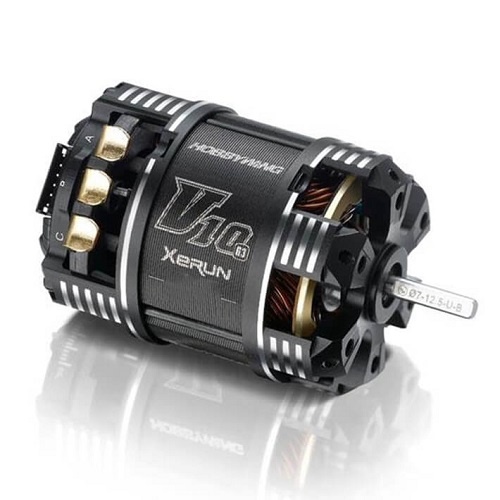

Xerun G3 V10 10.5T Brushless Motor

Built for Pure Racing. Tuned for Champions.

The HobbyWing XeRun V10 G3 is the latest evolution in competitive brushless motor technology, engineered specifically for high-level 1/10 scale racing. Whether you're racing Stock or Modified, the V10 G3 delivers more power, greater efficiency, and next-level durability over the previous G2 generation.

---

Performance Upgrades Over the G2 Series

• KV Increase: Up by 16%

• Torque Boost: Improved by 4%

• Significantly Higher RPM for better throttle response and top speed

• Lightweight Design:

  • Stock Motor: 132g (21% lighter)

  • Modified Motor: 161g (11% lighter)

---

Precision Timing & Rotor Control

• Built-in High-Precision Hall Sensor
  Ensures clean, accurate rotor positioning for smooth and linear throttle control.

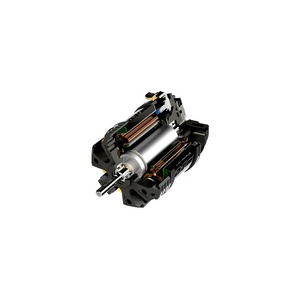

• Balanced Rotor Construction
  Delivers optimal performance and low vibration at high RPM.

• Wide Timing Adjustability

  • Stock Motors (10.5T–25.5T): Adjustable from 30° to 60°

  • Modified Motors (3.5T–8.5T): Adjustable from 20° to 50°

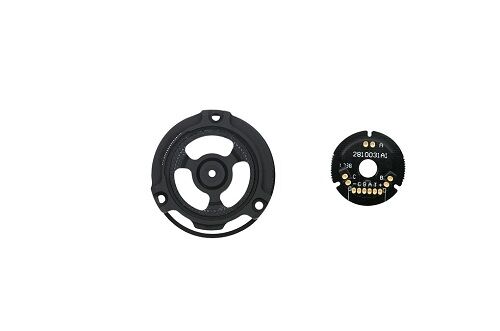

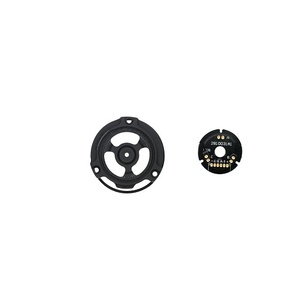

    Precision timing marks on the rear plate help you tune for performance with confidence.

---

Engineered for Cooling & Easy Maintenance

• Optimized Can Design
  Maximizes airflow around the stator for improved heat dissipation and efficiency.

• Machined End Plates

  • Stock motors (10.5T–21.5T): Further lightened for even better cooling

  • Modified motors (5.5T–8.5T): Designed to block dirt and debris without sacrificing airflow

• Rebuildable Modular Design
  Easily service your motor, replace worn parts, and keep it race-ready with minimal downtime.

---

Built to Endure the Heat of Competition

• 200°C Heat-Resistant Wire & Rotor

• High-Strength, High-Precision Bearings

• Gold-Plated Copper Solder Tabs with low internal resistance

• High-Performance Stator Core
  All components are chosen to provide maximum reliability, peak output, and long service life under extreme race conditions.

---

Tuning & Timing Info

The XeRun V10 G3 gives you full control over your motor’s output characteristics:

• Default Timing:

  • Stock: 40°

  • Modified: 30°

Increasing timing can boost RPM but also raises heat. Always tune responsibly.

Before adjusting timing:

• Ensure your ESC is properly programmed

• Consider increasing your gear ratio (FDR)

• Monitor motor temps using:

  • Infrared temperature gun

  • HobbyWing LCD programmer

  • HobbyWing WiFi Link App

If temperatures rise too high, reduce timing or adjust gear ratio to prevent damage.

---

Compliant & Race-Ready

Certified for use in top-level competition:

• IFMAR

• ROAR

• EFRA

• BRCA
  Also compliant with RoHS, CE, and FCC standards.

---

Key Features at a Glance

• High-Precision Hall Sensor System

• Adjustable Timing (30°–60° Stock / 20°–50° Modified)

• Rebuildable Modular Design

• Lightweight Aluminum Construction

• Enhanced Cooling Structure

• Heat-Resistant Rotor & Wiring (Rated to 200°C)

• ROAR, IFMAR, EFRA, BRCA Approved

---

Unleash Winning Performance

Whether you're chasing lap records or dominating the podium, the HobbyWing XeRun V10 G3 delivers the precision, power, and reliability serious racers demand. Upgrade to the motor that’s built to win.



Specifications

Scale: 1/10^th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2

Relevant Parameters
KV Rating: 4500
LiPo Cells: 2-3S LIPO
No-load Current(A): 5.5
Max. Power Output(W): 260
Amp at the Max. Power Out: 74

Size & Weight
O.D (mm): 35.9(1.41in)
Length (mm): 50.5(1.99in)
Shaft Diameter (mm): 3.17(0.125in)
Shaft Length (mm): 14(0.55in)
Weight: 133(4.69oz)
Front Bearing: D9*D4*t4
Rear Bearing: D8*D3*t4

Other Parameters
Stock Rotor: 7.3-12.5-U
Timing: 30-60 Degrees(Adjustable)
Applications: 1/10^th Drift, Stock Class of 1/10^th
