50mm 24V DC Maglev Bearing Cooling Fan

Cooling Fans and Accessories

SKU: HF0019

RRP $29.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $14.20 ea
Buy 11 to 20: Pay $13.49 ea
Buy 21 to 99: Pay $12.82 ea

Calculate Shipping

50mm 24V DC Maglev Bearing Cooling Fan

Cooling Fans and Accessories

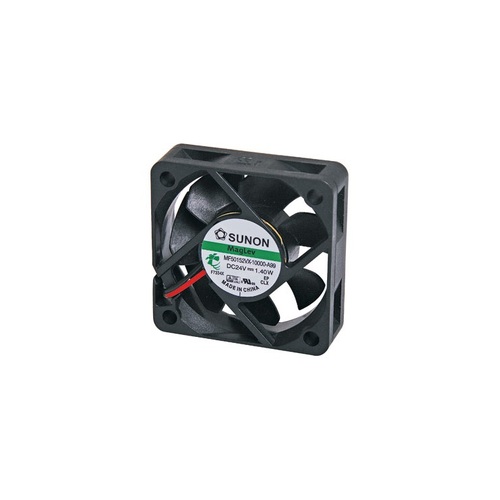

A 24V DC 50mm Sunon Maglev/Vapo Bearing Cooling Fan with thermoplastic frame.

Designed for long-life and minimal noise operation.

Sunon® fans are manufactured to a very high standard and hold CSA and UL listings.



Mechanical Characteristics

  • Motor Design: Single phase, 4 poles brushless DC motor
  • Bearing System: Vapo bearing system
  • Frame Material: Thermoplastic PBT of UL94V-0
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 4x 4.3mm holes
  • Weight: 33g
  • Dimensions: 50 x 50 x 15mm

Electrical Characteristics

  • Rated Voltage: 24V DC
  • Rated Current: 55mA (64mA max)
  • Rated Power Consumption: 1.32W (1.54W max)
  • Safety Power Consumption: 1.40W
  • Operating Voltage Range: 8~27.6V DC
  • Starting Voltage: 8V DC (25°C Power On/Off)
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C

Performance Characteristics

  • Rated Speed: 7200 RPM ±15% at rated voltage
  • Air Flow: 18.6 CFM
  • Static Pressure: 0.31 Inch-H2O
  • Noise Level: 38.1dB(A)
  • Insulation Class:  UL Class A
  • Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
  • Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
  • Life Expectancy: 60,000 hours at 40°C, 65% RH, 90% CL
  • Protection: Automatic restart, polarity protection
SKU HF0019
Barcode # 9321758198810
Brand Sunon
Shipping Weight 1.0000kg
Shipping Width 0.100m
Shipping Height 0.030m
Shipping Length 0.050m
Shipping Cubic 0.000150000m3
Unit Of Measure ea
