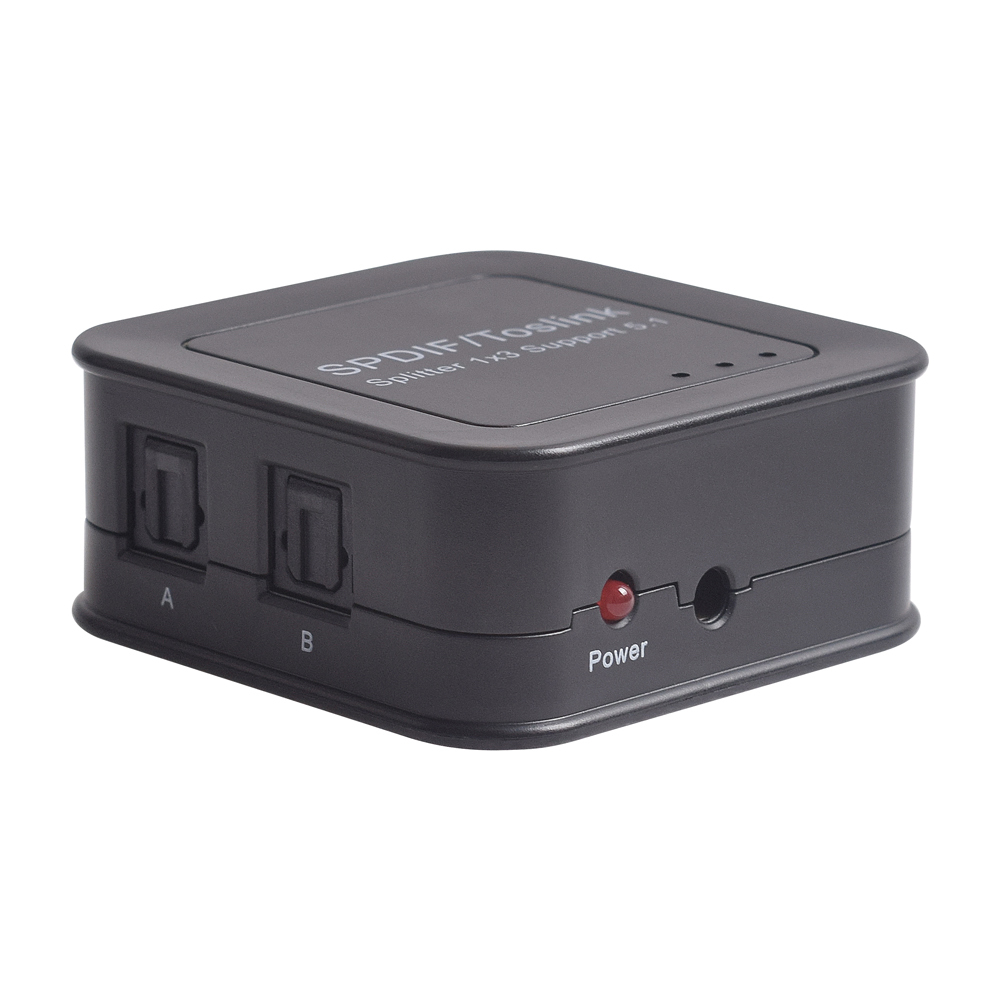

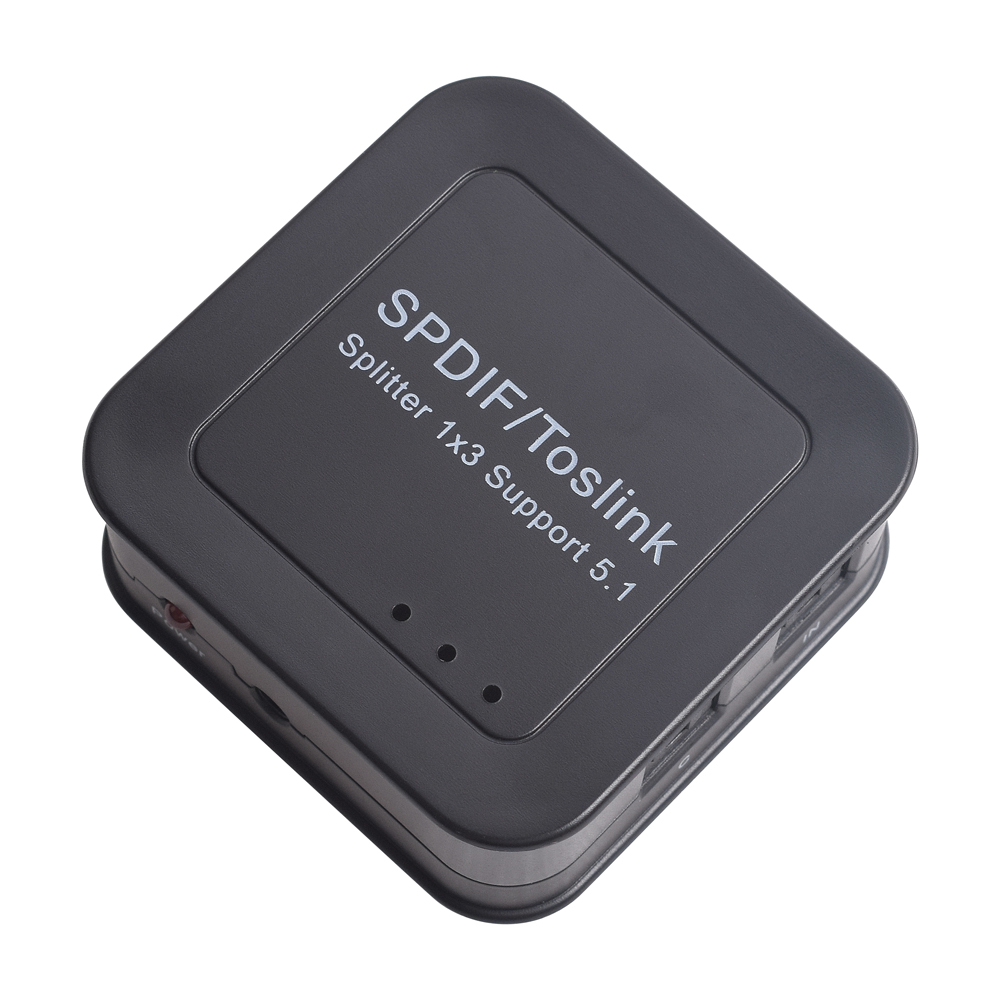

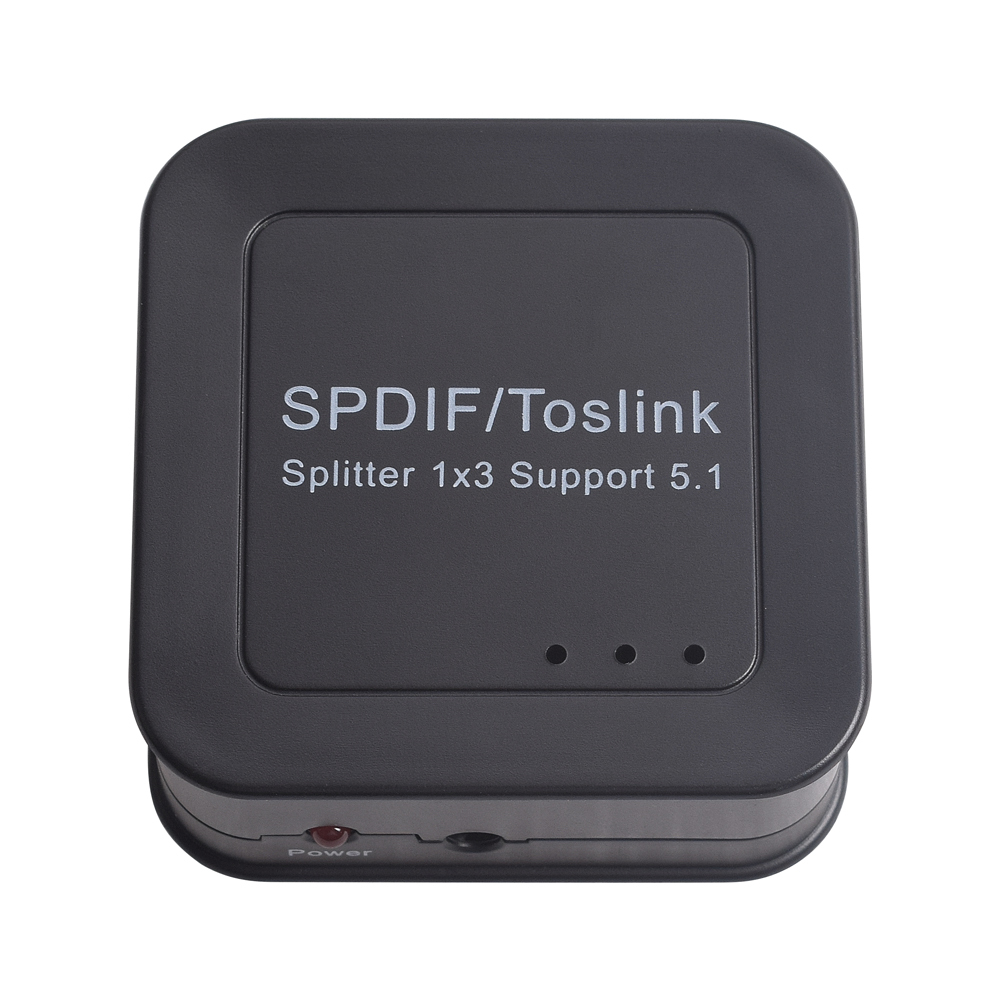

3 Way Toslink Digital Audio Splitter

Splits One Audio Output to Three

This SPDIF/TosLink Digital Optical Audio splitters distributes one  digital optical SPDIF Toslink source to three.

Features:

• One ways of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.

• Audio format support : LPCM2.0/DTS/Dolby-AC3

• Support signal retiming

• Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.

• Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine

• No loss of quality

• Installs in minutes

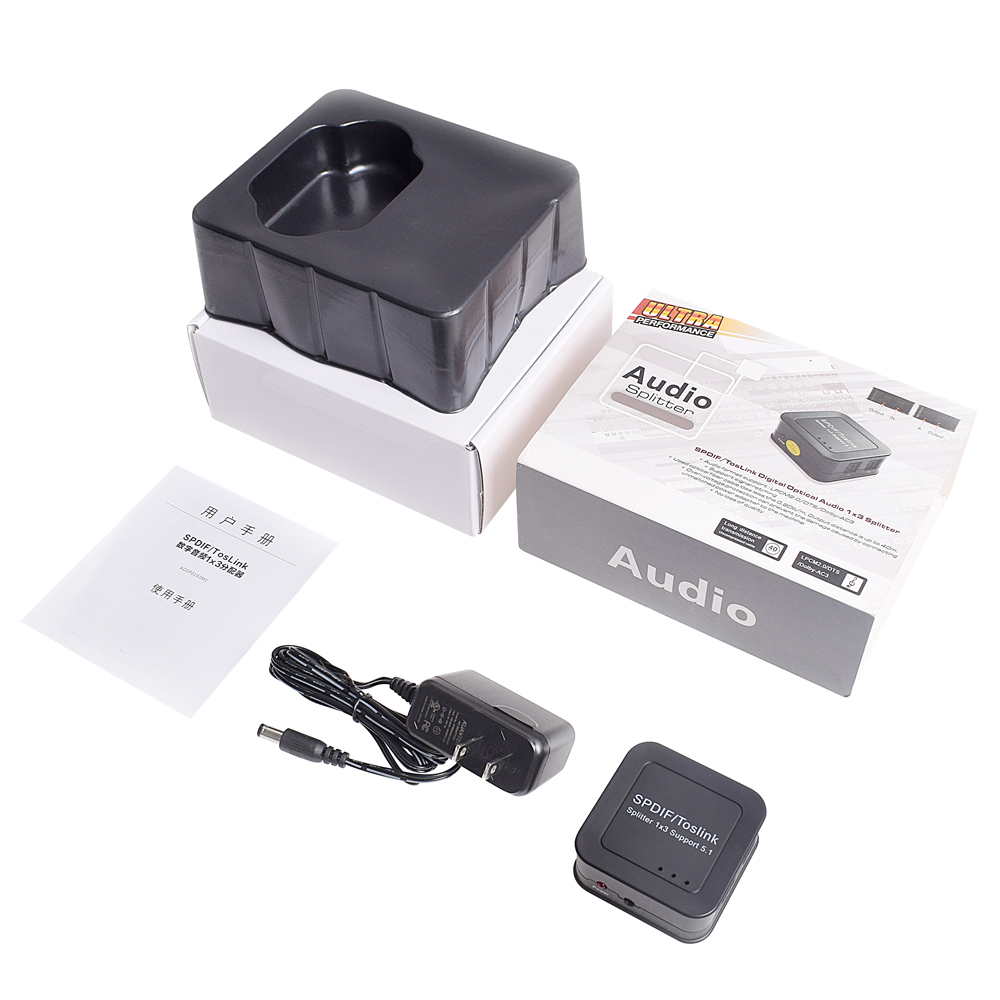

Contents:

1. 5V Power Adaptor

2. Operation Manual

3. 3 Way Audio Splitter



Specifications:

Support audio format : LPCM2.0/DTS/Dolby-AC3

Peak wavelength : 650nm

Max baud rate : 16Mbps

Output cable distance : ≤40m(Use the optical fiber cable loss less the 0.2Db/m )

Max working current : 100mA

Power adapter : DC5V/500mA

Operating Temperature range : (0 to +40℃)

Operating Humidity range : 5 to 90%RH (No Condensation)

Dimension (L x W x H) : 54x54x23.5 (mm)

Weight : 35g
