Analogue to Digital Audio Decoder Converter

Analogue to Digital Audio Converter - Decodes Analgue Audio and Converts to Digital

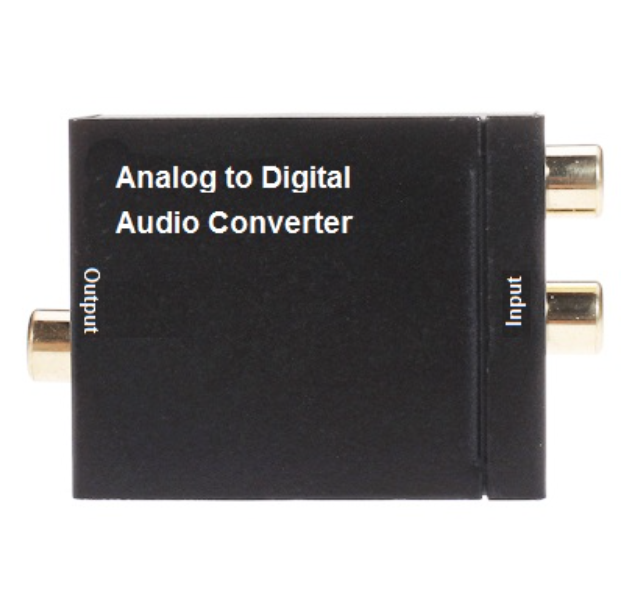

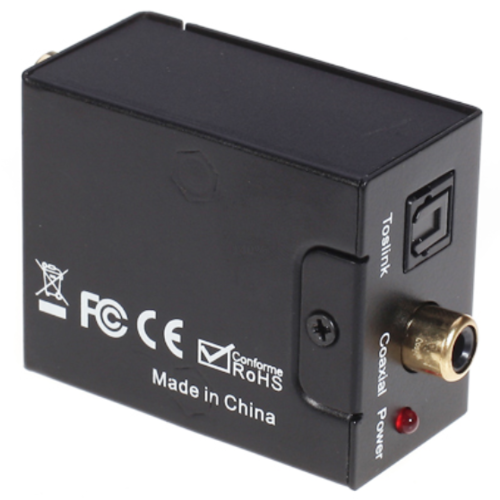

The Analog to Digital Audio Decoder Converter is designed to simultaneously convert analog audio signals from L/R input to Coaxial SPDIF and Toslink Fibre Optic outputs. The digital audio output signal is a 2-channel uncompressed LPCM (Linear Pulse Code Modulation) with a sampling rate of 48 KHz. Both Optical Fiber and Coaxial cables can run up to 5 meters from the device while still providing a reliable and loss-less audio signal. This gadget is both compact and easy to install, making it incredibly useful for the home or office.

Features:

This Converter has many features that enable it to perform in a superior manner. Among those features you will find:

• Supports uncompressed 2-channel LPCM (Linear Pulse Code Modulation) digital audio signal output.
• Has an output sampling rate of 48 KHz.
• Provides electromagnetic-noise-free transmission.
• Easy to install and operate.

Specifications:

Signal Inputs/Output:

• Input Audio: L/R Audio (Stereo)
• Output Audio: Coaxial and Toslink digital audio

Connector:

• Input Audio Connector: 2XRCA（R/L）(Stereo)
• Output Audio Connector: Toslink、1XRCA(Coaxial)
• Sampling Rate: 48KHz
• Size(L-W-H): 51X41X<26MM>
• Weight (Net) : <78g>

Warranty:

• Limited Warranty: 1 Year Parts and Labor
• Environmental: Operating Temperature <0 ℃> to +<70℃>
• Operating Humidity: 10% to 85 % RH (no condensation)
• Storage Temperature: <-10℃> to +<80℃>
• Storage Humidity: 5% to 90 % RH (no condensation)

Power Requirement:

• External Power Supply: 5V DC@<1A>
• Power Consumption: 1 watts (max)
• Converter Unit: FCC,CE,UL
• Power Supply: UL,CE,FCC

Accessories Adapter:

• AC Power Adapter
• User Manual: English Version

User Manual (click below to download)
