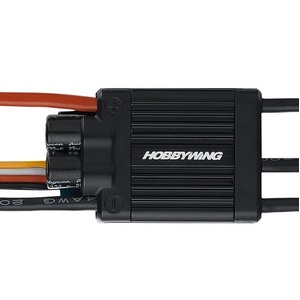

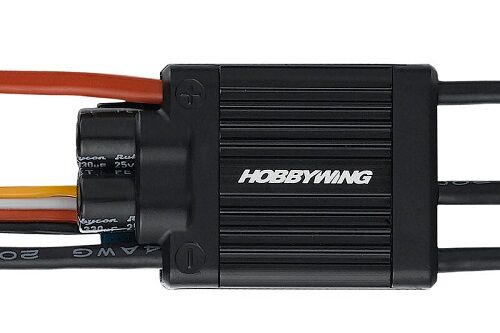

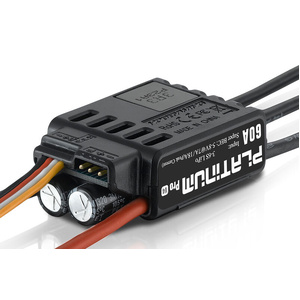

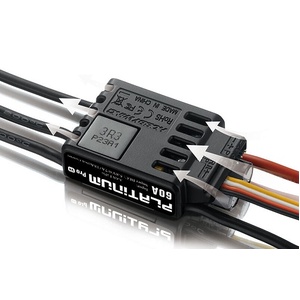

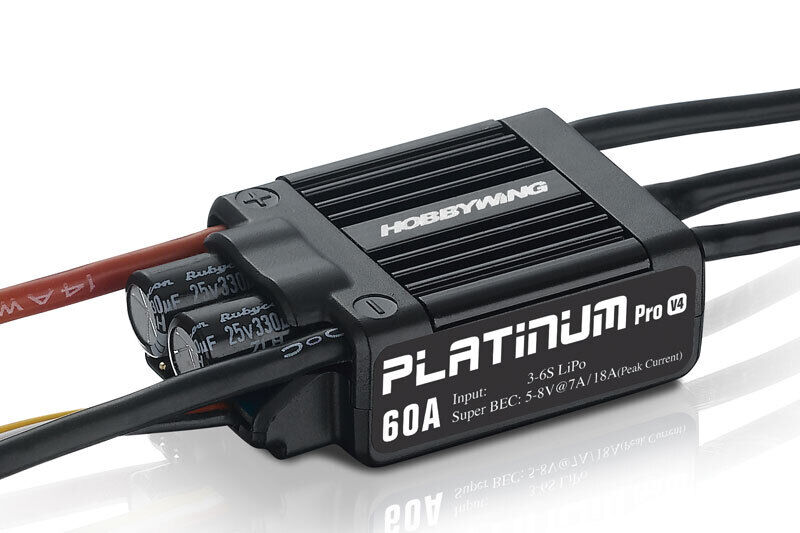

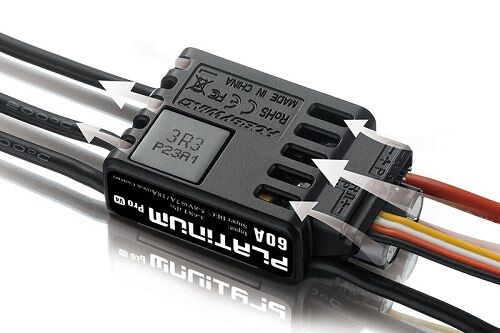

Platinum 60A V4 ESC

Take control of your flight experience with the Platinum 60A V4 ESC, a high-performance electronic speed controller designed for 3D helicopters, fixed-wing aircraft, and performance-focused multirotors. Built with cutting-edge software and hardware, this ESC delivers ultra-smooth throttle response, advanced governor performance, and intelligent protections — all in a compact, lightweight form.

---

Key Features

Ultra-Smooth Soft Start-Up

Perfect for helicopters, the Platinum V4 features an adjustable soft start-up time (8–25 seconds), minimizing tail drift and ensuring stable spool-up. Ideal for precise takeoffs and delicate flying conditions.

High-Performance Speed Governing

Powered by a fast 32-bit processor running at 72MHz and Hobbywing’s advanced governor algorithm, this ESC delivers:

• Consistent and accurate RPM control

• Adjustable governor parameters

• Stable, responsive flight in all conditions

High Voltage BEC Built In

Power your HV servos and electronics directly:

• Adjustable Output Voltage: 5V to 8V (in 0.1V steps)

• Continuous Current: 7A

• Peak Current: 18A
  No need for an external BEC — this one has the power built in.

DEO Technology (Active Freewheeling)

Hobbywing’s patented Driving Efficiency Optimization improves system performance with:

• Quicker throttle response

• Reduced ESC temperature

• Increased overall flight time and efficiency

Four Programmable Brake Modes

Switch between brake settings based on your flying style:

• Brake Disabled

• Normal Brake (adjustable force)

• Proportional Brake (linked to throttle position)

• Reverse Brake (motor reverses via spare transmitter channel, great for fixed-wing landing realism)

Built-In Protections for Peace of Mind

Includes Hobbywing’s full suite of safety features:

• ESC thermal protection

• Capacitor thermal protection (patented)

• ESC overload and overcurrent

• Throttle signal loss (Fail Safe)

• Low voltage cutoff
  Plus, a built-in arc-proof circuit reduces spark on connection, extending the life of your battery and connectors.

Advanced Programming & Telemetry Support

Program and monitor with:

• LCD Program Box

• Hobbywing WiFi Module (iOS/Android app compatible)

---

Specifications

Parameter	Details
ESC Type	Brushless
Continuous Current	60A
Peak Current	80A
Input Voltage	3–6S LiPo
BEC Output	5–8V adjustable, 7A (18A peak)
Soft Start	Adjustable (8–25 seconds)
Brake Modes	4 (Disabled / Normal / Proportional / Reverse)
Firmware Upgradable	Yes

---

Wires & Connectors

• Input Wires: 14AWG Red/Black (100mm)

• Output Wires: 14AWG Black (75mm × 3)

• Connectors:

  • Input: None (user-installed)

  • Output: 3.5mm Gold Female

---

Size & Weight

• Dimensions: 48.0 × 30.0 × 15.5mm

• Weight: 49g

---

Recommended For:

• 3D & sport RC helicopters (up to 500 class)

• Fixed-wing aircraft with precise throttle demands

• Multirotors requiring high voltage servo support and smooth control

---

Why Choose the Platinum 60A V4?
Because you need an ESC that offers power, reliability, and professional control — all in one lightweight package. Whether you're practicing smooth autorotations or pushing hard aerobatics, the Platinum V4 series ensures your electronics keep up with your performance.
