Ethernet Shield for Arduino Boards

Connect an Arduino development board to the internet

SKU: TA0030


$27.45
RRP $39.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $26.07 ea
Buy 11 to 20: Pay $24.77 ea
Buy 21 to 100: Pay $23.53 ea




Calculate Shipping

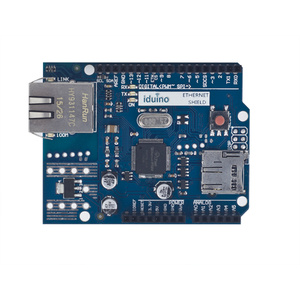

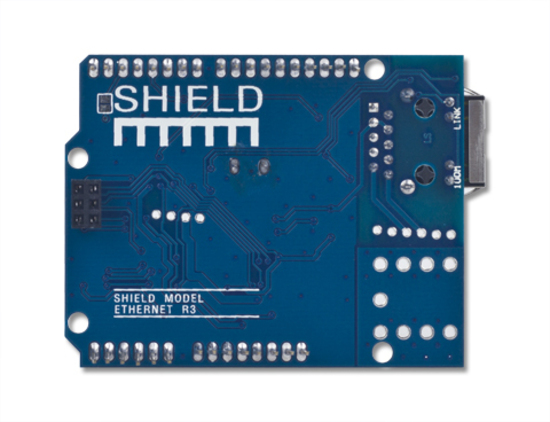

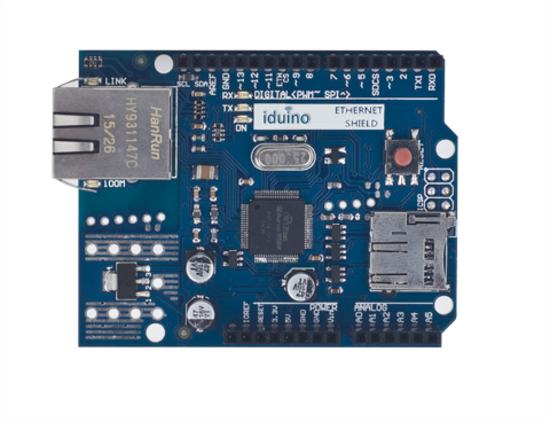

Ethernet Shield for Arduino Boards

Connect an Arduino development board to the internet

An Ethernet Shield allows an Arduino development board to be connect to the internet. It is based on the Wiznet W5100 ethernet chip. The Wiznet W5100 provides a network stack capable of both TCP and UDP. It supports up to four simultaneous socket connections. Use the Ethernet library to write sketches which connect to the internet using the shield. The ethernet shield connects to an Arduino board using long wire-wrap headers which extend through the shield. This keeps the pin layout intact and allows another shield to be stacked on top.

 Feature:



  • IEEE802.3af compliant

  • Low output ripple and noise (100mVpp)

  • Input voltage range 36V to 57V

  • Overload and short-circuit protection

  • 9V Output

  • High efficiency DC/DC converter: typ 75% @ 50% load

  • 1500V isolation (input to output)

Test Code:

#include <SPI.h>
#include <Ethernet.h>
// Enter a MAC address and IP address for your controller below.
// The IP address will be dependent on your local network:
byte mac[] = {0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };
IPAddress ip(192,168,1,129);//modifying according your own IP
// Initialize the Ethernet server library
// with the IP address and port you want to use
// (port 80 is default for HTTP):
EthernetServer server(80);
void setup() {
// Open serial communications and wait for port to open:
Serial.begin(9600);
while (!Serial) {
; // wait for serial port to connect. Needed for Leonardo only
}
// start the Ethernet connection and the server:
Ethernet.begin(mac, ip);
server.begin();
Serial.print("server is at ");
Serial.println(Ethernet.localIP());
}
void loop() {
// listen for incoming clients
EthernetClient client = server.available();
if (client) {
Serial.println("new client");
// an http request ends with a blank line
boolean currentLineIsBlank = true;
while (client.connected()) {
if (client.available()) {
char c = client.read();
Serial.write(c);
// if you've gotten to the end of the line (received a newline
// character) and the line is blank, the http request has ended,
// so you can send a reply
if (c == '\n' && currentLineIsBlank) {
// send a standard http response header
client.println("HTTP/1.1 200 OK");
client.println("Content-Type: text/html");
client.println("Connection: close"); // the connection will be closed after completion
//of the response
client.println("Refresh: 5"); // refresh the page automatically every 5 sec
client.println();
client.println("<!DOCTYPE HTML>");
client.println("<html>");
// output the value of each analog input pin
for (int analogChannel = 0; analogChannel < 6; analogChannel++) {
int sensorReading = analogRead(analogChannel);
client.print("analog input ");
client.print(analogChannel);
client.print(" is ");
client.print(sensorReading);
client.println("<br />");
}
client.println("</html>");
break;
}
if (c == '\n') {
// you're starting a new line
currentLineIsBlank = true;
}
else if (c != '\r') {
// you've gotten a character on the current line
currentLineIsBlank = false;
}
}
}
// give the web browser time to receive the data
delay(1);
// close the connection:
client.stop();
Serial.println("client disonnected");
}
}



CLICK HERE TO SEE OTHER ARDUINO SHIELDS

CLICK HERE TO SEE OTHER ARDUINO PRODUCTS

3 Month Warranty

SKU TA0030
Barcode # 9351634002689
Brand iduino
Shipping Weight 0.0800kg
Shipping Width 0.130m
Shipping Height 0.040m
Shipping Length 0.100m
Shipping Cubic 0.000520000m3
Unit Of Measure ea

Ethernet Module for Arduino

By: on 3 February 2022
Great product at a very reasonable price. Works great and easy to install.
