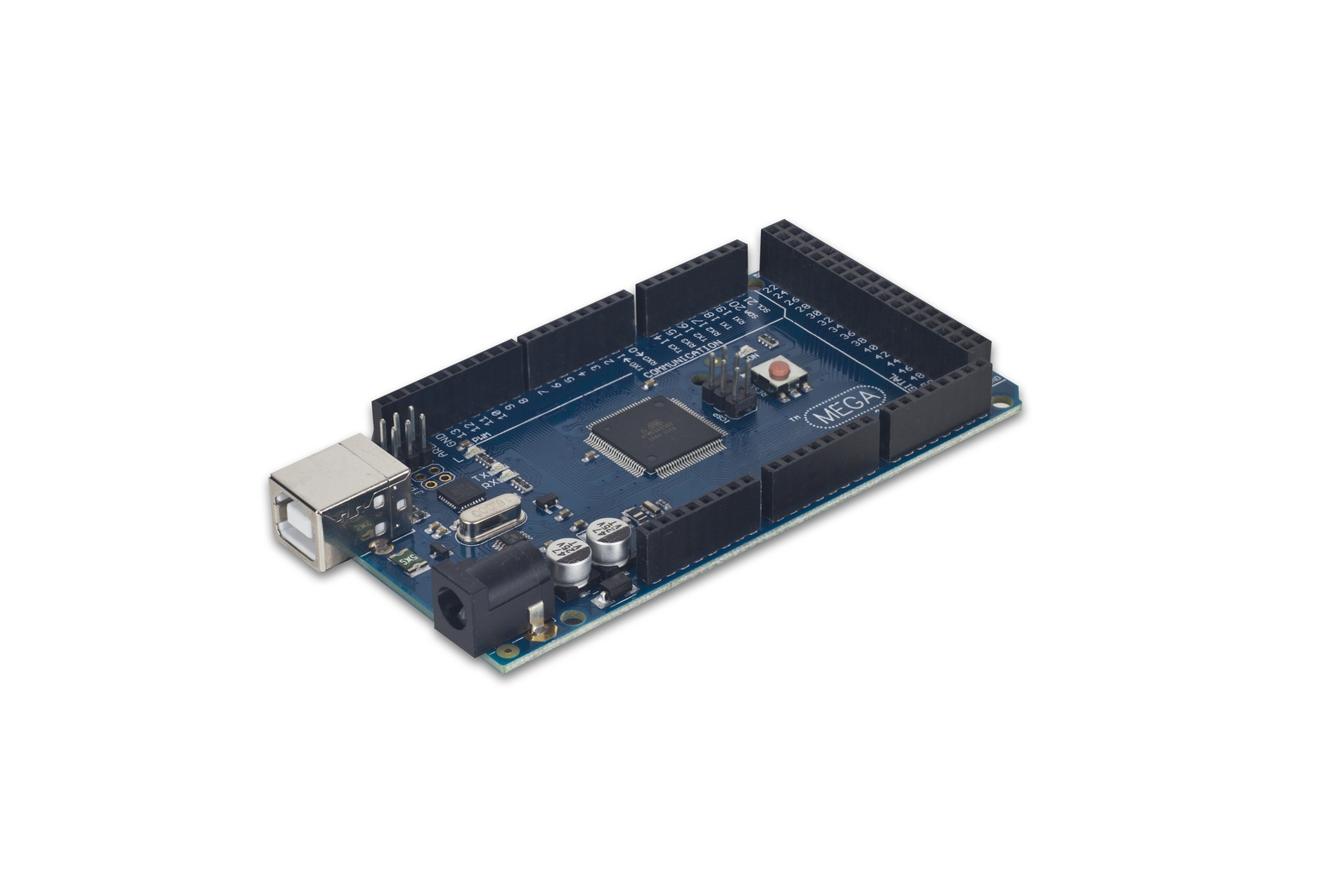

Mega Development Board with USB cable for Arduino
Mega Arduino Development Board with USB Cable - Powerful microcontroller with 54 digital inputs and outputs.
The Mega 2560 is a microcontroller board based on the ATmega2560 . It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-20V
Digital I/O Pins: 54 (of which 15 provide PWM output)
Analog Input Pins: 16
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 256 KB of which 8 KB used by bootloader
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16 MHz
3 Month Warranty
|Unit Of Measure||ea|
Great TestbedBy: Richard Martin on 30 March 2018I chose this Arduino Development Board as it has more of everything. I can now develop an 8 I/P thermocouple sensor array displaying alpha numerical O/P for wood fired ovens and then port to a more compact unit. It will remain as my testbed for other projects
Mega ArduinoBy: Paul on 9 December 2017I have used this board to accomplish things that cannot be done with the usual ATMega328 based product. Many more peripherals or I/O lines, more memory and so on make your larger and some specialised tasks a lot easier. At the price advertised at AusElectronicsDirect it is a much better bet than the run of the mill Arduino kit.
Quality ProductBy: William Stevens on 12 November 2017This development board is being used with 48 channel relays for Christmas Lights and is excellent and reliable.
Arduino Mega 2560By: Greg on 6 September 2017Installed and operating my 3D printer!
