Digital to Analogue Audio Decoder Converter

Digital to Analogue Audio Converter

SKU: AA6004

RRP $49.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $26.07 ea
Buy 11 to 20: Pay $24.77 ea
Buy 21 to 100: Pay $23.53 ea

Calculate Shipping

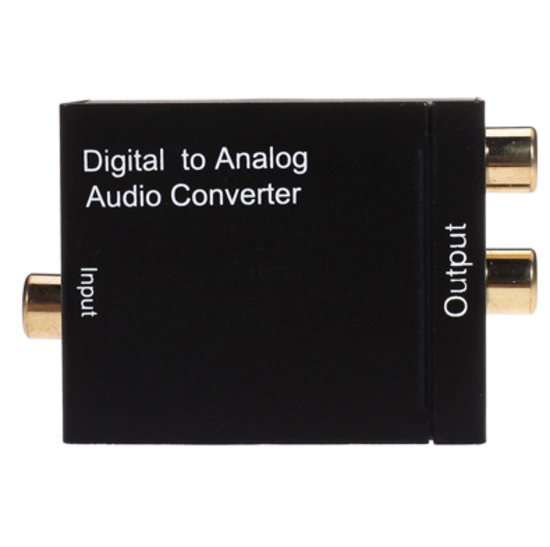

Digital to Analogue Audio Converter

Decodes Digital Audio and Converts to Analogue

This Digital to Analog Audio Decoder Converter is designed for either home or professional audio switching. It converts Coaxial or Toslink digital SPDif Fibre Optic audio signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA-style jacks. This Converter is small in size and quite easy to install.


This Converter has many features that enable it to perform in a superior manner. Among those features you will find:

  • Converts Coaxial or Toslink digital audio signals to analog L/R audio

  • Supports sampling rate at 32, 44.1, 48 and 96 KHz.

  • 24-bit S/PDIF incoming bit stream on left and right channels

  • Provides electromagnetic-noise-free transmission.

  • Easy to install and simple to operate.


  • Signal Inputs/ Output

  • Input Audio: Coaxial or Toslink digital audio

  • Output Audio: L/R audio


  • Input Audio Connector: Toslink、1XRCA(Coaxial)

  • Output Audio Connector: 2XRCA(R/L)

  • Sampling Rate: 32, 44.1, 48 and 96 KHz


  • Size: (L-W-H) 51X41X26MM

  • Weight (Net): 78g


  • Limited Warranty: 1 Year Parts and Labor


  • Operating Temperature: 0 ℃ to +70℃

  • Operating Humidity: 10% to 85 % RH (no condensation)

  • Storage Temperature: -10℃ to +80℃

  • Storage Humidity: 5% to 90 % RH (no condensation)

Power Requirement:

  • External Power Supply: 5V DC@2A

  • Power Consumption: 0.5 watts (max)

Regulatory Approvals:

  • Converter Unit: RCM, FCC, CE, UL

  • Power Supply: SAA, UL, CE, FCC

Accessories Adapter:

  • AC Power Adapter: SAA Safety Approved

  • User Manual: English Version

User Manual (click below to download)

3 Month Warranty

SKU AA6004
Barcode # 9351634000166
Brand Playvision
Shipping Weight 0.2300kg
Shipping Width 0.110m
Shipping Height 0.080m
Shipping Length 0.140m
Shipping Cubic 0.001232000m3
Unit Of Measure ea
Assembled Length 0.100m
Assembled Height 0.010m
Assembled Width 0.120m

Excellent Solution

By: on 31 October 2018
Bought a new TV with no analog audio output. I own a pair of wireless Sennheiser headphones but now had no way to connect them. This is a simple and cheap solution that has meant avoiding buying a new set of headphones!

Simple Digital to Analogue Audio Converter

By: on 20 May 2018
Product is super easy to install and works a treat


By: on 25 October 2017
Works amazing very reliable.

Wireless headphones for TV

By: on 22 September 2017
New smart TV usually only have a digital out. I wanted to use my Sennheiser wireless headphones but they only had analogue inputs. This digital to analogue decoder does the job. Great little product and I highly recommend it.

Digital to Analogue Audio Decoder Converter

By: on 11 August 2017
Works like a dream. No issues at all. Plugged in and worked straightaway.
