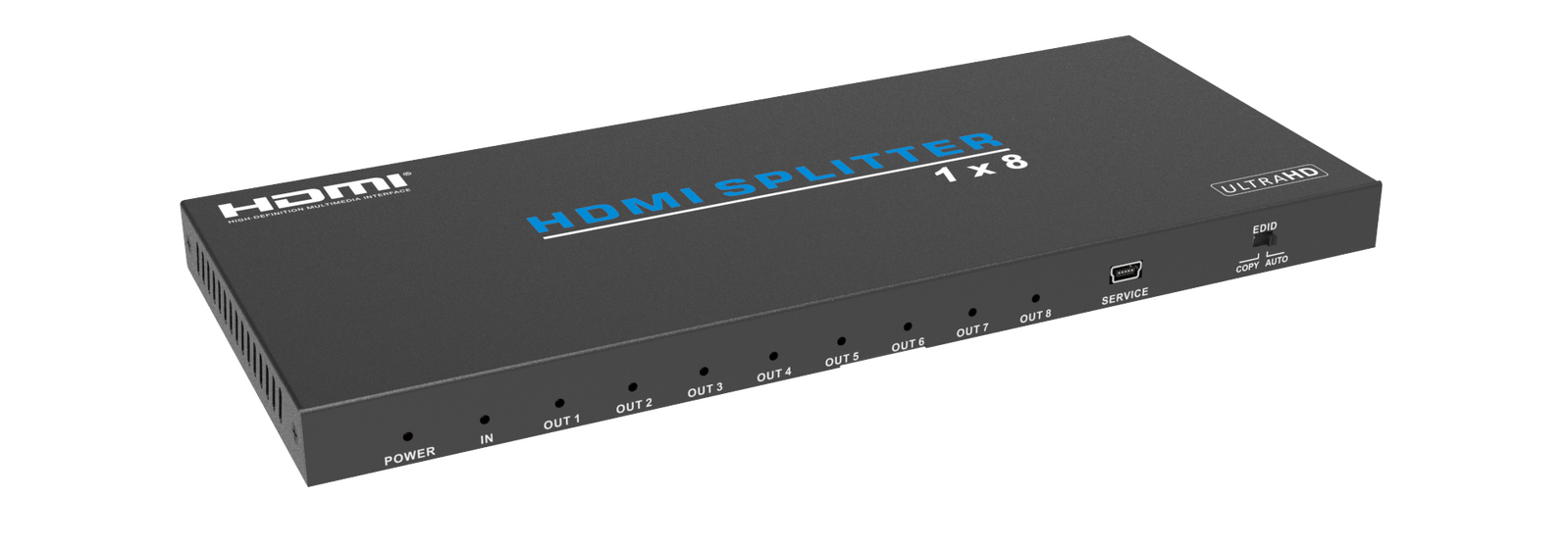

8 Way HDMI 2.0 18GBPS UHD Splitter
8 Way HDMI Splitter with HDCP 2.2 and EDID Settings
SKU: AA6098
8 Way HDMI 2.0 18GBPS UHD Splitter
8 Way HDMI Splitter with HDCP 2.2 and EDID Settings

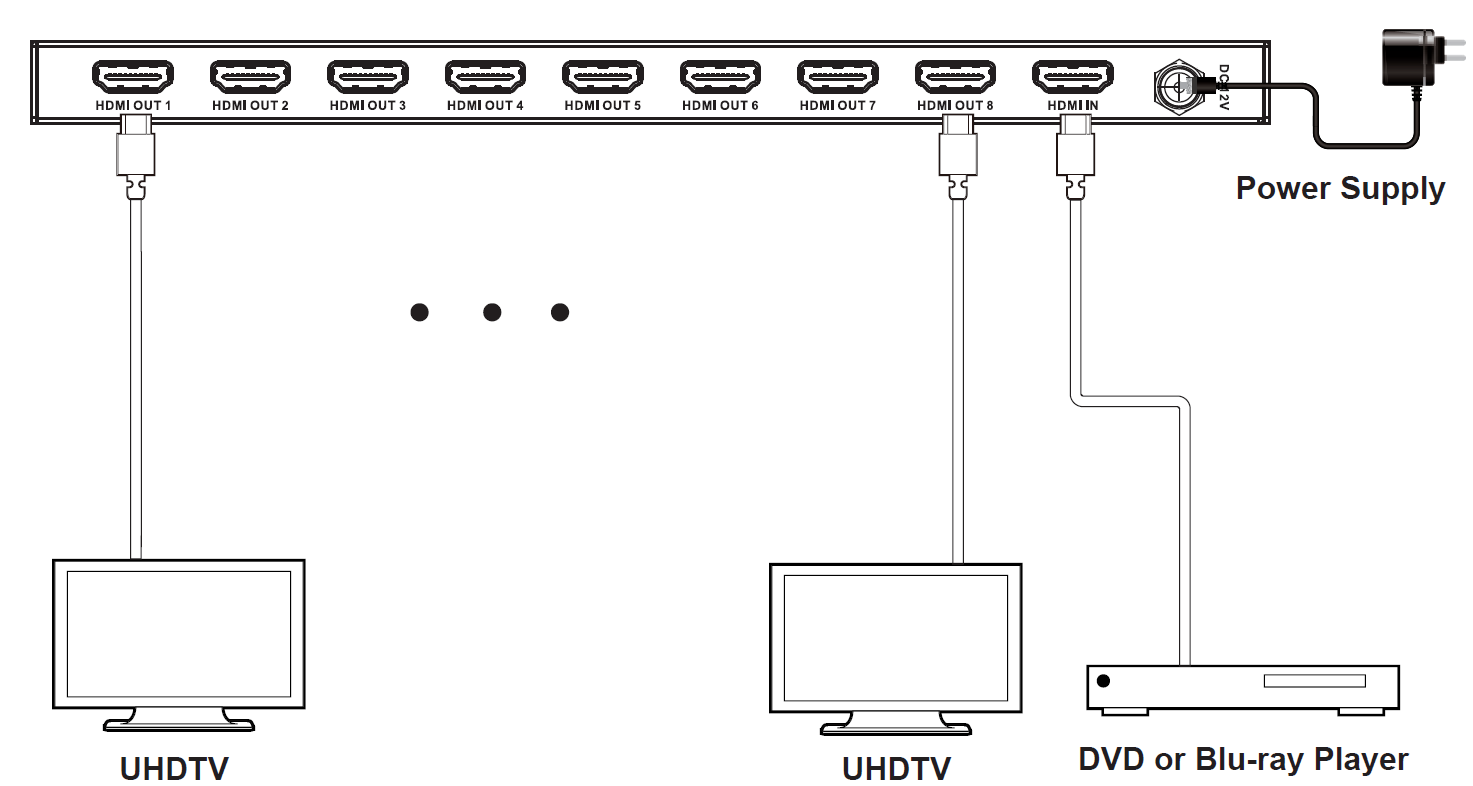

18Gbps 1x8 HDMI Splitter is an advanced solution for splitting single HDMI signal to 8 HDMI outputs synchronously. It supports up to 18Gbps bandwidth, HDMI 2.0b/HDCP 2.2 content up to 4K@60Hz 4:4:4. It can be set the COPY/AUTO EDID configuration. Supporting the latest features you can be assured of reliable and high quality HDMI distribution.
Features:
☆ HDMI 2.0b, HDCP 2.2 compliant
☆ Supports 18Gbps bandwidth
☆ Supports resolution up to 4K@60Hz 4:4:4
☆ Supports HDR function
☆ Supports COPY/AUTO EDID control via dialling the dip switch
☆ Compact design for easy and flexible installation
Specifications:
|
Technical |
|
|
HDMI Compliance |
HDMI 2.0b |
|
HDCP Compliance |
HDCP 2.2 |
|
Video Bandwidth |
594MHz/18Gbps |
|
Video Resolution |
480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz |
|
HDMI Audio Formats |
PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X |
|
ESD Protection |
Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |
|
Connections |
|
|
Input Port |
1x HDMI Type A (19-pin female) 1x SERVICE (Micro USB, Update port) |
|
Output Ports |
8x HDMI Type A (19-pin female） |
|
Mechanical |
|
|
Housing |
Metal Enclosure |
|
Silkscreen Color |
Black |
|
Dimensions |
243mm (W) x 102mm (D) x 16mm (H) |
|
Weight |
572g |
|
Power Supply |
Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) |
|
Power Consumption |
6.15W |
|
Operation Temperature |
14°F - 122°F / -10°C - 50°C |
|
Storage temperature |
-4°F - 140°F / -20°C - 60°C |
|
Relative Humidity |
20 - 90% RH (no condensation) |
What is HDMI Splitter?
Do I need a HDMI Switcher of a HDMI Splitter?
CLICK HERE TO SEE OTHER 4K HDMI SWITCHERS IN OUR RANGE
12 Month Warranty
