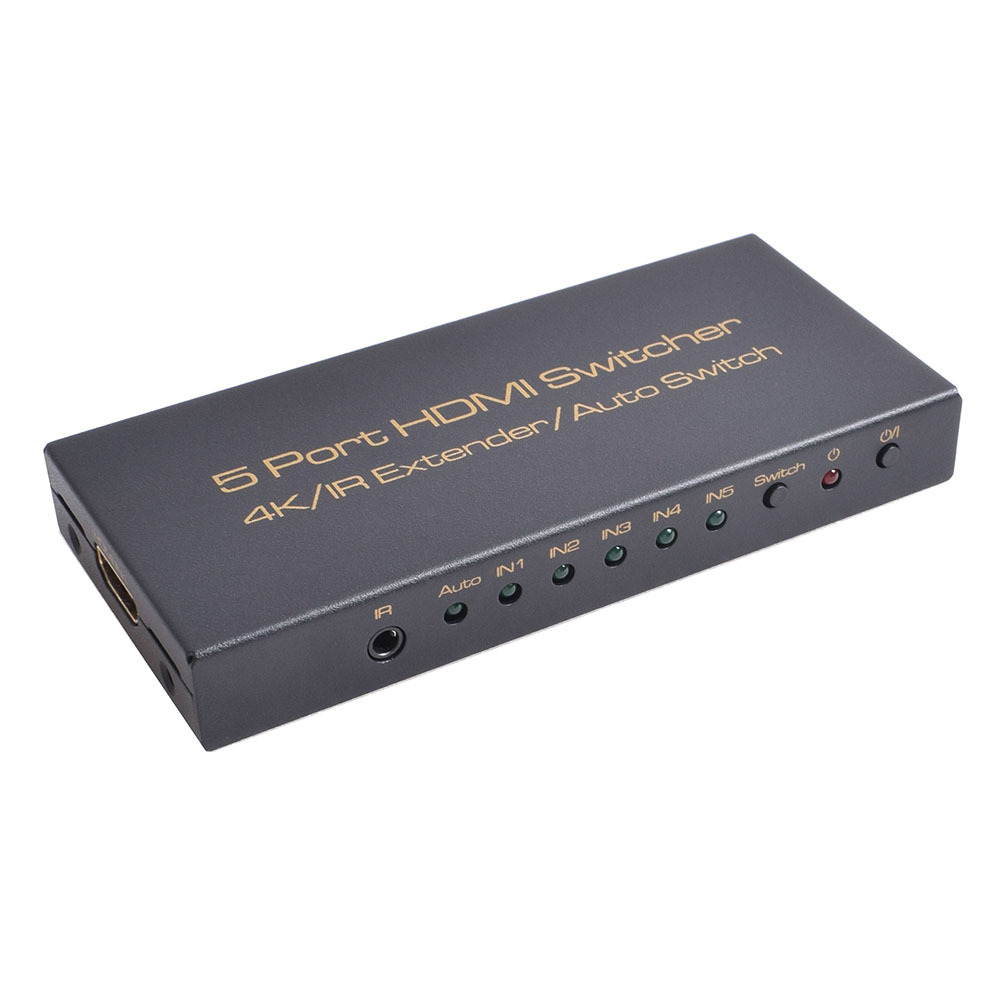

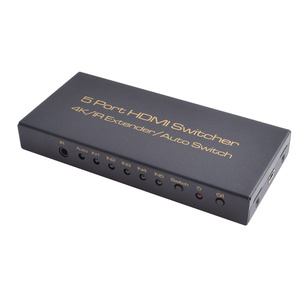

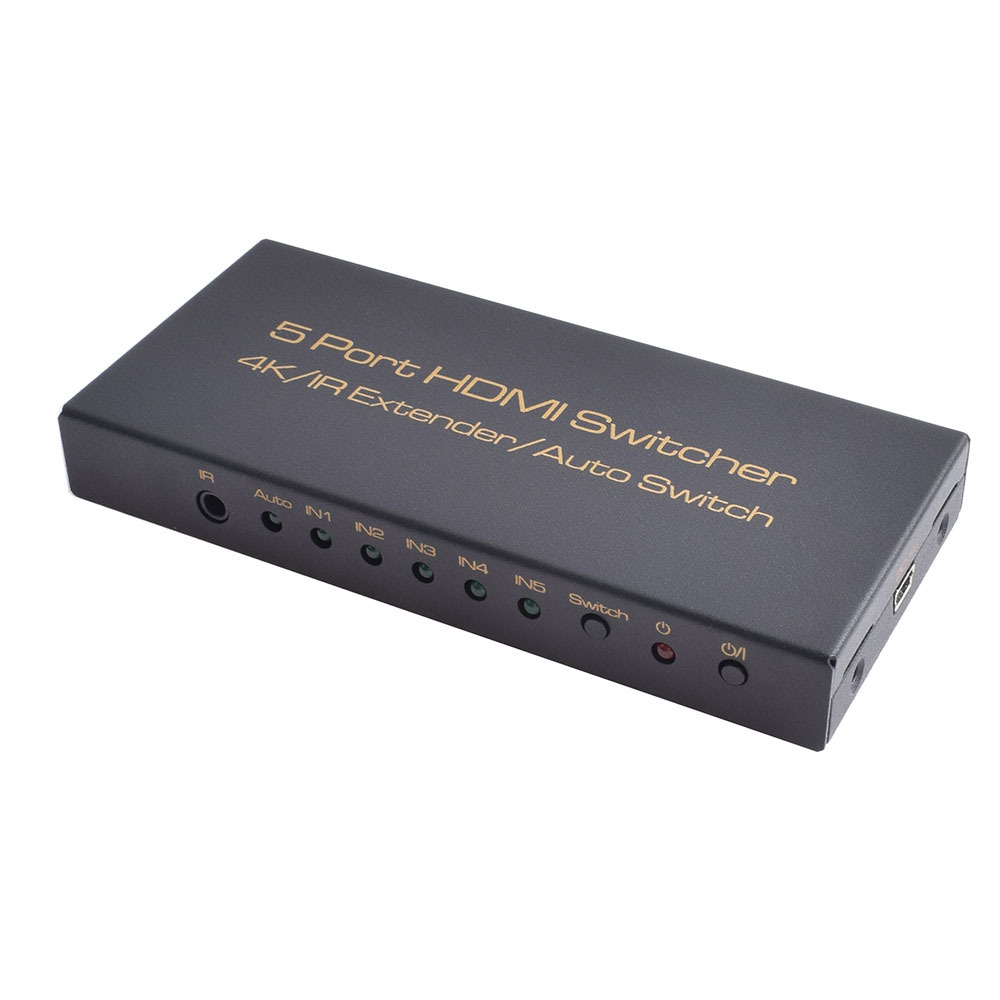

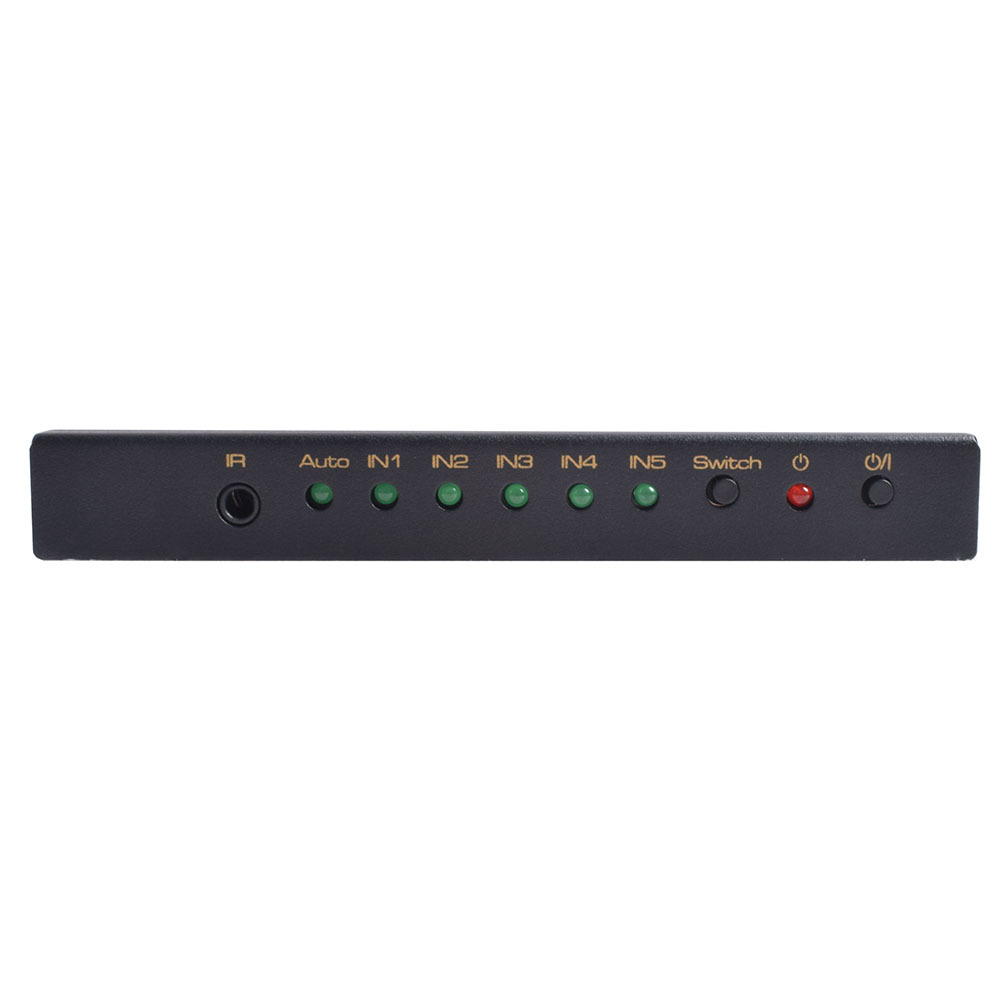

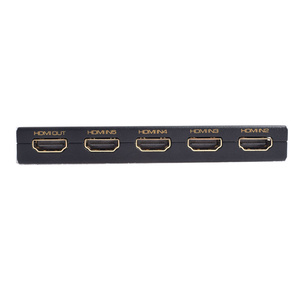

5 Port HDMI V1.4 AV Selector Switcher

5 Port HDMI AV Switcher

SKU: AA6012


$34.95
RRP $79.95
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $33.20 ea
Buy 11 to 20: Pay $31.54 ea
Buy 21 to 100: Pay $29.97 ea




Calculate Shipping

5 Port HDMI AV Switcher

Supports 4K and 3D Formats

This is a high performance 5 HDMI input selector to 1 HDMI output switch. This HDMI switch box supports HDCP repeater functions and fast switching between any of the HDMI ports. HDMI Auto Switch supports all 3D TV formats in addition to all HDTV formats up to 4Kx2K. Furthermore, the remote control gives complete control over the selection of sources and makes the device incredibly user friendly.

Features:

  • Compliant with HDMI 1.4a, CTS 1.4a, DVI 1.0 standards.

  • HDMI 1.4 support: 3D TV support.

  • Support 3D Video & 4Kx2K, 8, 10, 12 & 16 bits per color depth.

  • Support Remote control and HDMI auto switch

Audio support:

  • Dolby True HD

  • DTS-HD Master Audio 7.1CH

  • Low power consumption (does not require an external power supply)

Package:

  • HDMI 1.4 4by1 Switcher

  • USB Power Supply cable

  • Remote control

  • IR Receiver cable

  • Operation Manual

Specifications:

HDMI Resolution - 24/50/60fs @ 480i - 1080p, 24/30Hz @ 4K 2160P

Deep Color - 24/30/36bit/1080P/1080i/720p/576p/576i/480P/

480i 24bit//2160P

HDMI In/Out Supported Audio Format - DTS-HD/Dolby-trueHD/LPCM7.1/

DTS/Dolby-AC3/DSD

HDMI Channel Max Bandwidth - 225MHz

Input / Output DDC signal - 5Vp-p(TTL)

HDMI Input Cable Length - ≤6m AWG26 HDMI standard cable

HDMI Output Cable Length - .≤6m AWG26 HDMI standard cable

Max Working Current - 400mA

Working Temperature Range - (-0 to +40℃)

Working Humidity Range - 5 to 85%RH(No Condensation)

Size - 119.2X54X15.8 (mm)

Weight - 149g

Remote controller Battery - CR2025





Do I need a HDMI Switcher of a HDMI Splitter?



CLICK HERE TO SEE OTHER HDMI SWITCHERS IN OUR RANGE





3 Month Warranty

SKU AA6012
Barcode # 9351634000197
Brand Playvision
Shipping Weight 0.3300kg
Shipping Width 0.120m
Shipping Height 0.080m
Shipping Length 0.140m
Shipping Cubic 0.001344000m3
Unit Of Measure ea
Assembled Length 0.120m
Assembled Height 0.010m
Assembled Width 0.100m
