4 Way HDMI Video Wall w/ Digital Audio Output & RS 232 Control

Display a video source up to 4 LCD's on Video Wall mode

This 4 Way HDMI Splicer splits 1 HDMI input into 4 HDMI outputs and allows the video input to be displayed across up to 4 LCD's as one video display creating a video wall effect. Supports video input resolution up to 4K @ 30Hz and outputs 1080p @ 60Hz to HDMI displays with multiple display configurations. It features a Digital toslink Audio output for connection to a receiver or amplified speaker; Selectable EDID mode switch and RS232 control.

Specifications:

Product Description    4 Port HDMI Video Splicer

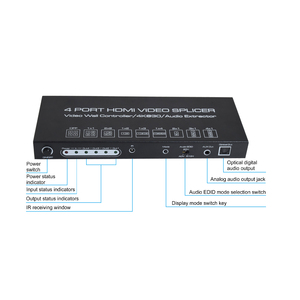

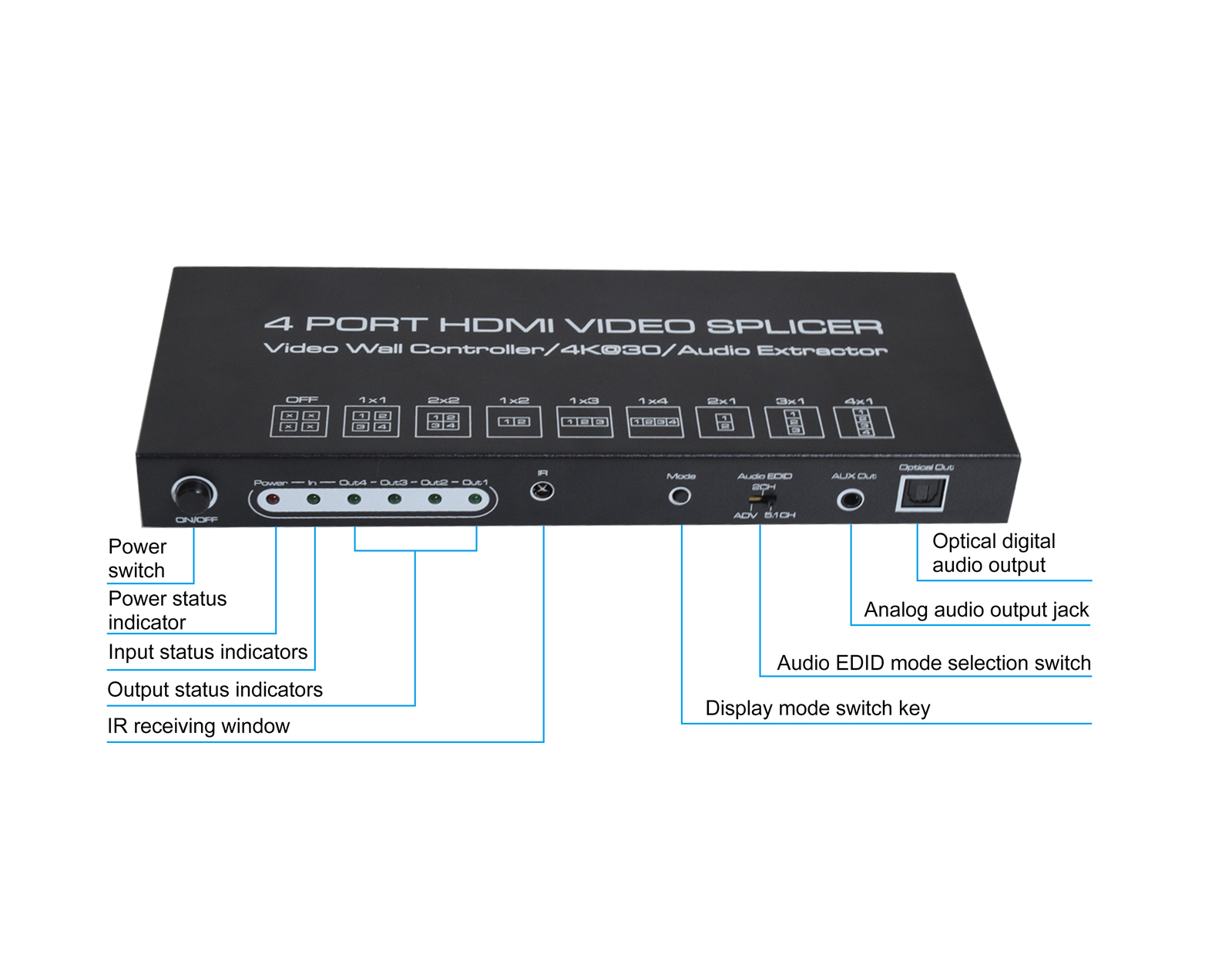

Input ports    HDMI x1, DC x1, RS232 x1

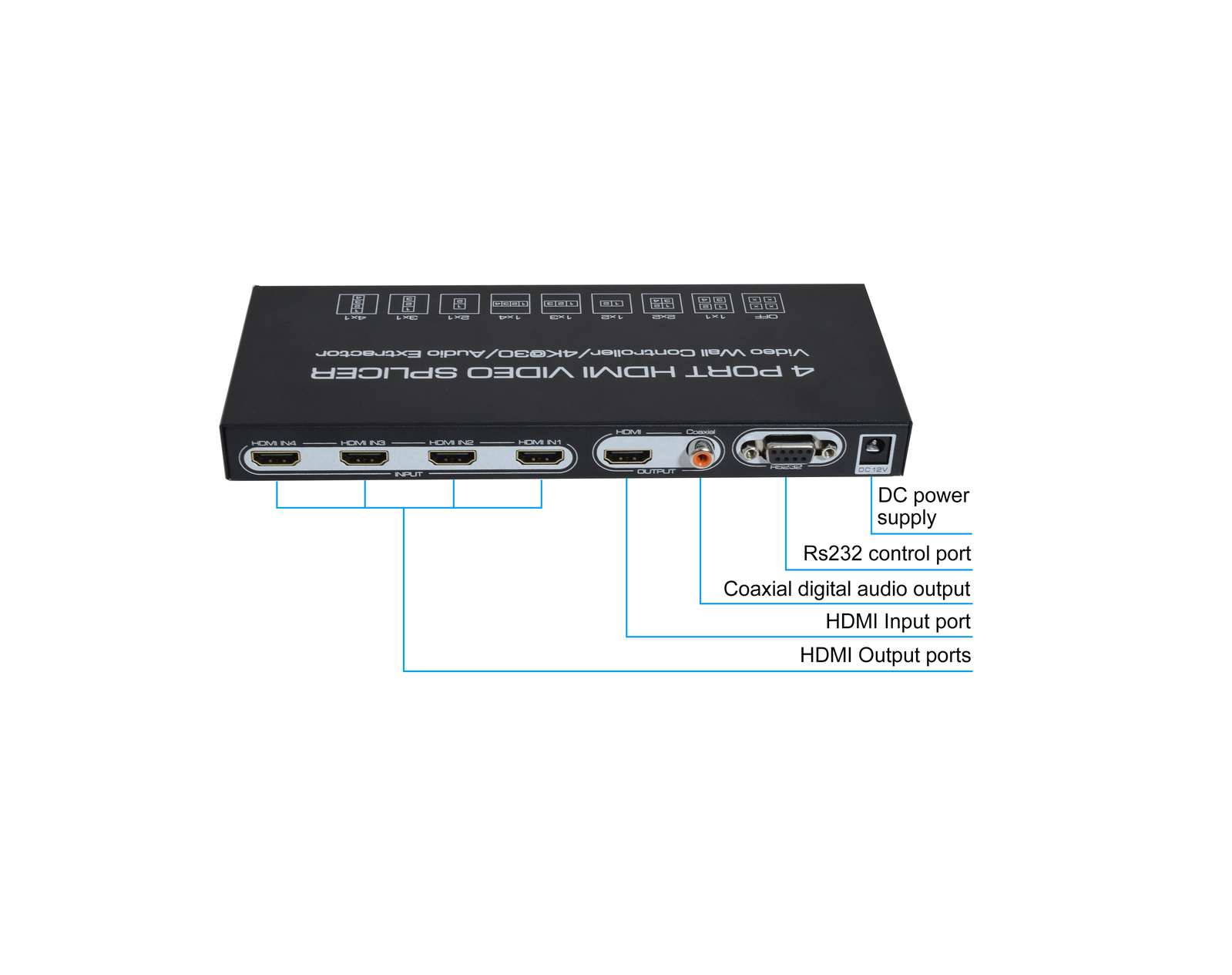

Output ports    HDMI x4, Optical x1, Coaxial x1, AUX x1
Input resolution format    480i/480P/576i/720P/1080i/1080P@50/60fps,2160P@24/25/30fps
Output resolution format    1920 x1080P@60fps
Deep color    8/10/12Bit
Audio format    Dolby AC3/DTS/LPCM Etc.
Audio sampling rate    Support 24Bit/ 96kHz Max.
Transmission bandwidth    300MHz Max.
Analog output level    2V RMS (1kHz@0dB)
Input cable length    1080P/AWG 26 ≤10m
Output cable length    1080P/AWG 26 ≤12m
Power adapter specification    Input: AC 100~240V Output: DC 12V/1.5A
Max working current    180mA
Working temperature range    -5 ~ +40℃
Working humidity range    5 to 85%RH（No Condensation）
Storage temperature    -15 to 55℃
Storage humidity    5 ~95%RH(No Condensation)
Size    220x87x23 (mm)
Weight    425g
Accessories    Manual, Power Adaptor, Remote
