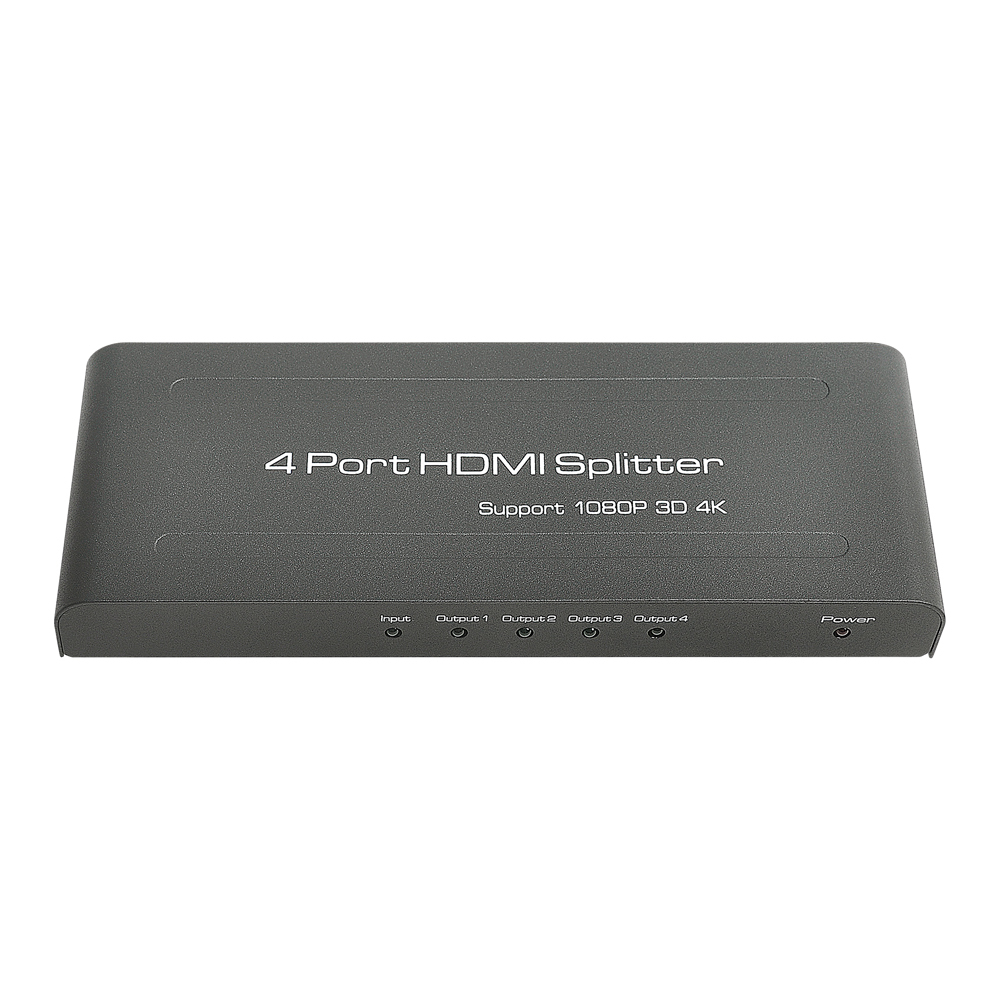

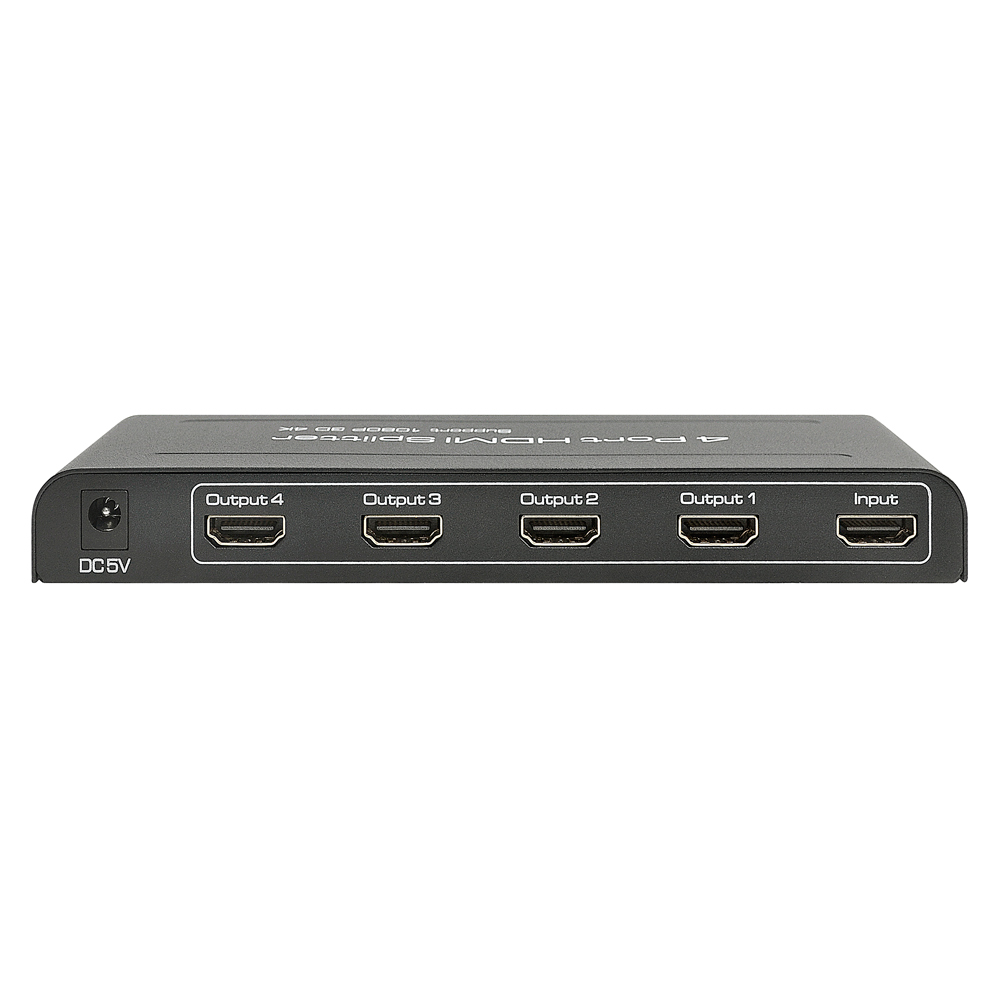

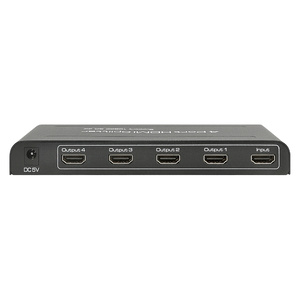

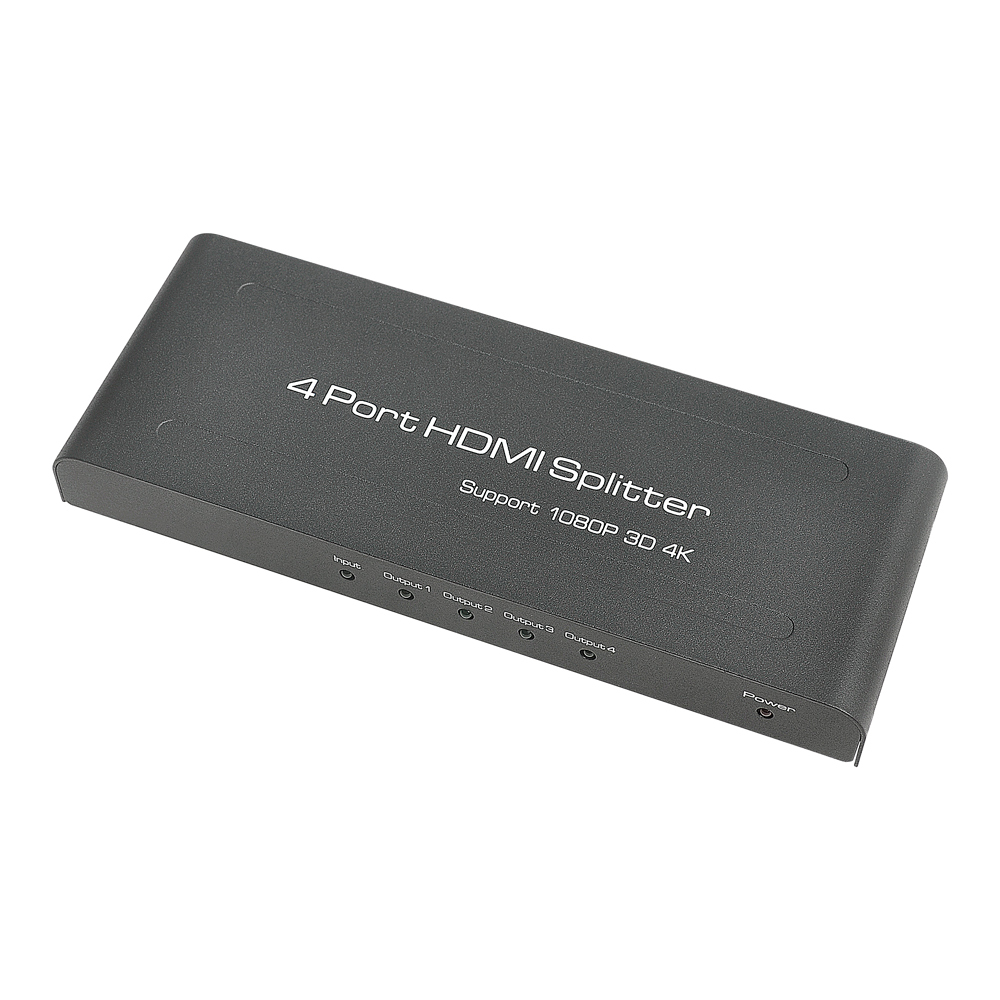

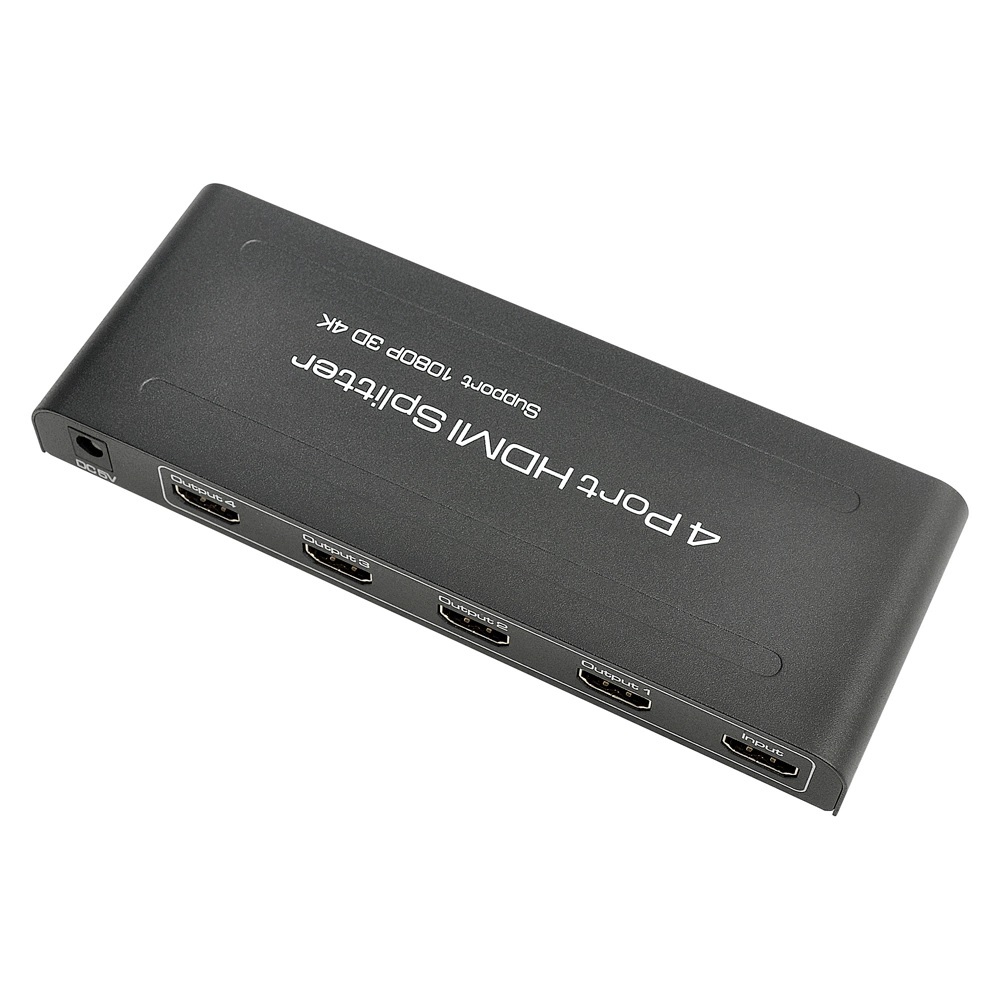

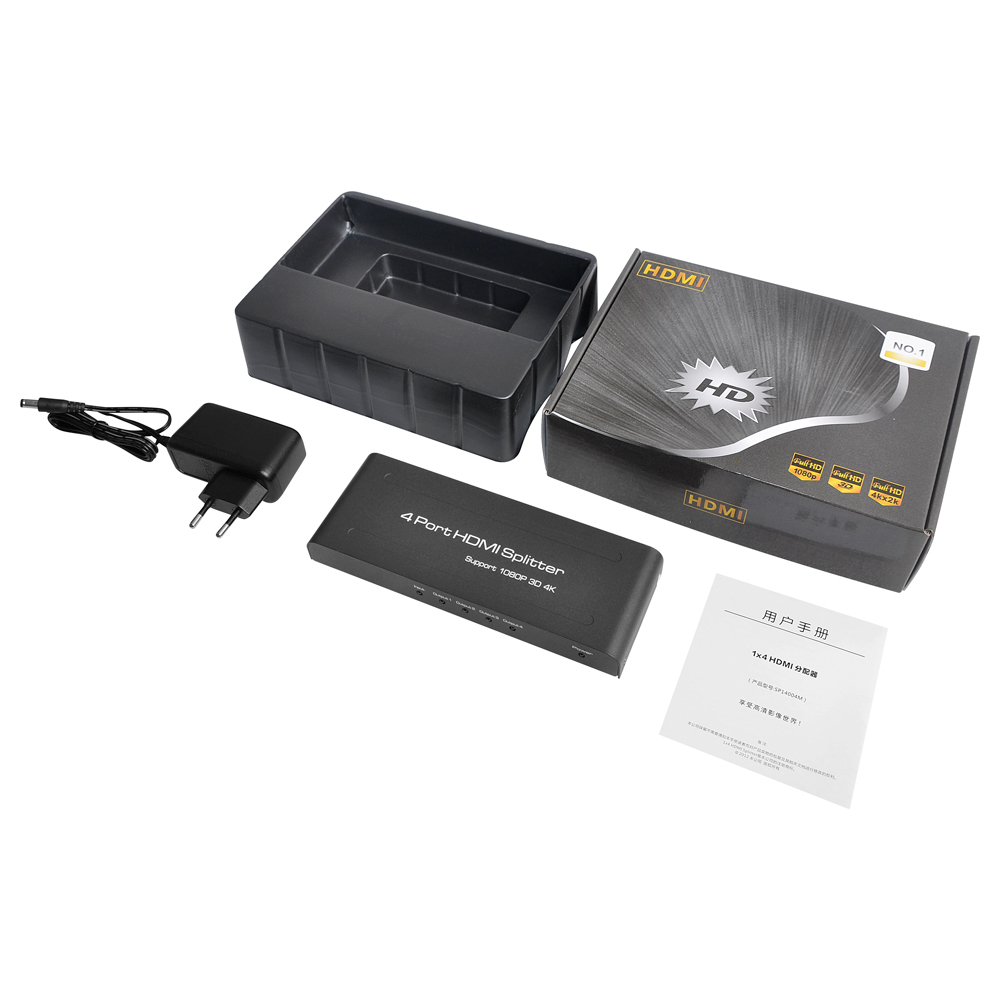

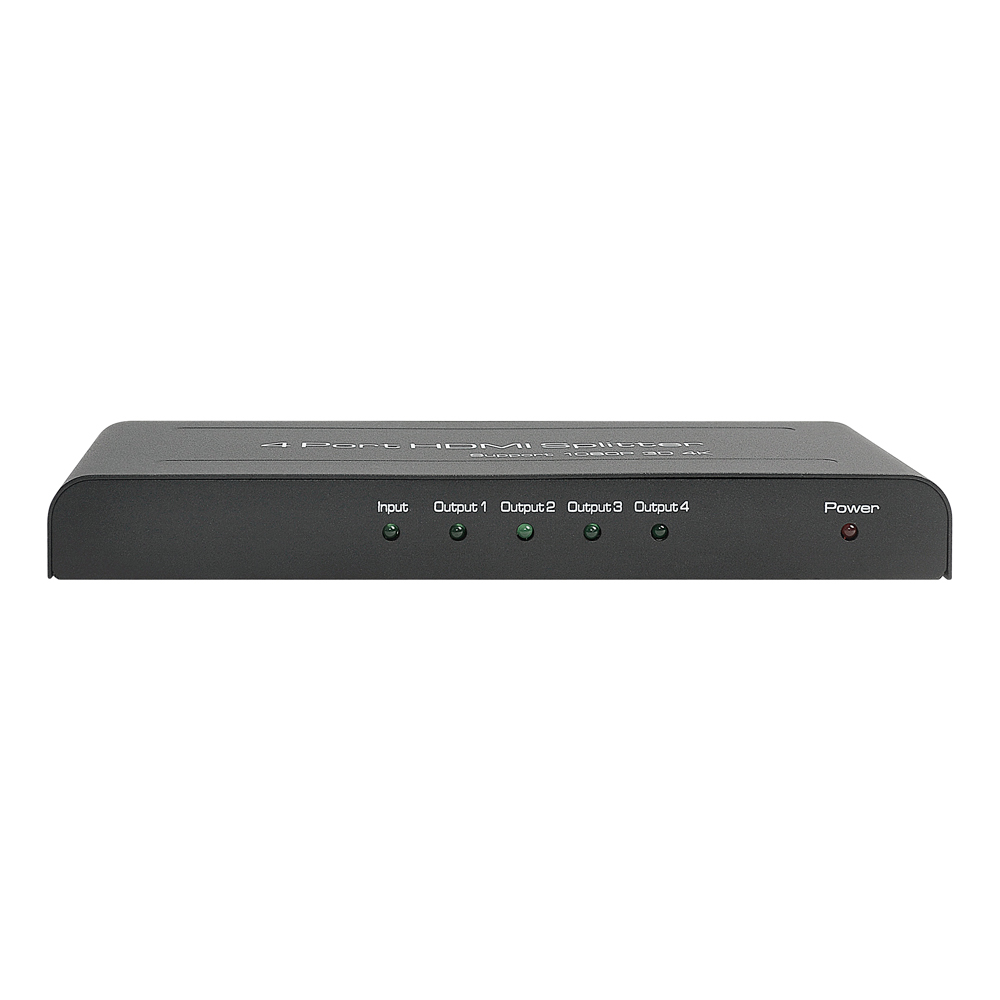

4 Way HDMI AV Splitter with HDCP Stripper Converter

4 Way HDMI AV Splitter

Distribute a HDMI Source to 4 Displays Simultaneously

1 × 4 HDMI splitter distributes 1 HDMI source to 2 HDMI displays and converting HDCP encryption to HDCP 1.2.This 4 Way HDMI AV splitter distributes 1 HDMI source to 4 HDMI output / displays simultaneously. It offers HD video solution for super market, shopping Mall, HDTV/STB/DVD/Projector /DVR factory, data control center, information distribution, conference room presentation, education and training, corporation showroom, luxurious house, etc...

FEATURES

• One HDMI input signal split to four HDMI sink devices

• Support  Full HD, Full 3D

• Support 4Kx2K resolution

• Support CEC

• Support deep color 30bit, 36bit, 48bit

• Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

• Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 /DSD/HD（HBR）

• Support signal retiming

• Support input up to 15metres AWG26 HDMI standard cable length, output up to 25metres AWG26 cable length

• No loss of quality

• Installs in minutes

SPECIFICATIONS:

HDMI resolution - 24/50/60fs @ 1080p / 1080i / 720p / 576p / 576i / 480p / 480i

Support video color format - 4bit / deep color 30bit, 36bit, 48bit

Support audio format - DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD HD(HBR)

Max bandwidth - 340MHz

Max baud rate - 10.2Gbps

Input/Output TMDS signal - 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal - 5Volts p-p (TTL)

Input cable distance - ≤15m HDMI AWG26

Output cable distance - ≤25m AWG26 HDMI standard cable

Max working current - 1200mA

Power adapter - DC5V/2A

Operating Temperature range- (-15 to +55℃)

Operating Humidity range - 5 to 90%RH (No Condensation)

Dimension (L x W x H) - 180X68X20(mm)

Weight - 320g

What is a HDMI Splitter?

Do I need a HDMI Switcher of a HDMI Splitter?
