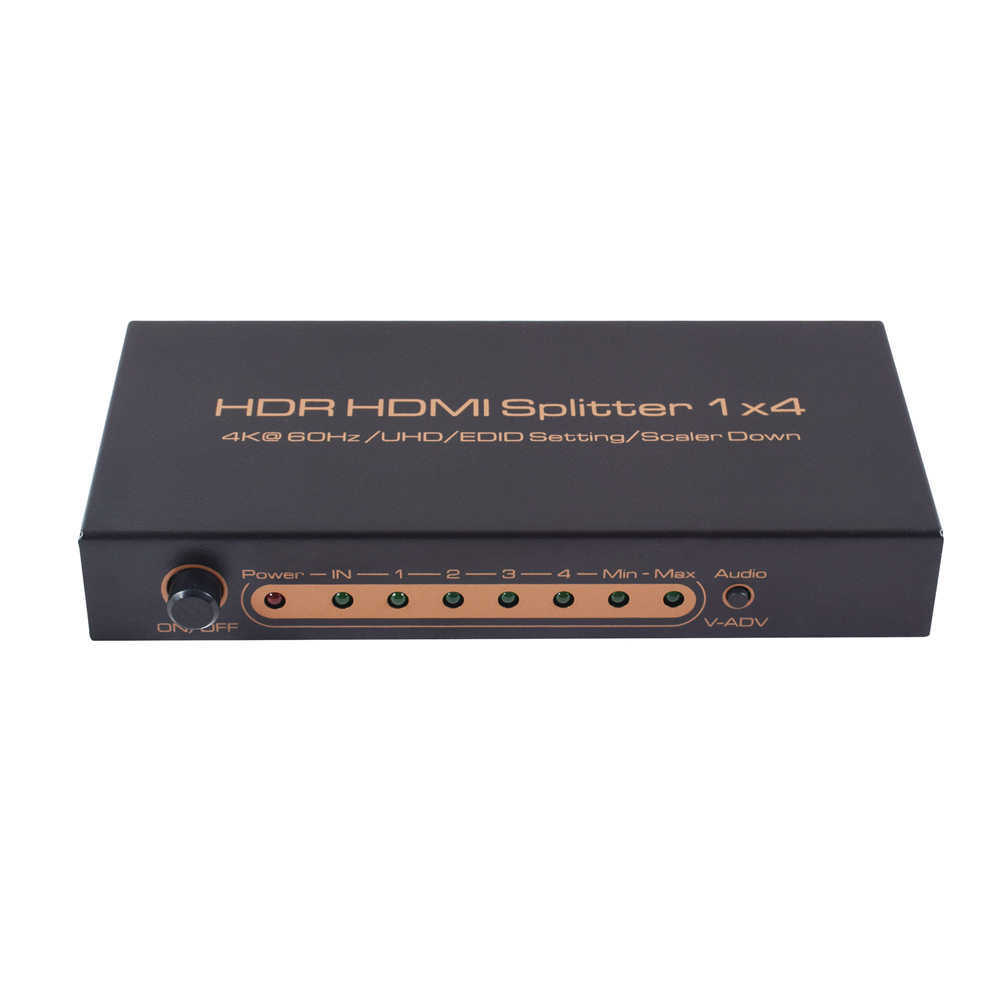

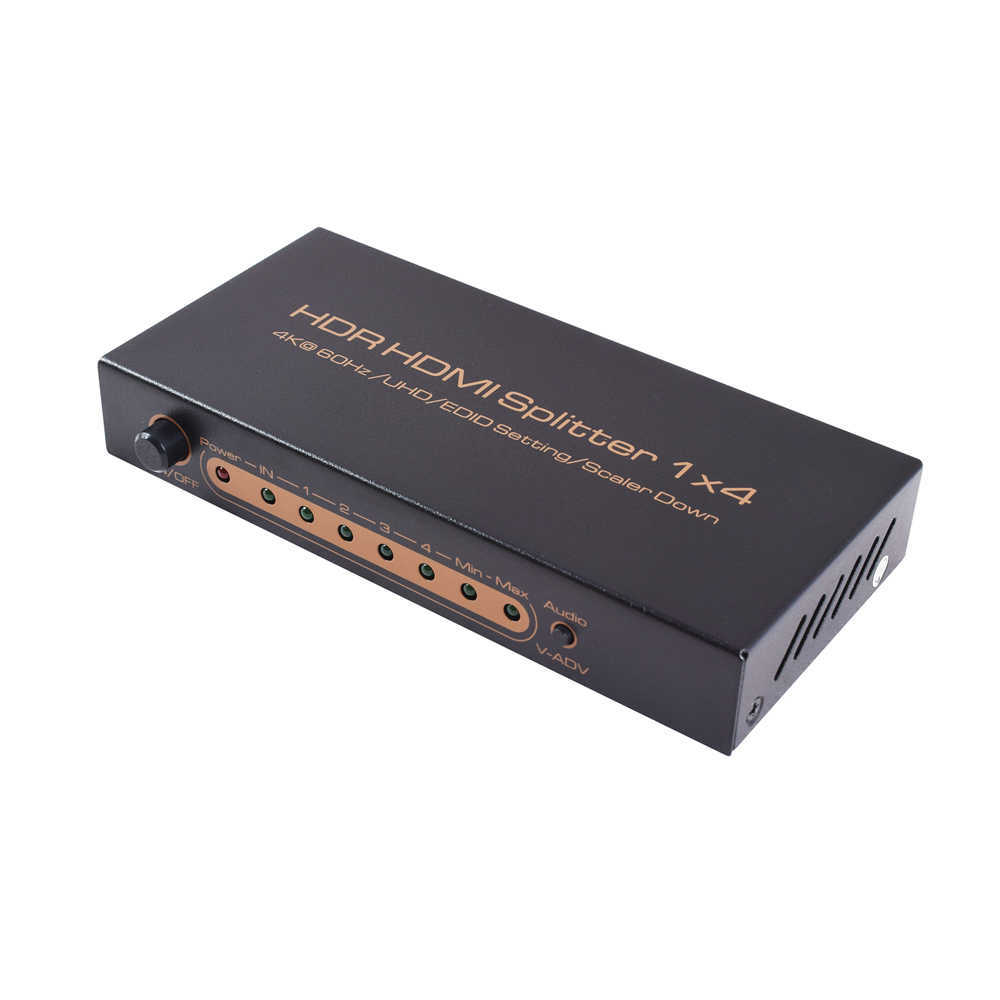

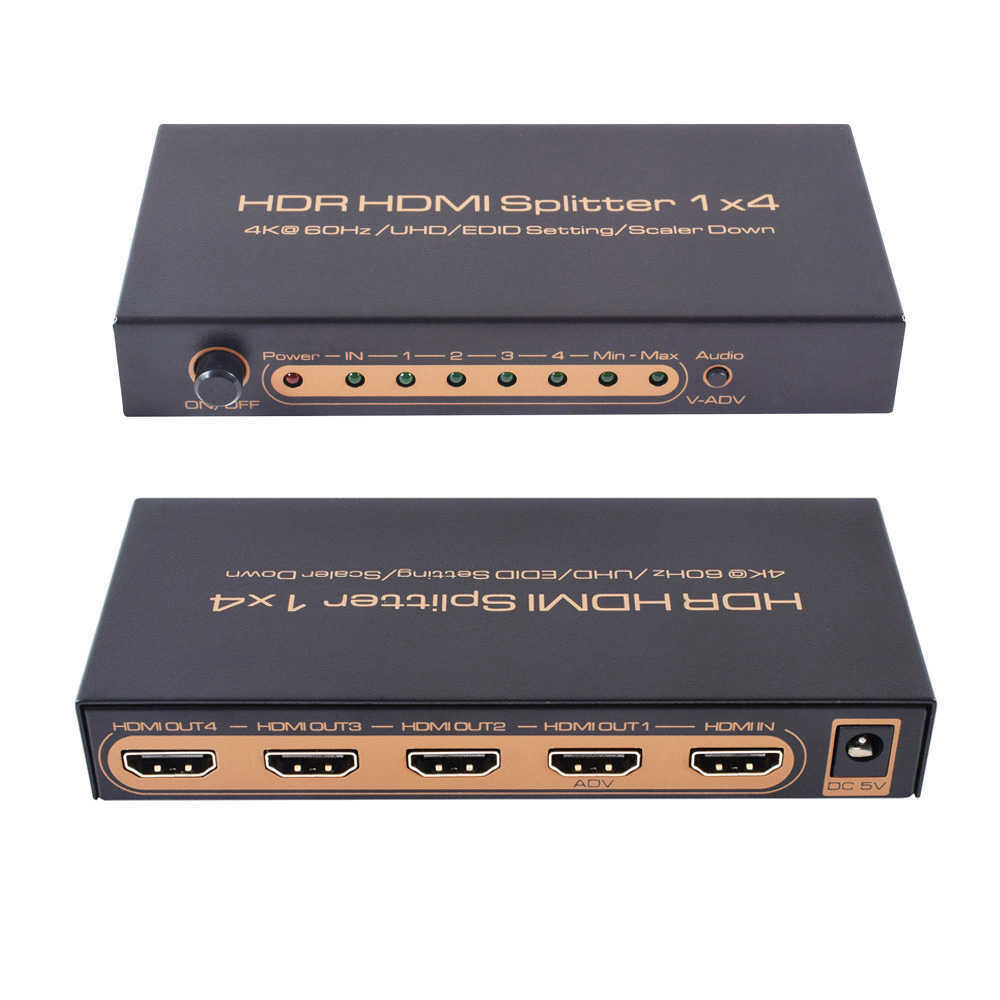

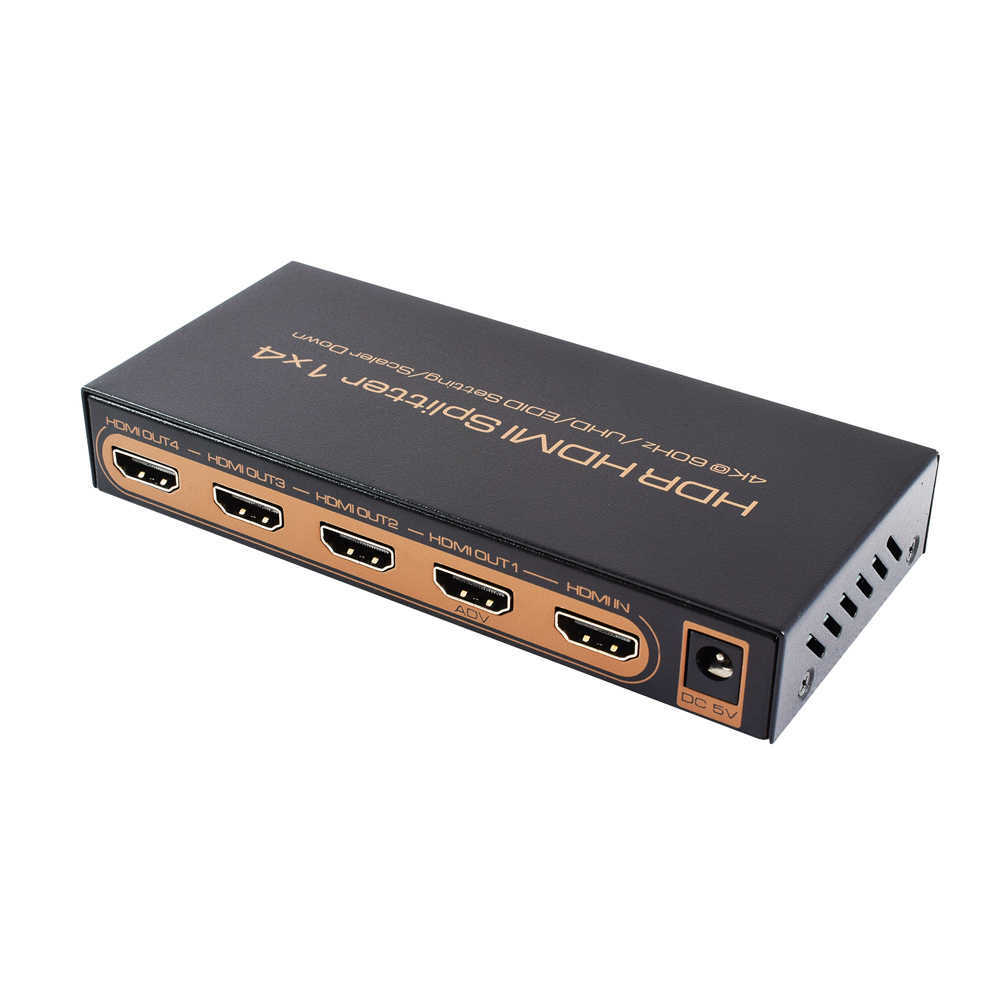

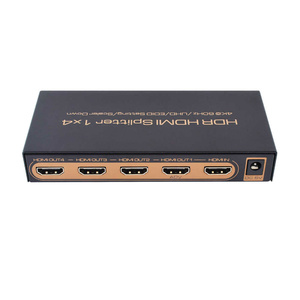

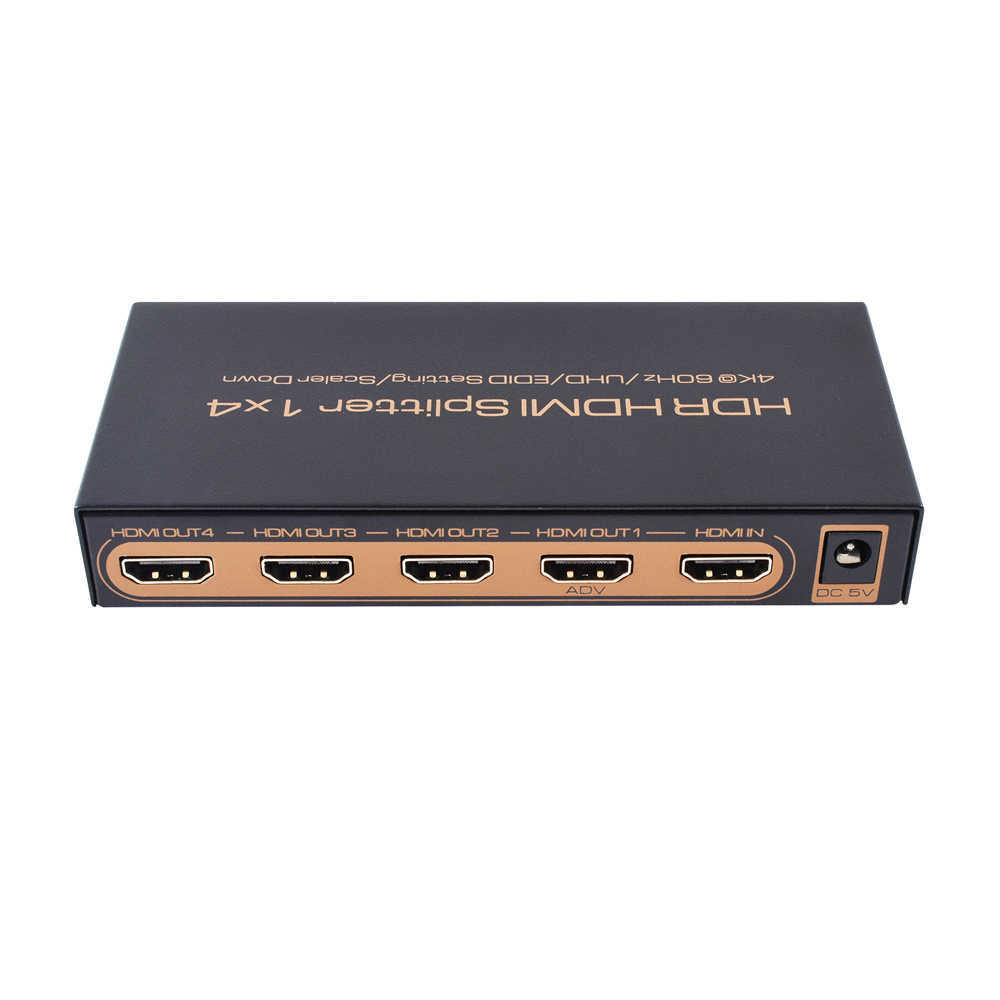

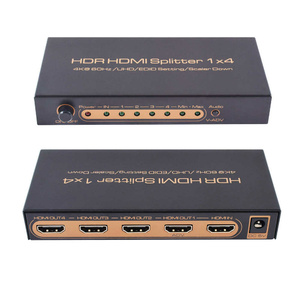

4 Way HDMI 2.0 18GBPS Splitter with HDR and Down Scaler

Perfect for Different Resolution Displays

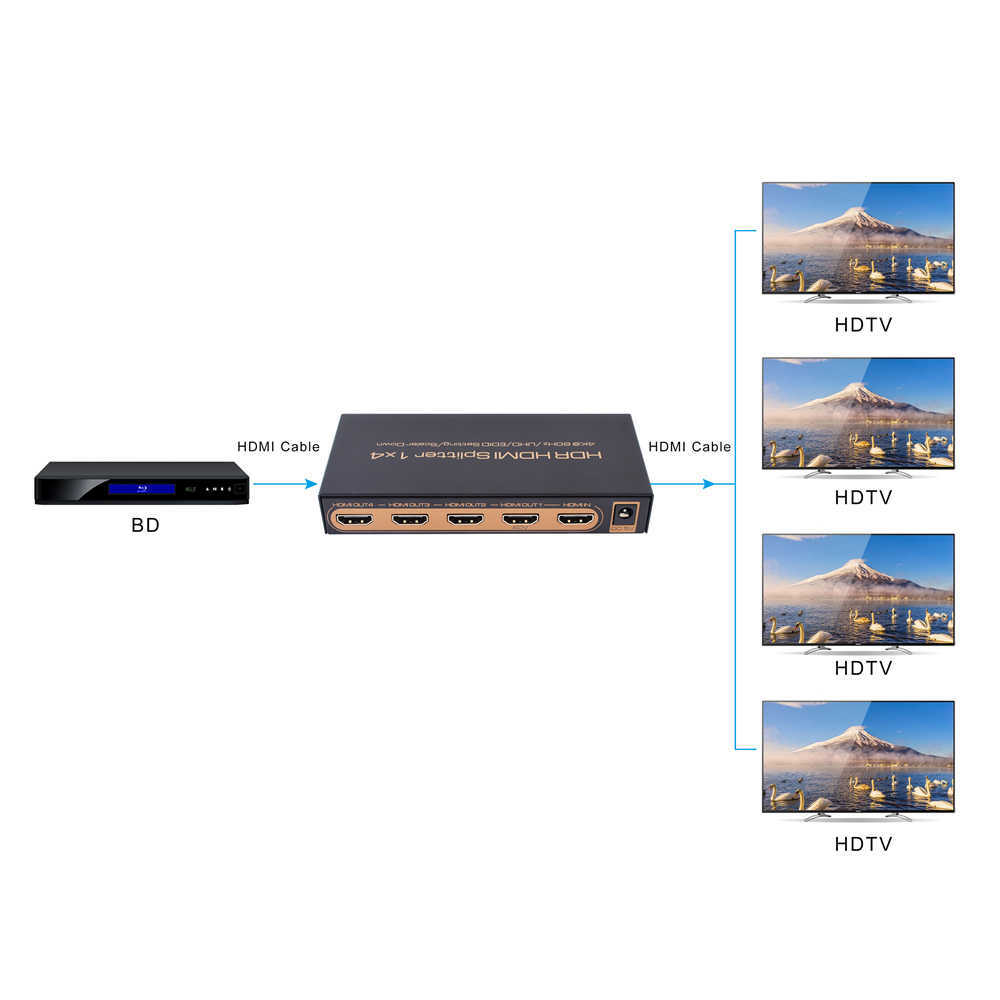

Connecting a 4K HDMI Source such as a Foxtel IQ4, PS4 Pro or XBOX One S to multiple LCD Displays with varying resolutions can be rather frustrating. The 4K HDMI source detects the highest resolution and displays this HDMI signals across all LCD Displays connected. With this 4 Way HDMI 2.0 Splitter with Down Scaler, you are able to output a combination of 4K and 1080P resolutions across 4 Displays connected to the HDMI Splitter. Also supports HDR and has HDCP Stripper / Converter to allows connectivity to older LCD's and TV's with earlier HDCP versions.

Specifications:
Model No: AA6150
Model name: HDR HDMI Splitter 1x4
Input channel: HDMI port x1
Output channel: HDMI port x4
Video format: HDR, HLG, Dolby Vision
Resolution format: 480P / 720P / 1080P / 4K @ 30Hz  /4K @ 60Hz
Deep color: 8/10/12Bit @ 480P / 720P / 1080P 8Bit @ 2160P
Audio format: Dolby Atmos, Dolby HD / DTS HD / Dolby Atmos / Dolby AC3 / DTS / LPCM
HDMI Input cable length: 2160P / AWG 26 ≤5m, 1080P / AWG 26 ≤10m
HDMI Output cable length: 2160P / AWG 26 ≤5m: 1080P / AWG 26 ≤10m
HDMI transmission bandwidth: 25~600MHz
HDMI transmission rate: 0.75~18Gbps
Power adapter Input: AC 100~240V Output: DC 5V/1A
Max working current: 500mA

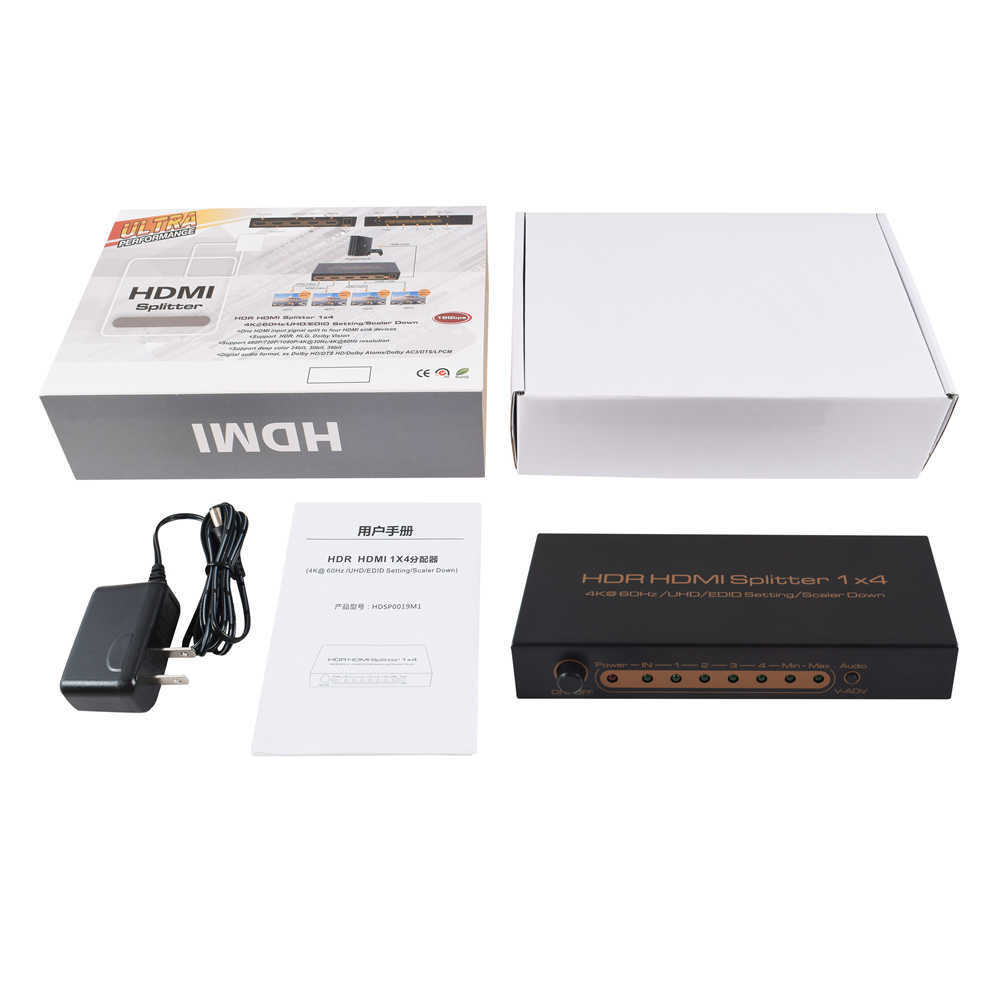

Accessories: Manual x1, Power Adaptor x1
