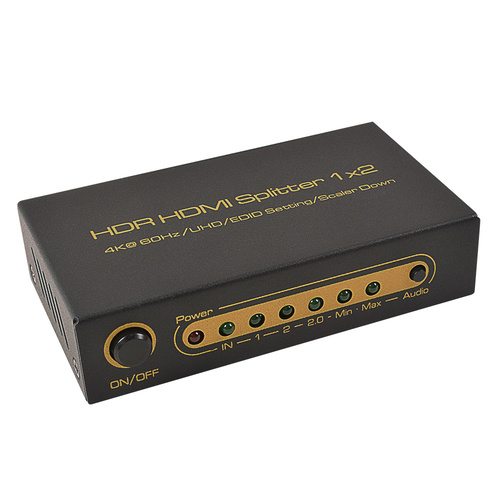

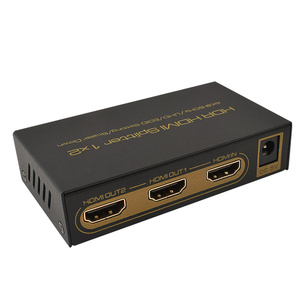

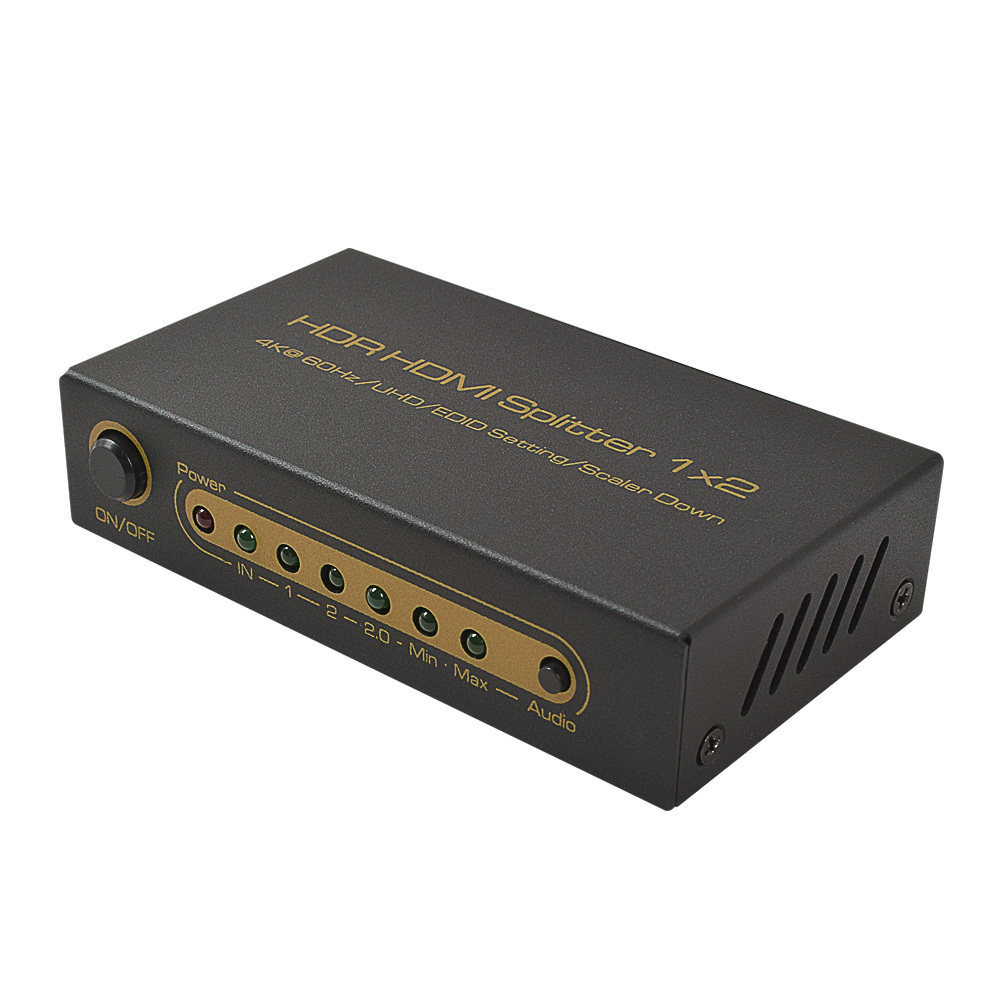

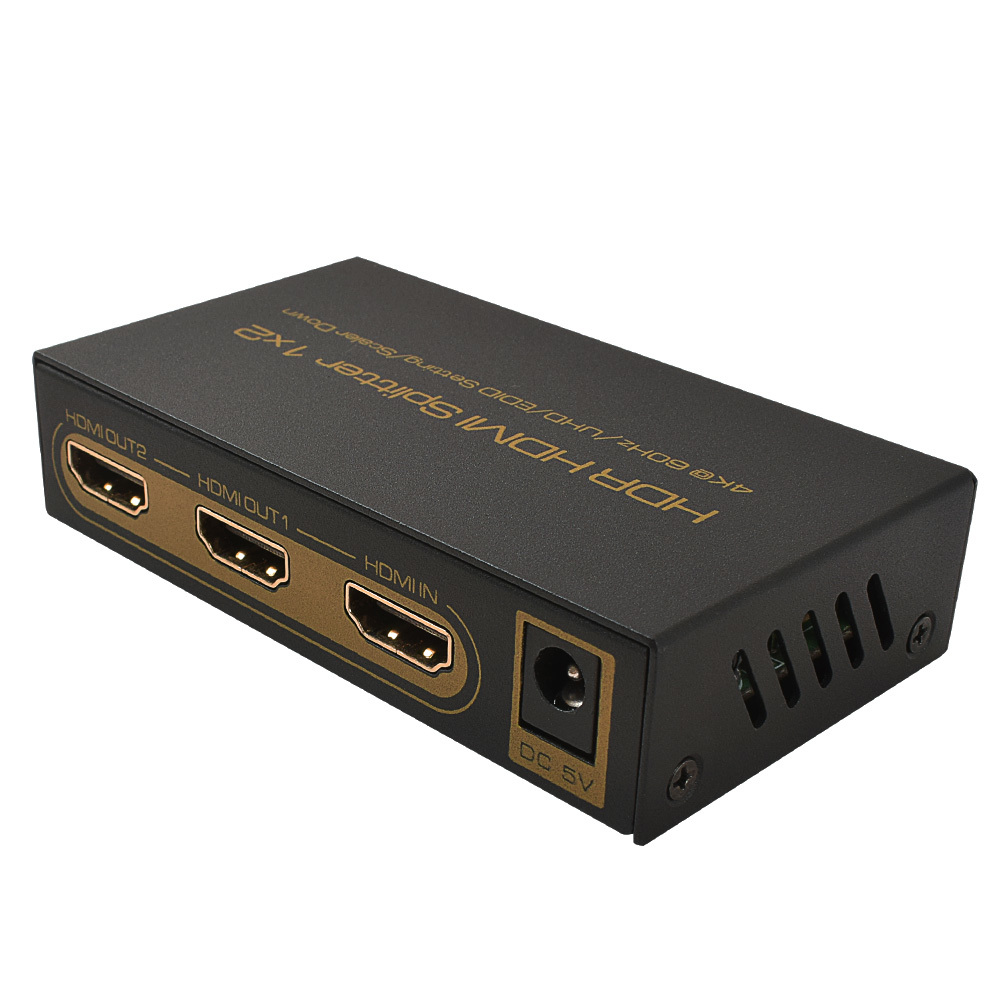

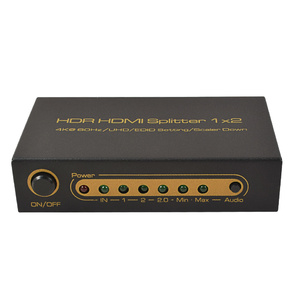

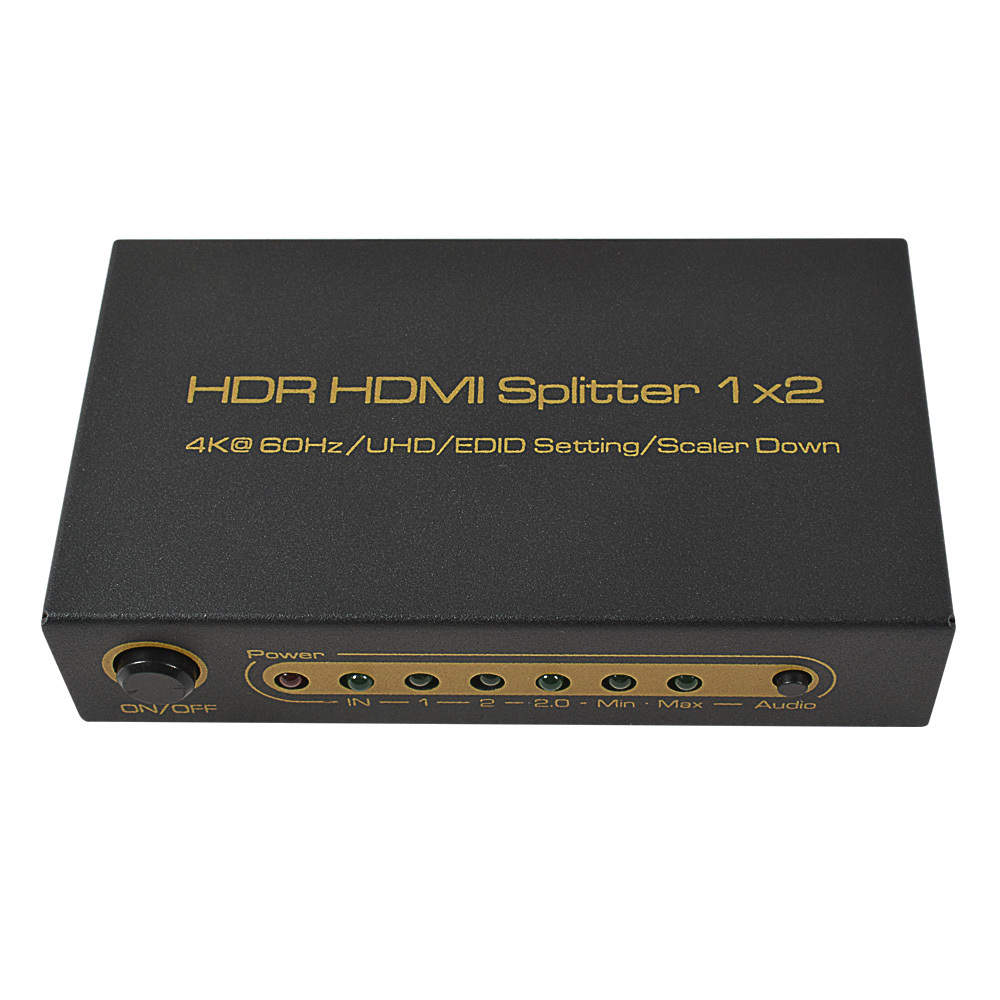

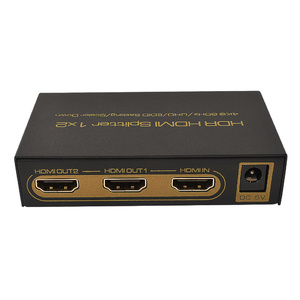

2 Way HDMI 2.0 18GBPS Splitter with HDR and Down Scaler

Perfect for Different Resolution Displays

SKU: AA6152


$69.95
RRP $159.95
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $66.45 ea
Buy 11 to 20: Pay $63.13 ea
Buy 21 to 100: Pay $59.97 ea




Calculate Shipping

2 Way HDMI 2.0 18GBPS Splitter with HDR and Down Scaler

Perfect for Different Resolution Displays

Connecting a 4K HDMI Source such as a Foxtel IQ4, PS4 Pro or XBOX One S to multiple LCD Displays with varying resolutions can be rather frustrating. The 4K HDMI source detects the highest resolution and displays this HDMI signals across all LCD Displays connected. With this 2 Way HDMI 2.0 Splitter with Down Scaler, you are able to output a 4K and 1080P resolutions across 2 Displays connected to the HDMI Splitter. Also supports HDR and has HDCP Stripper / Converter to allows connectivity to older LCD's and TV's with earlier HDCP versions.

FEATURES

  • One HDMI 2.0 input signal split to two HDMI 2.0 sink devices

  • 4K video input can support 1080P and 4K output resolutions simultaneously. (Note: output only supports the same refresh rate, for example: 60Hz).

  • Support  HDR

  • Support 4K*2K @ 60Hz resolution

  • Support deep color 24bit, 30bit, 36bit

  • HDMI output audio support EDID function: mix and max two audio mode option

  • Video format support: 4Kx2K / 60Hz 10Bit Ycbcr4:2:0; 4Kx2K / 60Hz 12Bit  Ycbcr4:2:0 ; 4Kx2K / 60Hz 8Bit Ycbcr4:4:4/ Ycbcr 4:2:0 (Note: supports standard HDMI source Ycbcr 4:4:4 signal)

  • HDMI input cable distance can be up to 10m and HDMI output cable distance can be up to 10 when transmitting 1080P signal by using standard AWG24 HDMI cable; The HDMI Input cable distance can be up to 5m and HDMI output cable distance can be up to 5m when transmit the 4Kx2Knal by using standard AWG24 HDMI cable;

  • Support signal retiming

  • Supports Dolby Atmos

  • No loss of quality

  • Installs in minutes

  • Includes DC5V/1A power supply

SPECIFICATIONS:

HDMI resolution : 4K @ 60Hz / 4K @ 30Hz / 3D / 1080P / 1080i / 720p / 576p / 576i / 480P / 480i

Support audio format : Dolby Atmos, DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD

Max bandwidth : 600MHz

Max baud rate : 18Gbps

Input/Output TMDS signal : 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal : 5Volts p-p (TTL)

Input cable distance : ≤10m (1080P) / 5M (4K) AWG24 HDMI standard cable

Output cable distance : ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable

Max working current : 400mA

Power adapter : DC5V/1A

Operating temperature range : -0 to +40℃

Storage temperature range : -20 to +60℃

Operating humidity range : 5 to 85%RH (No Condensation)

Storage humidity range : 5 to 95%RH (No Condensation)

Dimension (L x W x H) : 95 X 53 X 22(mm)



Do I need a HDMI Switcher of a HDMI Splitter?

CLICK HERE TO SEE OTHER 4K HDMI SWITCHERS IN OUR RANGE

12 Month Warranty

SKU AA6152
Barcode # 9351634012732
Brand Aus Electronics Direct
Shipping Weight 0.3800kg
Shipping Width 0.150m
Shipping Height 0.070m
Shipping Length 0.160m
Shipping Cubic 0.001680000m3
Unit Of Measure ea

A great little unit that does exactly what it says

By: on 27 May 2021
Purchased this unit because I've got a Fetch Mighty that is now capable of 4K, which looks great on my beautiful 4K TV. But, I was previously "splitting" the output from the Fetch Mighty 4K through a "cheap and nasty" HDMI splitter that forced the Fetch Mighty, when set to auto, to "step down" to the lowest common denominator resolution of 1080p - the highest resolution which the old TV on the other side of this older splitter could manage - even though the splitter was *notionally* capable of splitting 4K content. So when I was looking for a more "sophisticated" splitter that could negotiate separate resolutions on either HDMI output, I found this one whose description seemed to match exactly what I needed. And yes it does - It works flawlessly! The Fetch 4K is totally unaware that anywhere "downstream" is not capable of 4K, and my old secondary 1080p capable TV works just fine, while my primary TV looks great at full 4K. It's a great little unit, very well made, and does exactly what it claims to. Highly recommended.
(5)

2 Way HDMI 2.0 18GBPS Splitter with HDR and Down S

By: on 2 September 2020
I rang Aus Electronics and explained how i want to split my TV signal and they very quickly advised two options but suggested the cheaper one would work well. They were right and i am very happy with the purchase. The transaction was very smooth and the communication regarding delivery was excellent
(5)

Works great with 4K projector & 2k TV

By: on 28 August 2020
Had ours for over 6mths and it hasn’t missed a beat feeding the 4K projector and downscaling to the HDTV. Only issue is it can be slow negotiating between the source and the two different outputs, sometimes upto 20sec of no signal and if you turn either alternate output on during playback you get lost signal for that period while it re-negotiates. Otherwise a great little device at a good price and super easy to install and use. Purchase and delivery was faultless.
(5)

2 Way HDMI 2.0 18GBPS Splitter with HDR and Down S

By: on 2 January 2020
Arrived on time and looks like it should do the job.
(4)

Service

By: on 4 July 2019
Great company to deal with spoke to the tech who gave me some great advise, purchased the product and am very happy , sales ,service and product are excellent.
(5)
