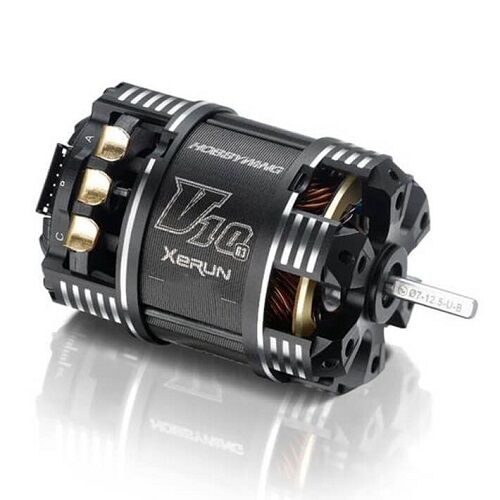

Xerun G3 V10 3.5T Brushless Motor
Pair This XERUN Motor With Your ESC
SKU: TM0043
Xerun G3 V10 3.5T Brushless Motor
Precision Power for Elite-Level RC Racing
The Hobbywing XeRun V10 G3 is engineered for one thing: top-tier competitive racing. Whether you’re battling for podiums at IFMAR events or pushing the limits at local club races, the V10 G3 delivers refined performance, improved cooling, and race-ready durability.
With enhanced KV, torque, weight reduction, and smarter cooling, the G3 series marks a major upgrade over the previous G2 generation.
Next-Level Performance Enhancements
-
+16% Higher KV and +4% Torque Gain
Compared to the V10 G2 Stock motors, the G3 delivers faster response and increased speed across all conditions. -
RPM Significantly Increased
The optimized rotor and stator design unlock greater peak RPM for both Stock and Modified variants. -
Lighter & Faster
-
Stock Motors (132g): 21% lighter than G2
-
Modified Motors (161g): 11% lighter than G2
Lower mass improves chassis balance, acceleration, and efficiency.
-
Precision Control at Every Turn
-
Built-in High-Precision Hall Sensor
Ensures ultra-smooth throttle response and perfect linearity under all load conditions. -
Balanced Rotor & Timing Stability
Precision-balanced rotor + clearly marked rear timing plate = stable and reliable mechanical timing adjustments. -
Adjustable Timing Range
-
Stock Motors (10.5T–25.5T): 30°–60°
-
Modified Motors (3.5T–8.5T): 20°–50°
Fine-tune your motor’s power delivery to suit your track, gearing, and driving style.
-
Smart Cooling for Hard Racing
-
Optimized Can Design
Improved airflow around the stator core keeps temperatures low during intense runs. -
Targeted End Plate Machining
-
Stock Motors (10.5T–21.5T): Extra machining for better heat dissipation.
-
Modified Motors (5.5T–8.5T): Special dust-resistant design blocks debris while still promoting airflow.
-
-
Rebuildable & Easy to Maintain
Modular motor construction makes cleaning, inspection, and part replacement fast and simple.
Top-Tier Materials for Peak Performance
-
High-Performance Stator Core
-
200°C Heat-Resistant Wire & Rotor
-
High-Strength Bearings
-
Gold-Plated Copper Solder Tabs
All components are built to survive and thrive in extreme racing conditions.
Timing Setup & Recommendations
-
Default Timing:
-
Stock: 40°
-
Modified: 30°
-
-
Adjust with Care:
-
Increasing timing = higher RPM, but also increased heat.
-
Always ensure your ESC is properly programmed and use appropriate gearing.
-
Monitor motor temps using a temp gun, LCD programmer, or Hobbywing WiFi Link App.
-
If temperatures rise too high, reduce timing or adjust the Final Drive Ratio (FDR) and retest.
Race-Ready & Certified
Compliant with major racing organizations worldwide:
-
IFMAR
-
ROAR
-
EFRA
-
BRCA
Also certified by RoHS, CE, and FCC standards for environmental and electronic safety.
Key Features at a Glance
- High Precision Hall Sensor
- Balanced Rotor for Smooth Operation
- Fully Rebuildable Design
- Advanced Cooling Structure
- Adjustable Mechanical Timing
- Lightweight Design (132g–161g)
- Heat-Resistant Components (Rated to 200°C)
- Competition Legal Worldwide
Built for Champions
The XeRun V10 G3 is more than just a motor — it's a tool for victory. Whether you're running Stock or Modified classes, on-road or off-road, this motor is built to help you perform at your best when it matters most.
Specifications
Scale: 1/12th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2
Relevant Parameters
KV Rating: 9450
LiPo Cells: 1S LIPO
No-load Current(A): 7.7A
Max. Power Output(W): 462
Amp at the Max. Power Out: 126
Size & Weight
O.D (mm): 35.9(1.41in)
Length (mm): 51.2(2.01in)
Shaft Diameter (mm): 3.17(0.125in)
Shaft Length (mm): 13.3(0.52in)
Weight:163(5.75oz)
Front Bearing:D9*D4*t4
Rear Bearing: D8*D3*t4
Other Parameters
Stock Rotor: 5-12.1
Timing: 20-50 Degrees(Adjustable)
Applications: Modified Class of 1/12th On-road Racing
3 Month Warranty
Type
-
- Brushed/Brushless
- Sensored/Sensorless
- Waterproof
-
- BL
- SL
- Waterproof (IP55)
Specifications
-
- Cont./Peak Current
- Input Voltage
- BEC Output
-
- 70A/200A
- 2-4S Lipo
- Switch mode 6V/7.4V/8.4V @5A
Wires & Connectors
-
- Input Wires
- Output Wires
- Input Connectors
- Output Connectors
-
- Red-14AWG-100mmx1,Black-14AWG-100mmx1
- Black-16AWG-80mmx3
- No
- 4.0mm Female plug
ESC Programing via
-
- LED Program Box
- LCD G2 Program Box
- LCD PRO
- OTA Programmer
- Program Port
-
- Supported
- Supported
- Supported
- Supported
- Throttle wires & yellow wire
Data Recording
-
- Extreme value
- Real-time Data
- Historical data (Graph)
-
- Supported
- Supported
- Supported
Firmware
-
- Firmware Upgrade
-
- Supported
Size & Weight
-
- Size
- Weight
-
- 38.5x30x8.4mm
- 35g(Without water cooling pipe )
Applications
-
- Applicable Boat
-
- Mini Mono,Mini ECO, Mini Hydro competition
SKU | TM0043 |
Barcode # | 9351634089161 |
Brand | Hobbywing |
Shipping Weight | 0.0163kg |
Shipping Width | 0.053m |
Shipping Height | 0.084m |
Shipping Length | 0.030m |
Shipping Cubic | 0.000132300m3 |
Unit Of Measure | ea |
